The Trax LT is the ultimate partner for urban adventures. Lightweight and powerful, this e-bike features a 500W motor and 480Wh battery for effortless commutes. Equipped with hydraulic disc brakes and a Bluetooth-enabled color display.
The Trax LT is the ultimate partner for urban adventures. Lightweight and powerful, this e-bike features a 500W motor and 480Wh battery for effortless commutes. Equipped with hydraulic disc brakes and a Bluetooth-enabled color display.
Troxus

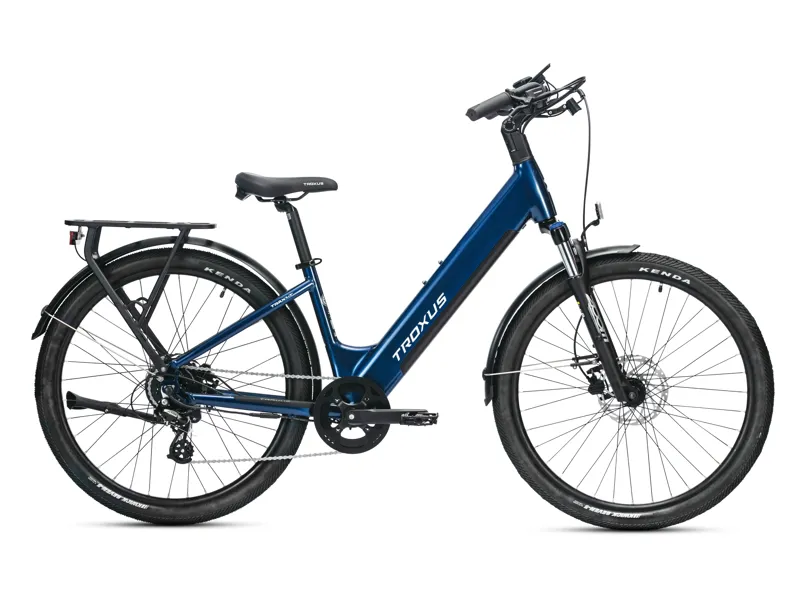

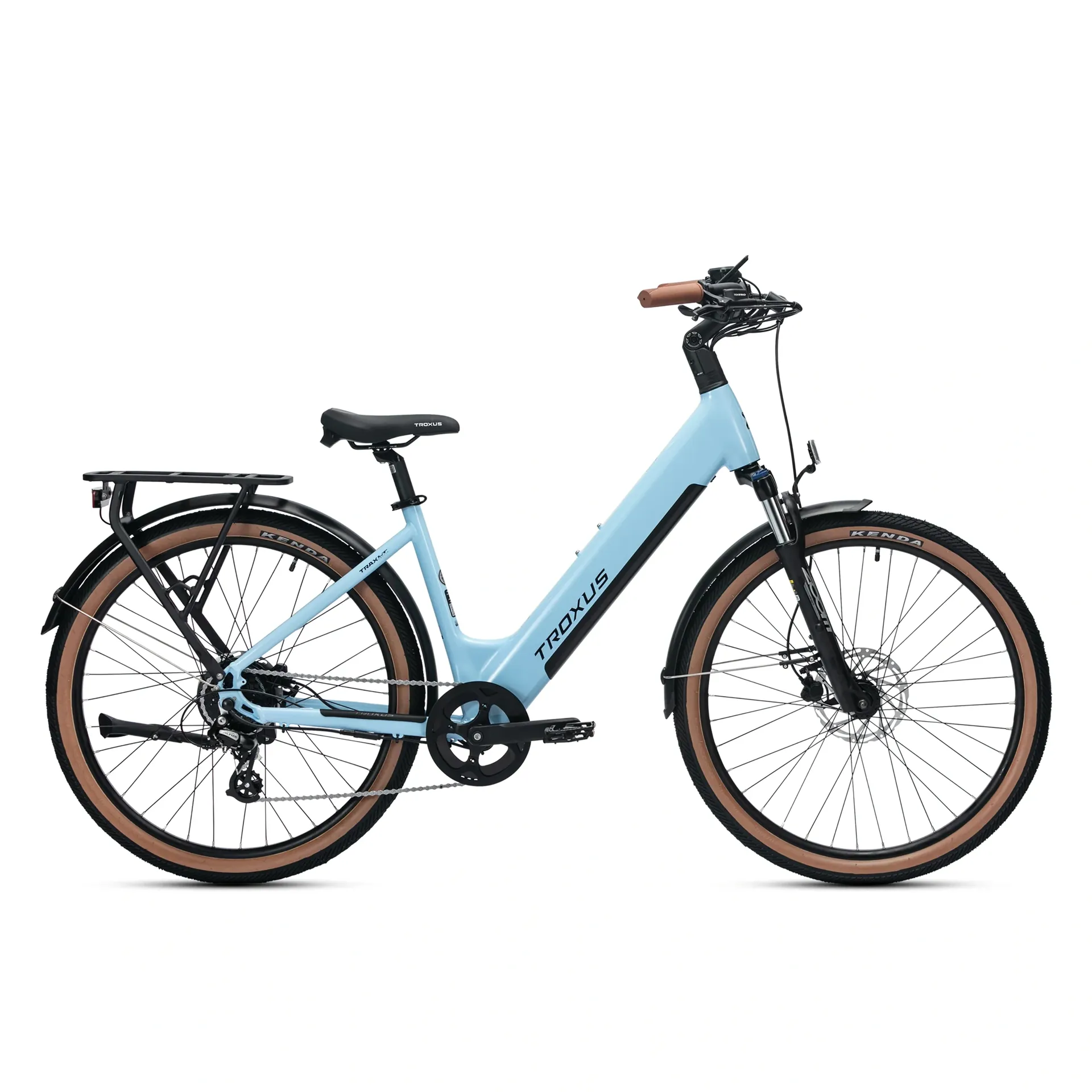

Troxus Trax LT Step-Thru eHybrid Bike

$1,349.00 $1,899.00 29% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax LT Step-Thru eHybrid Bike

Season:2025

Brand:Troxus

Code:TROXUSTRAXLTSTEPTHRU

The Trax LT is the ultimate partner for urban adventures. Lightweight yet remarkably powerful, this e-bike is built for effortless commutes and smooth, enjoyable rides.

Powered by a 500W peak power motor and a durable 480Wh battery, the Trax LT conquers hills and navigates busy streets with ease. For extended journeys, the bike offers the option to upgrade with an additional 240Wh battery. This lightweight e-bike is built for everyday city life, turning daily rides, errands, and weekend explorations into effortless fun.

Stylish, nimble, and comfortable, this bike makes every journey simpler and more enjoyable. The Trax LT is equipped with hydraulic disc brakes, a vibrant color display with Bluetooth connectivity, and versatile features to enhance every ride.

Features:

  • 500W peak power motor
  • Durable 480Wh battery
  • Optional 240Wh battery upgrade for extended range
  • Hydraulic disc brakes
  • Vibrant color display with Bluetooth connectivity
Technical Information
  • Motor
    Jiabo 48V 500w+ Peak Power Hub-Drive Motor, 50Nm Peak Torque
  • Battery
    UL-2271 Certified, Internal, Removable, Lithium Ion, 48V/10Ah (480Wh) with Samsung Cells, optional 240Wh piggy-back battery
  • Display
    Color display, Bluetooth, with multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0-5 level pedal assist
  • Charger
    2A, 100-240V input, 54.6V output
  • Lights
    Front light and rear light
  • Controller
    48Vx15A/12V
  • Frame
    Hydroformed aluminum step-thru lightweight frame
  • Fork
    Zoom front suspension fork, 65mm travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 44T, with alloy chainring and single chainguard, square taper, 170mm
  • Rear derailleur
    Shimano RD-M310-L, Altus, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano 8-speed
  • Bottom bracket
    Square taper sealed bearings, torque and cadence sensors included
  • Tires
    KENDA 27.5"x2.2"
  • Front hub
    Alloy, 36H, 100mm, 3/8" axle
  • Rear hub
    Jiabo 48V 500W, 20 MPH, 50Nm Peak Torque
  • Rims
    Alloy double wall, 27.5"x2.0" with eyelets
  • Spokes
    Stainless 14G front, 13G rear
  • Brakes
    Tektro hydraulic, with brake sensors
  • Rotors
    180mm / 180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide
  • Seat post
    Alloy, 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm with quick release
  • Stem
    Zoom alloy, forged, adjustable, TDS-D634B-8/FOV, ext. 90mm, ICR type with internal cable routing
  • Handlebar
    Zoom alloy, 31.8mmx650mm wide, 35º backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    9/16" alloy platform with reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm, with internal cable routing
  • Rack
    Lightweight alloy rear model, MIK-compatible rear rack
  • Fender
    Plastic, 27.5"
  • Kickstand
    Adjustable side kickstand
Sizing Information
Troxus Trax LT Step-Thru E-Bike geometry diagram
Measurement Small (15.5") Medium (17.5")
Wheel Size 27.5"x2.2" 27.5"x2.2"
A - Seat Tube Length 394 mm 445 mm
B - Seat Tube Angle 72.5° 72.5°
C - Head Tube Length 150 mm 150 mm
D - Head Tube Angle 68° 68°
E - Effective Top Tube Length 611 mm 626 mm
F - Bottom Bracket Height 291 mm 291 mm
G - Bottom Bracket Drop 60 mm 60 mm
H - Chainstay Length 455 mm 455 mm
I - Fork Offset 44 mm 44 mm
J - Wheelbase 1143 mm 1158 mm
K - Frame Reach 410 mm 425 mm
L - Frame Stack 640 mm 640 mm
Fork Travel 65 mm 65 mm
Fork Height 490 mm 490 mm
