The RS5 delivers the X-LAB riding experience in a versatile, approachable form, featuring a durable X6 alloy frame, Shimano 105, and integrated power.
The RS5 delivers the X-LAB riding experience in a versatile, approachable form, featuring a durable X6 alloy frame, Shimano 105, and integrated power.
X-Lab

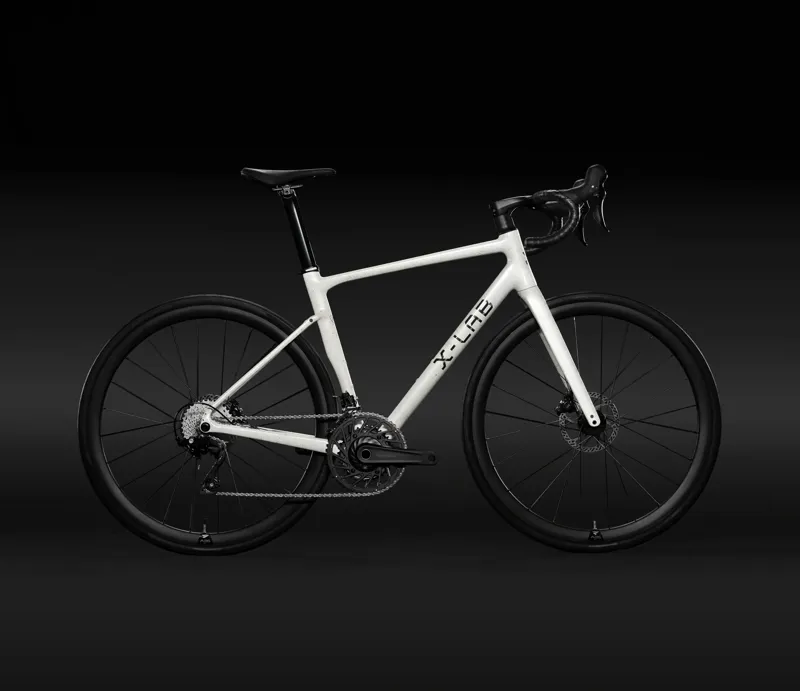

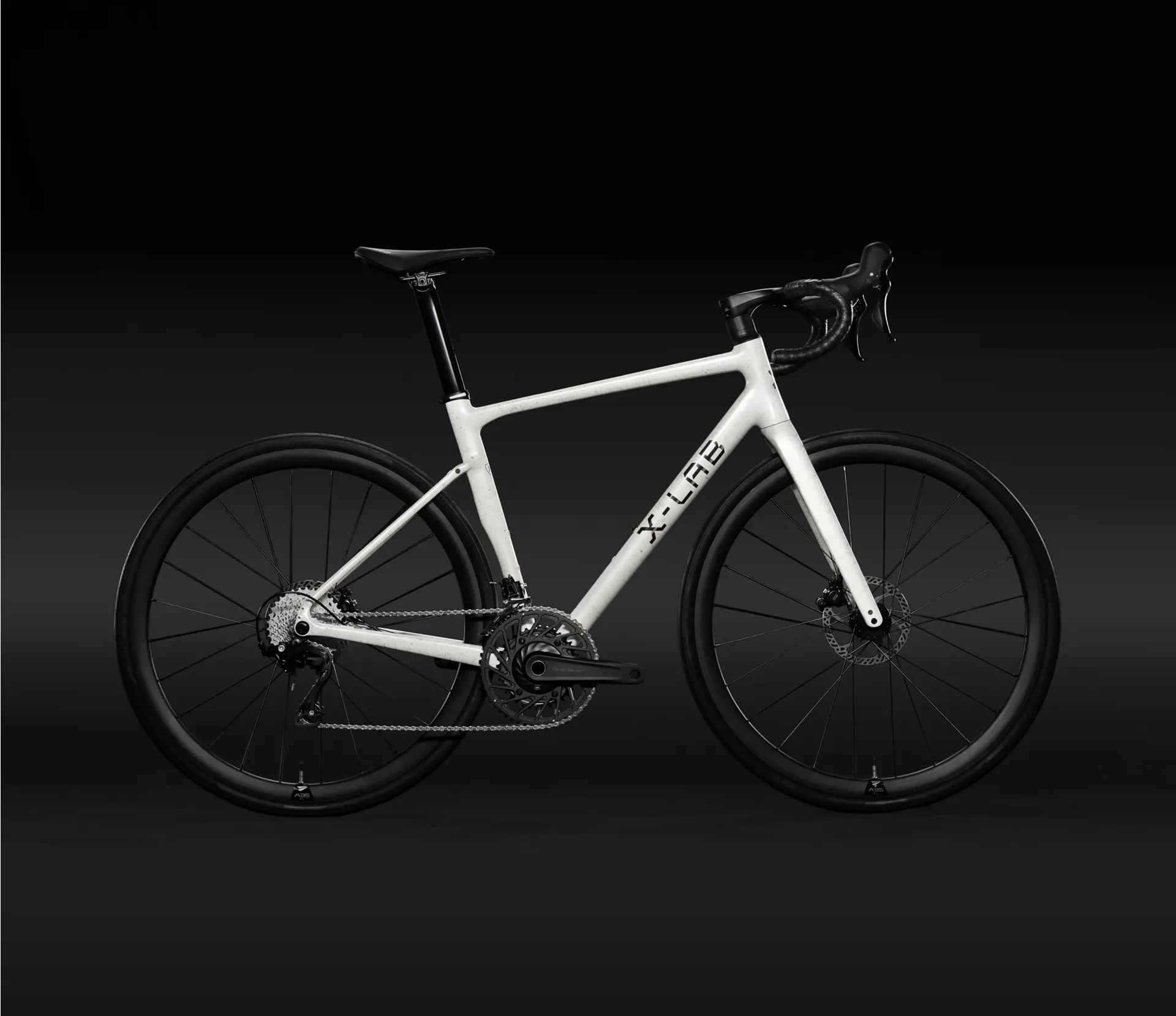

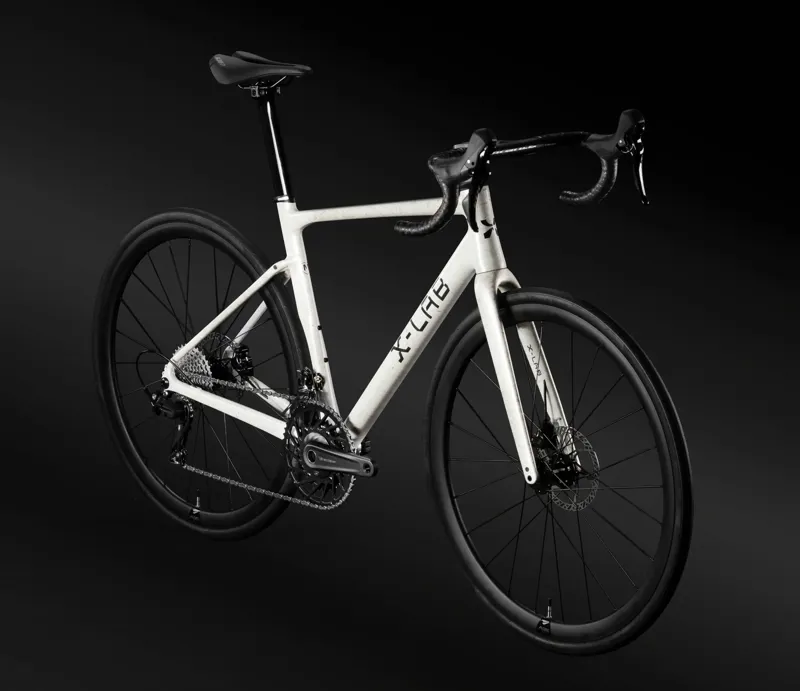

X-Lab RS5 Wavebreaker Road Bike Large in White

$1,399.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

X-Lab RS5 Wavebreaker Road Bike Large in White

Season:2026

Brand:X-Lab

Code:6939886204063

The RS5 delivers the X-LAB riding experience in a versatile and approachable form. It offers balanced comfort and function for wherever the road takes you.

Built with durable X6 aluminum alloy and a semi-integrated cockpit, the RS5 provides reliable performance, confident handling, and lasting comfort. Whether discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding. The bike brings X-LAB's fluent design and engineering language to an alloy platform, with clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.

A precision-engineered alloy frame delivers the durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and everything in between. Branta’s in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without requiring the addition of costly extras.

Features:

  • X6 Alloy Frame with Carbon Fork
  • 38mm tire clearance
  • Shimano 105 performance
  • Integrated dual-sided power meter and Apple Find My anti-theft technology

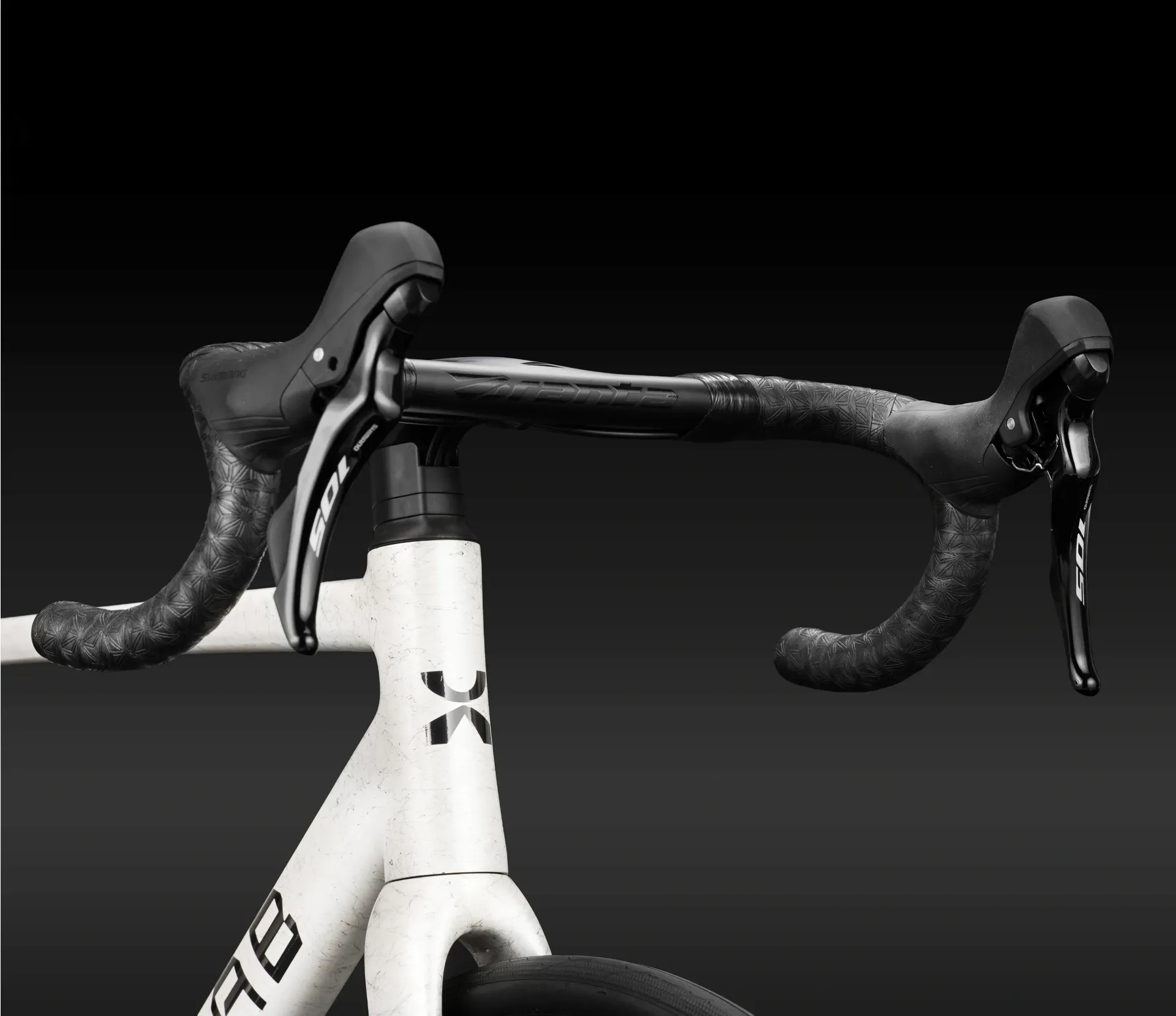

  • Semi-integrated alloy cockpit
  • Aero carbon seatpost
  • Weight: 9.54 kg (21.03 lbs) for size L
Technical Information
  • Frame
    XDS X6 Alloy, UDH compatible
  • Fork
    XDS Carbon, 100x12mm thru-axle
  • Handlebar / Stem
    Branta alloy integrated
  • Seatpost
    XDS carbon, aero profile
  • Rear derailleur
    Shimano 105 RD-R7100
  • Front derailleur
    Shimano 105 FD-R7100
  • Shifters
    Shimano 105 ST-R7120
  • Brakes
    Shimano 105 BR-R7170
  • Cassette
    12-speed, 11-34T
  • Crankset
    Branta alloy power meter, 52-36T, 24mm steel spindle
  • Bottom bracket
    BSA 24mm
  • Rotors
    Branta PN28, 160mm front and rear
  • Chain
    SUMC SX12
  • Wheelset
    Branta A35 SL, alloy rims
  • Tires
    Branta R332, 700x32C, 60TPI
  • Max tire clearance
    38C
  • Saddle
    Branta R302, steel rails
  • Weight
    9.54 kg (21.03 lbs) (Size L)
  • Weight limit
    242 lbs (110 kg)
  • Size options
    XS, S, M, L, XL
Sizing Information

Rider Height

Size Rider Height (cm) Rider Height (ft/in)
XS 148 cm – 158 cm 4' 10" - 5' 2"
S 158 cm – 168 cm 5' 2" - 5' 6"
M 168 cm – 176 cm 5' 6" - 5' 9"
L 176 cm – 183 cm 5' 9" - 6' 0"
XL 183 cm – 191 cm 6' 0" - 6' 3"

Basic Geometry

Measurement XS S M L XL
Seat Tube Length (mm) 440mm 480mm 510mm 540mm 560mm
Top Tube Length (mm) 515mm 530mm 548mm 568mm 585mm
Head Tube Length (mm) 115mm 135mm 155mm 180mm 205mm
Seat Tube Angle 75° 74° 74° 73° 73°
Head Tube Angle 71° 72° 73° 73° 73°
Chainstay (mm) 420mm 420mm 420mm 420mm 420mm
Wheelbase (mm) 999mm 1001mm 1004mm 1018mm 1033mm
BB Drop (mm) 75mm 75mm 75mm 75mm 75mm
Stack (mm) 530mm 553mm 575mm 599mm 623mm
Reach (mm) 371mm 375mm 381mm 387mm 394mm
Front Center (mm) 590mm 592mm 596mm 609mm 624mm
Fork Length (mm) 386mm 386mm 386mm 386mm 386mm
Stand Over (mm) 725mm 758mm 784mm 810mm 831mm

Component Geometry

Component XS S M L XL
Fork Rake/Offset (mm) 50mm 50mm 50mm 50mm 50mm
Trail (mm) 71mm 65mm 58mm 58mm 58mm
Handlebar (mm) 380mm 380mm 400mm 400mm 420mm
Stem (mm) 80mm 80mm 100mm 100mm 100mm
Crankset (mm) 165mm 165mm 170mm 170mm 172.5mm
Seat Post (mm) 300mm 300mm 300mm 400mm 400mm
