Wheel size
27.5"x2.2"
Max speed
Up to 20 MPH on throttle / Up to 28 MPH on pedal assist
Range
Up to 55 miles per charge / Up to 80+ miles w/extra battery
Weight limit
285 lbs
Net weight
57 lbs
Motor
Jiabo® 48V 500W+ peak power hub-drive motor, 50Nm peak torque

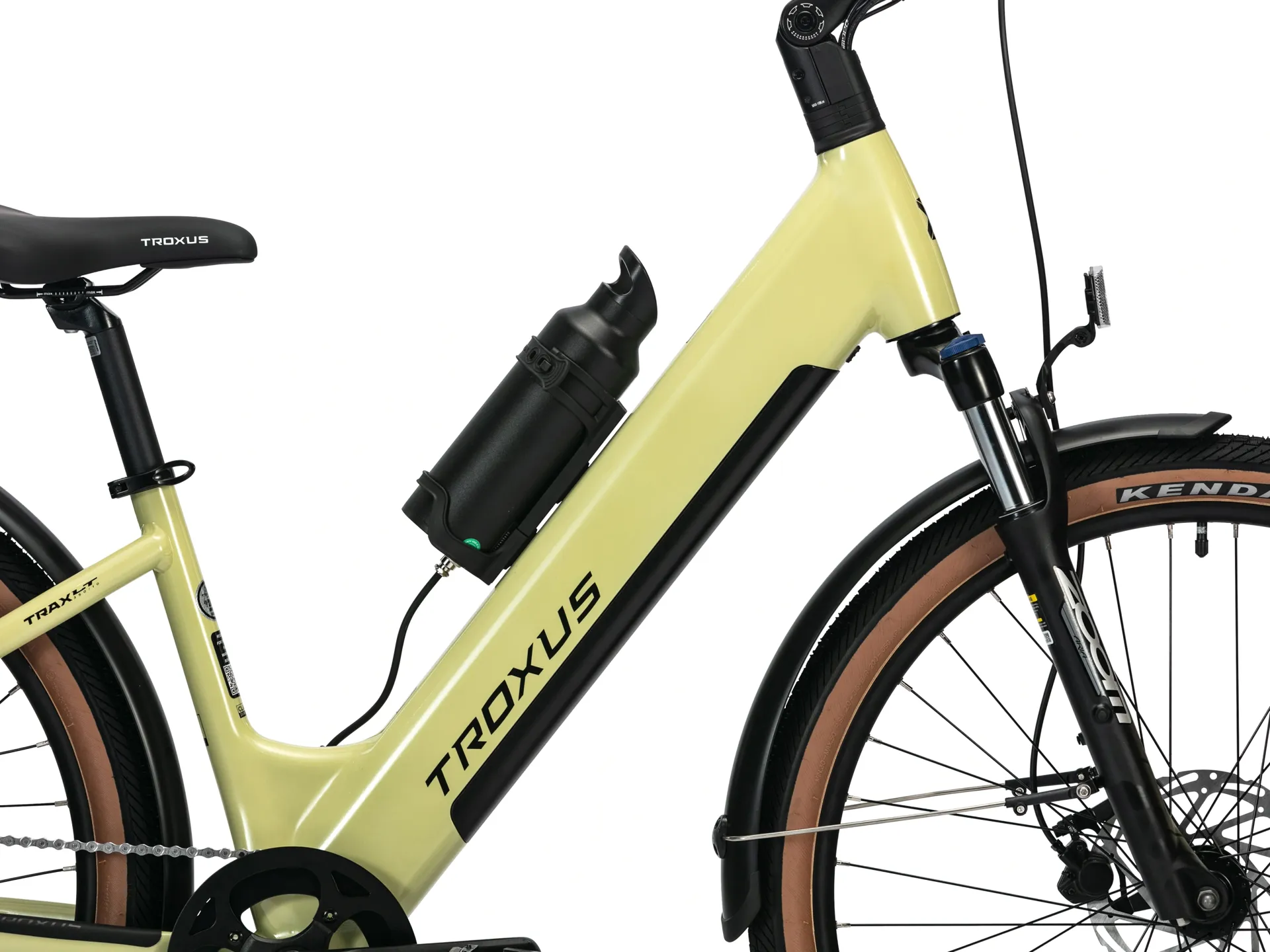

Battery
UL-2271 certified, internal, removable, lithium ion, 48V/10Ah (480Wh) with Samsung® cells, w/ option for additional 240Wh piggy-back battery

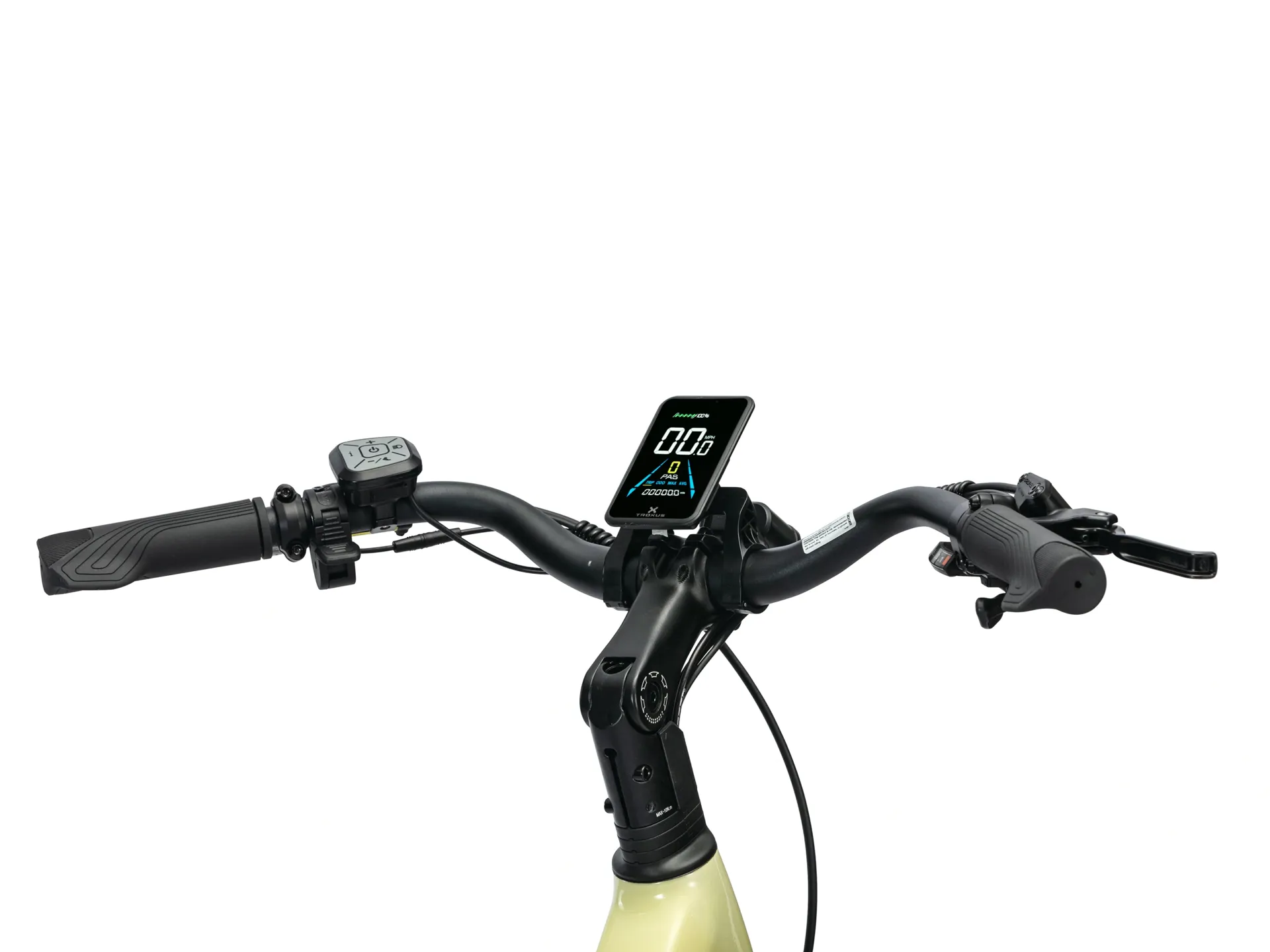

Display
Color display, Bluetooth, w/ multi-function remote
Sensor
Switchable torque and cadence sensor modes
Pedal assist
0~5 level pedal assist
Charger
2A / 100-240V input / 54.6V output
Lights
Front light & rear light
Controller
48Vx15A/12V
Frame
Hydroformed aluminum step-thru lightweight frame
Fork
Zoom® front suspension fork, 65mm travel
Chain
KMC® 1/2"x3/32"
Crankset
Aluminum, 44T, w/ alloy chainring & single chainguard, square taper, 170mm
Rear derailleur
Shimano® RD-M310-L, Altus, 8-speed
Cassette
Shimano® 8-speed, 12-32T
Shifter
Shimano® 8-speed
Bottom bracket
Square taper sealed bearings, torque & cadence sensors included
Tires
KENDA® 27.5"x2.2"
Front hub
Alloy, 36H, 100mm, 3/8" axle

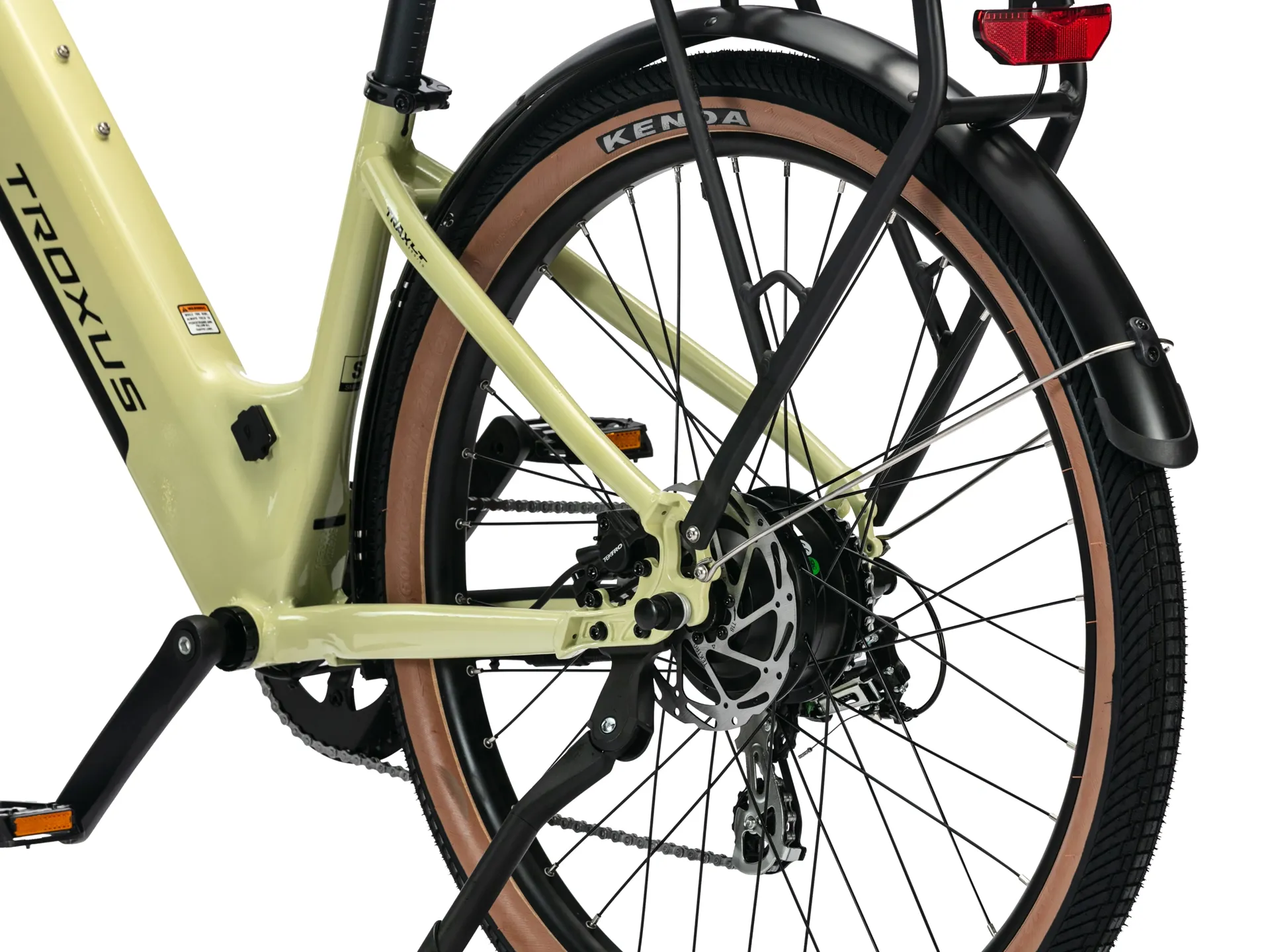

Rear hub
Jiabo® 48V 500W, 50Nm peak torque
Rims
Alloy double wall, 27.5"x2.0" w/ eyelets
Spokes
Stainless 14G front / 13G rear

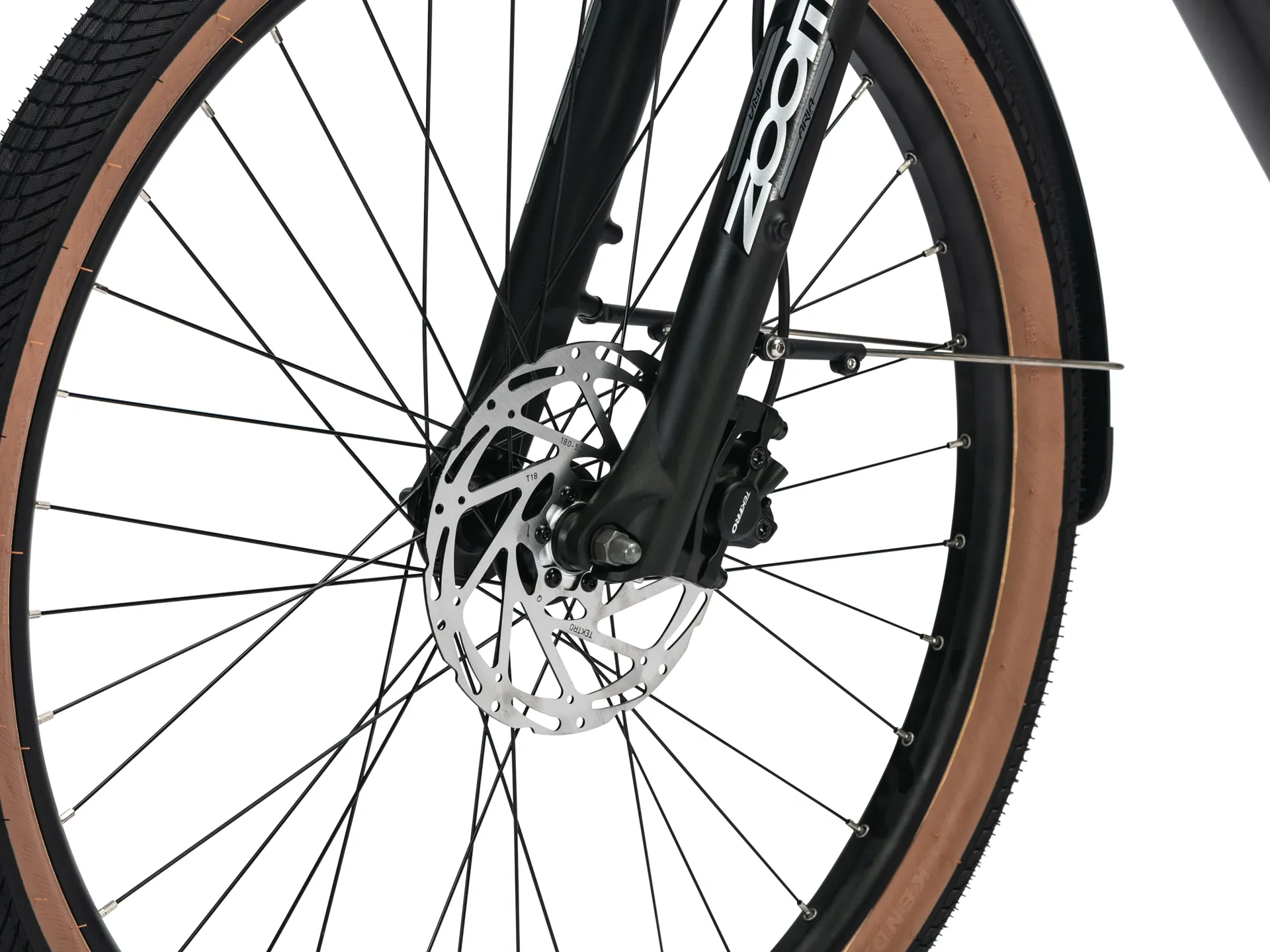

Brakes
Tektro® hydraulic, w/ brake sensors
Rotors
180mm / 180mm
Saddle
DDK DE-430 comfort, 200mm wide
Seat post
Alloy, 30.9x400mm, adjustable
Seat post clamp
Alloy, 35mm w/ quick release
Stem
Zoom® alloy, forged, adjustable, TDS-D634B-8/FOV, ext. 90mm, ICR type w/ internal cable routing
Handlebar
Zoom® alloy, 31.8mmx650mm wide, 35º backsweep
Grips
Ergonomic comfort
Pedals
9/16" alloy platform with reflectors
Headset
Gyneyea T192KS-56, threadless 57/56mm, w/ internal cable routing

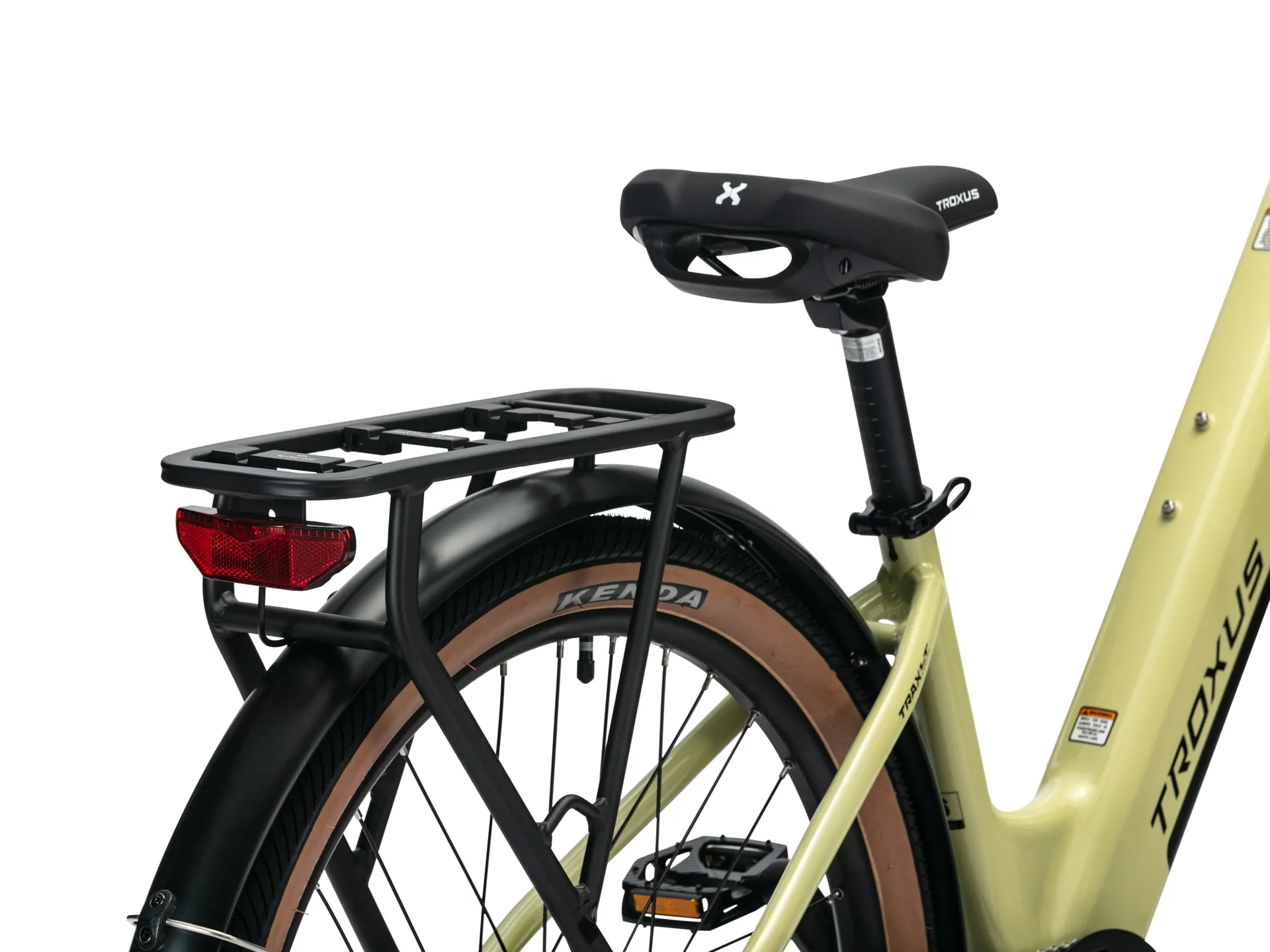

Rack
Lightweight alloy rear model / MIK-compatible rear rack
Fender
Plastic, 27.5"
Kickstand
Adjustable side kickstand
