The Troxus Trax Plus looks like a city bike and rides like an eBeast. Featuring a 500W motor, 720Wh battery, and hydraulic disc brakes for comfort.
The Troxus Trax Plus looks like a city bike and rides like an eBeast. Featuring a 500W motor, 720Wh battery, and hydraulic disc brakes for comfort.
Troxus

Troxus Trax Plus Step-Thru 500W/15Ah Small in Chalk

$2,299.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Troxus Trax Plus Commuter E-Bike 500W/15Ah Medium in Chalk Troxus Trax Plus Commuter E-Bike 500W/15Ah Small in Metallic Red
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax Plus Step-Thru 500W/15Ah Small in Chalk

Season:2026

Brand:Troxus

Code:10870100303

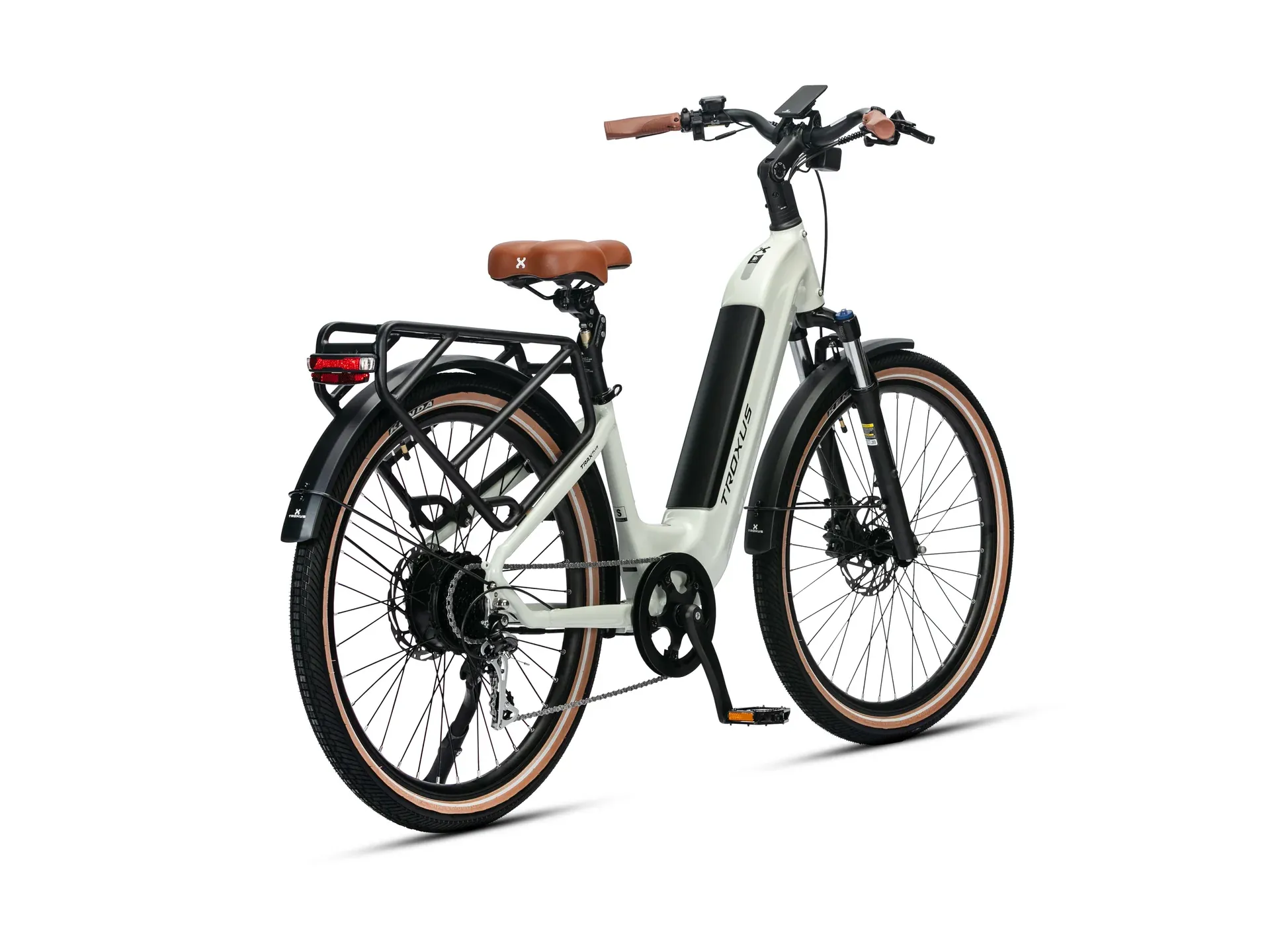

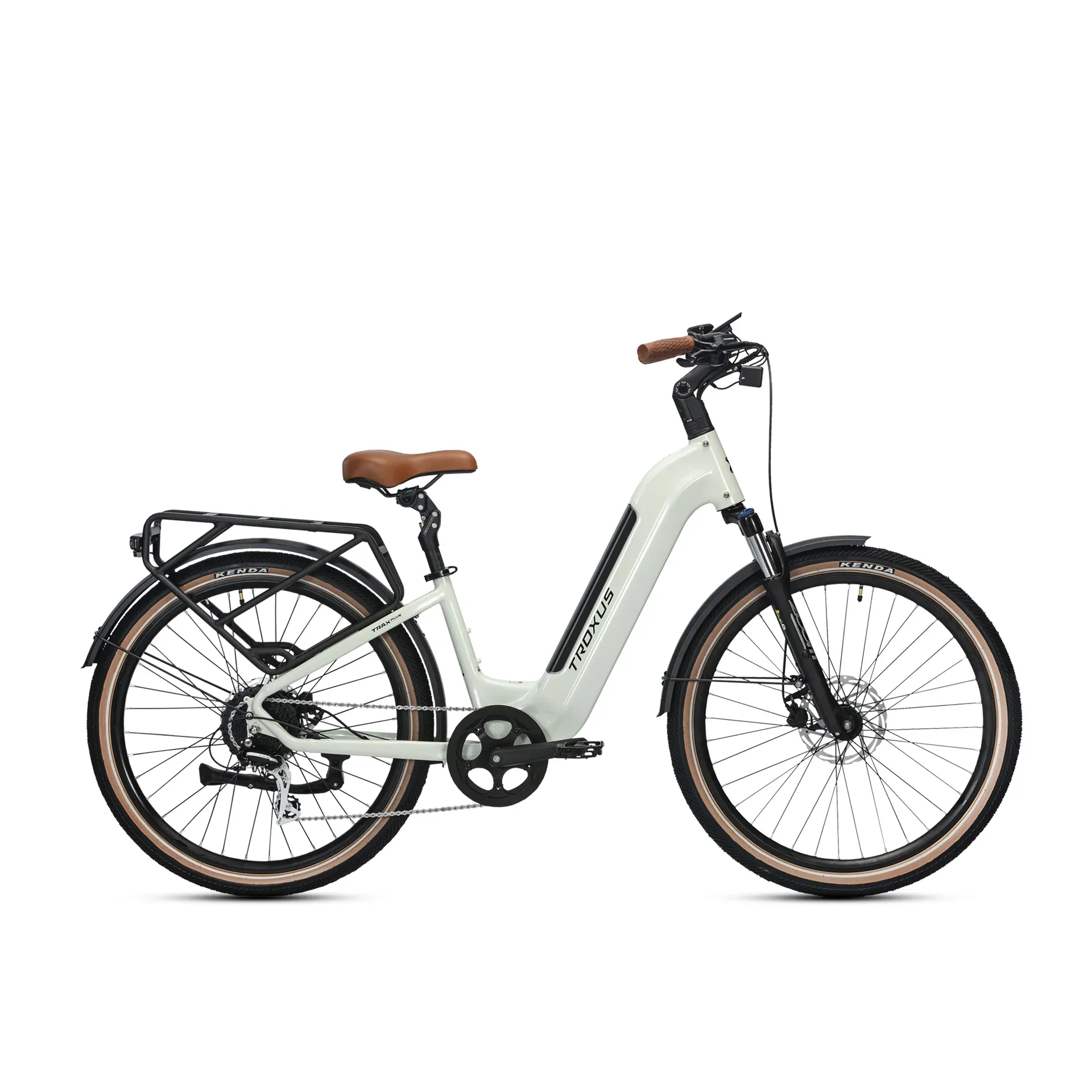

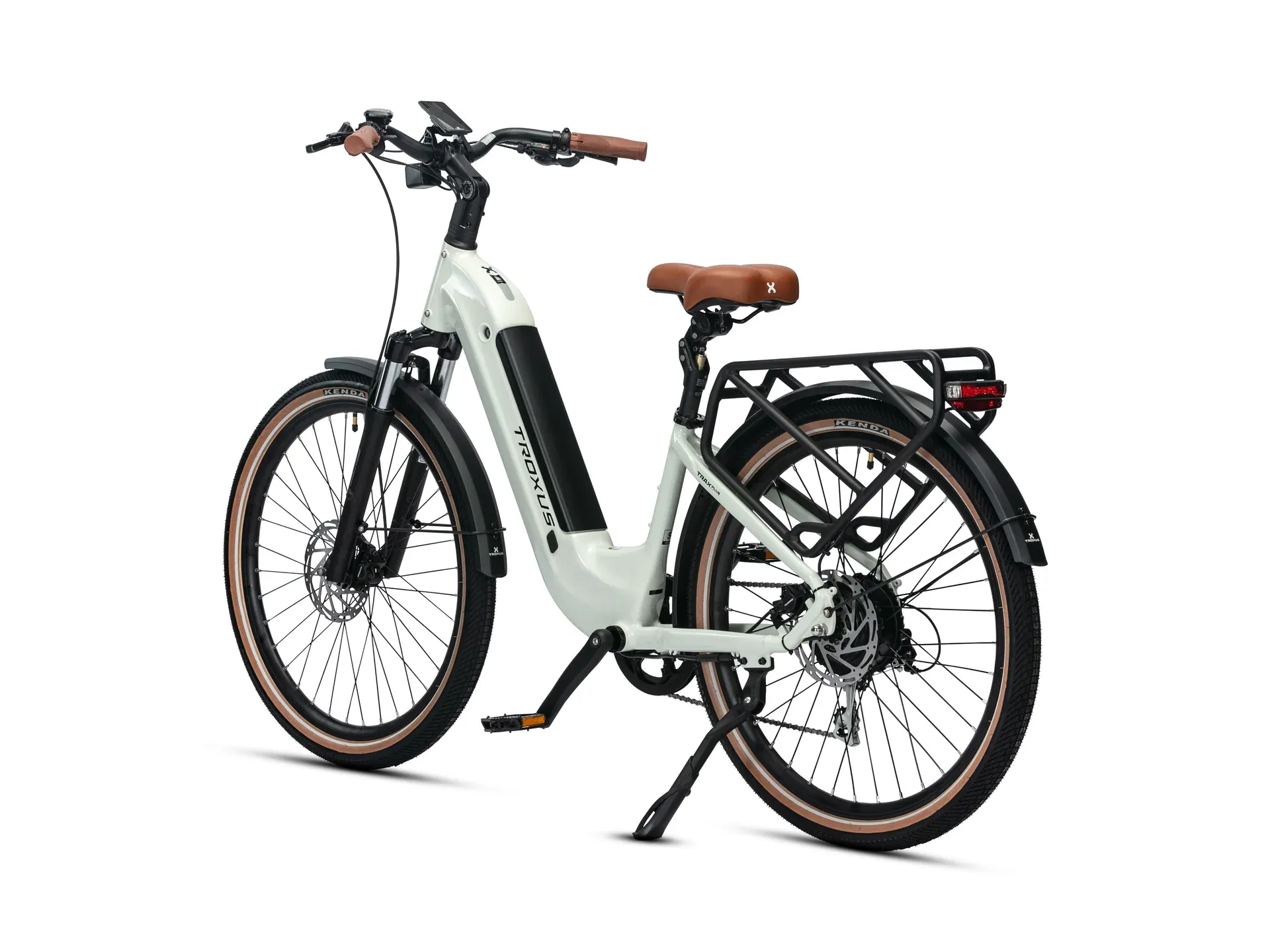

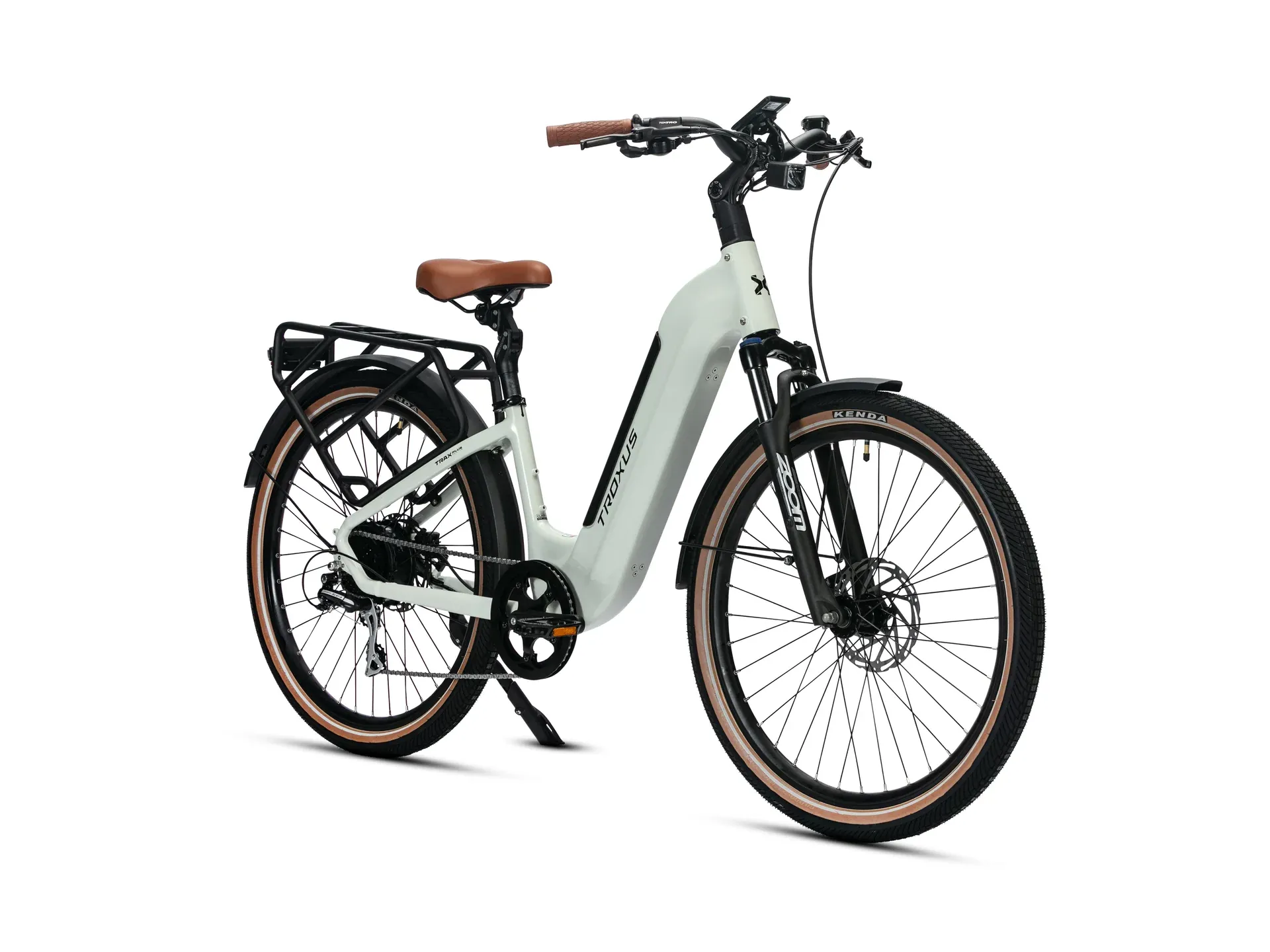

The Troxus Trax Plus looks like a city bike and rides like an eBeast.

Get ready to conquer the city and tackle steep hills with ease. The 500W rear hub motor delivers impressive power, giving you a smooth and effortless ride every time, regardless of terrain.

Enjoy the freedom of longer rides without constantly worrying about recharging. The 720Wh internal battery provides an extended range, so you can explore more and worry less. Stay in control with switchable torque or cadence sensor modes and hydraulic disc brakes. Effortlessly adapt to changing conditions while enjoying a safe, smart, and reliable ride.

Features:

  • 500W rear hub motor
  • 720Wh internal battery
  • Switchable torque or cadence sensor modes
  • Hydraulic disc brakes
Technical Information
  • Motor

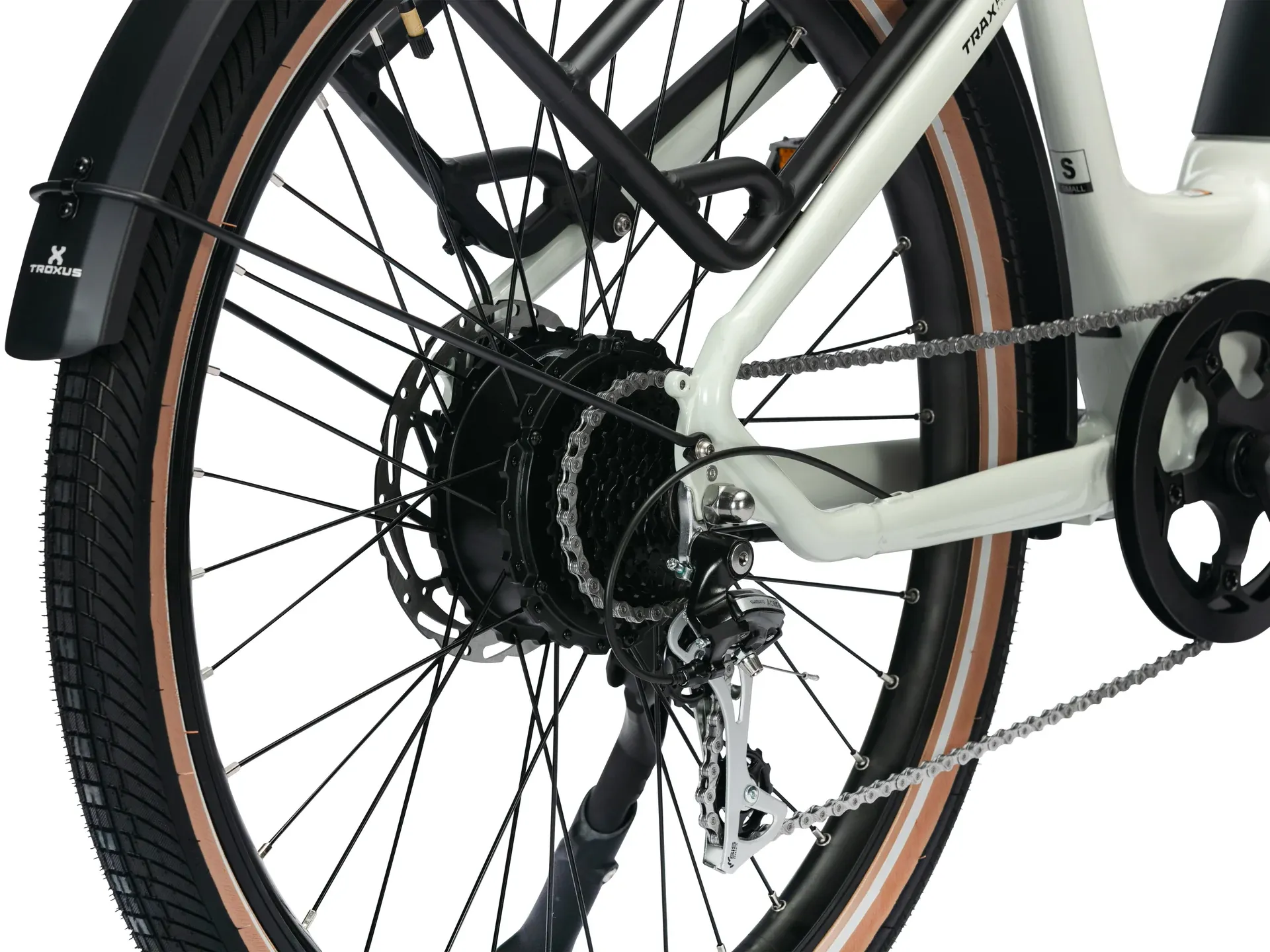

    Ananda 48V/500W Hub-Drive, 65Nm Max. Torque
  • Battery
    UL-2271 Certified, Internal, Removable, Lithium Ion, 48V/15Ah (720Wh) with Samsung Cells

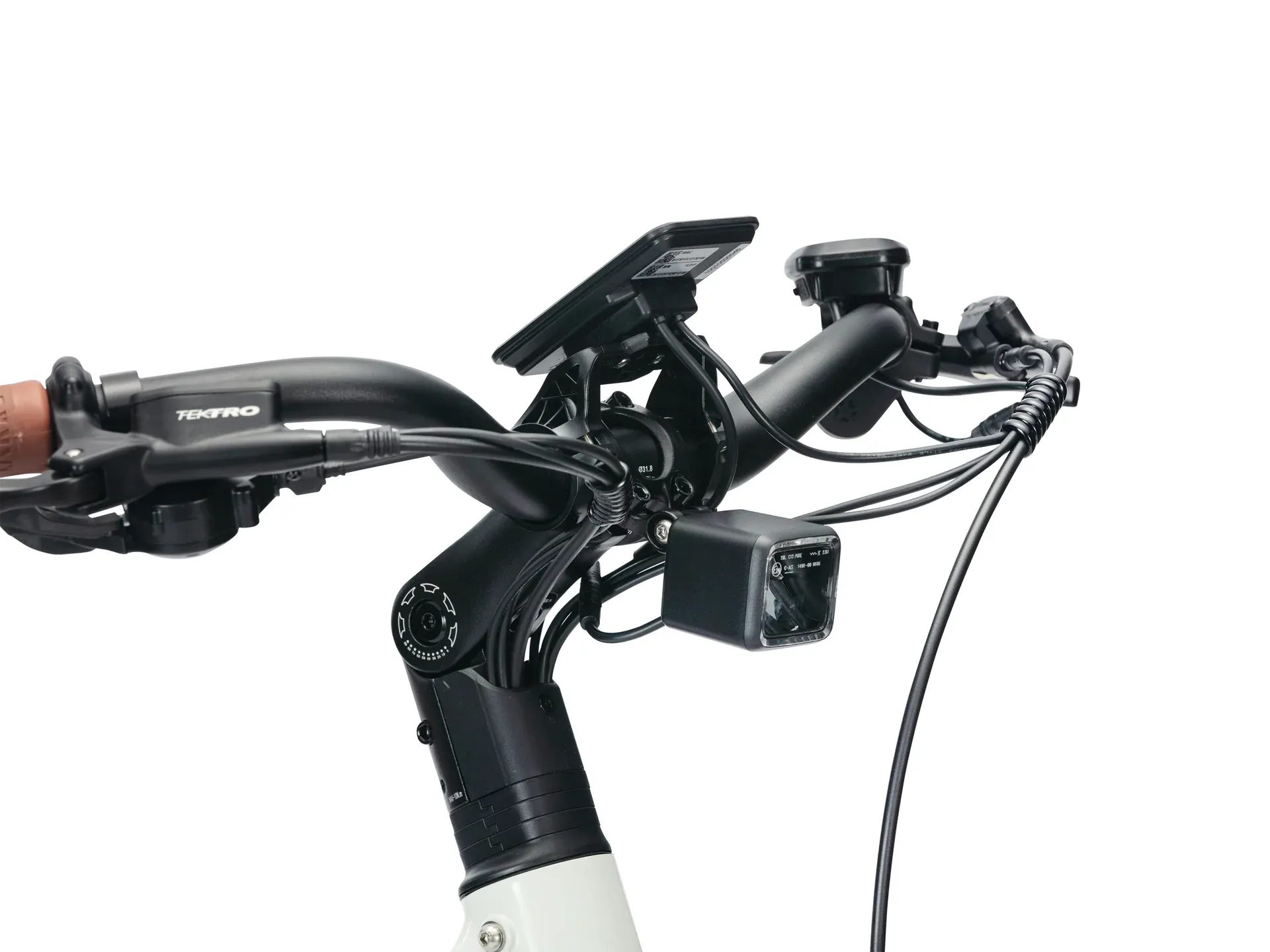

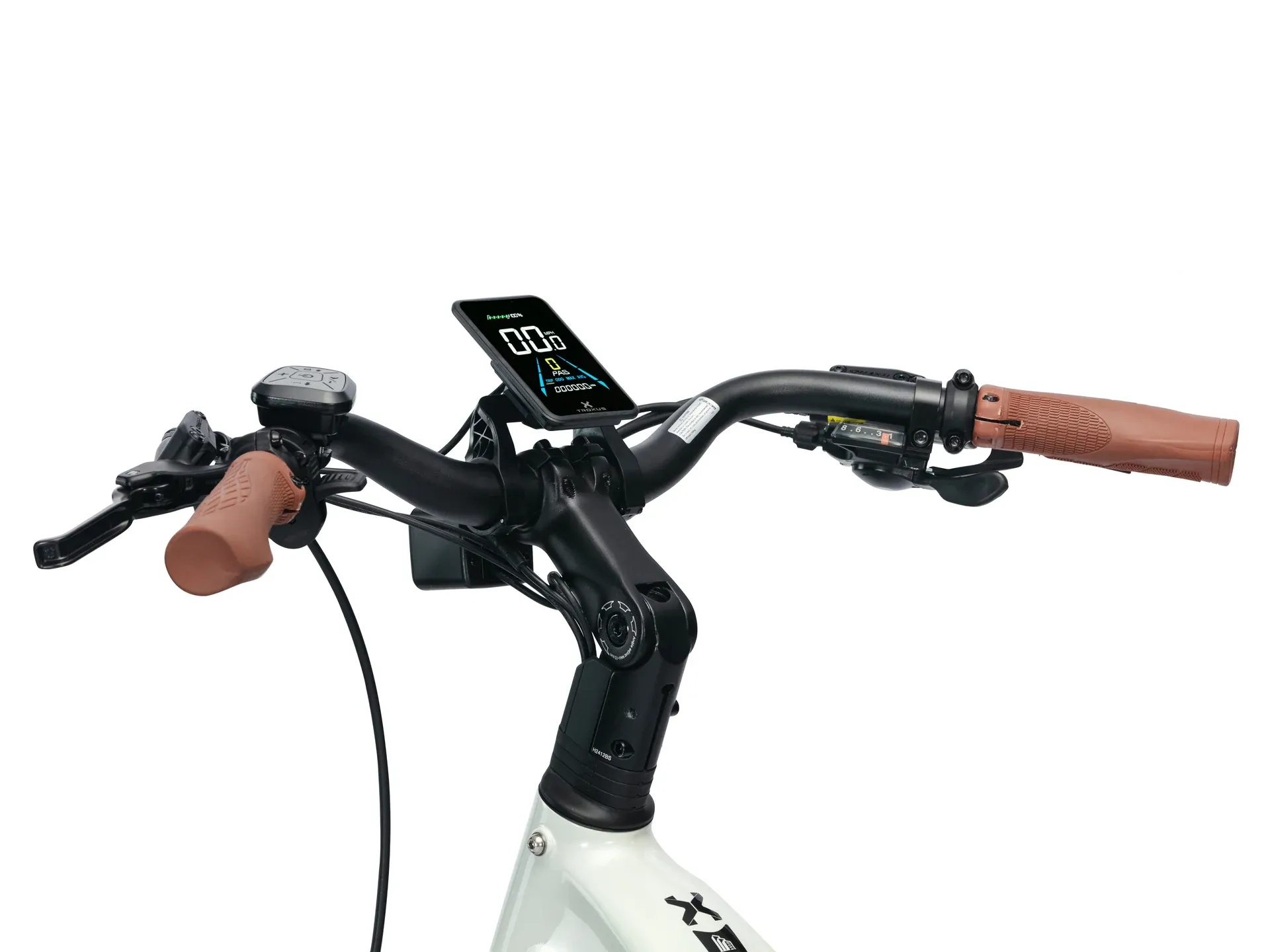

  • Display
    Color Display, Bluetooth, with Turn Light Signals and Multi-Function Remote
  • Throttle
    Thumb Throttle
  • Sensor
    Switchable Torque and Cadence Sensor Modes
  • Pedal Assist
    0-5 Level
  • Charger
    2A, 100-240V Input, 54.6V Output
  • Lights
    80 Lux Front Light, Rear Light with Turn and Hazard Signals
  • Controller
    48V/18A/12V
  • Frame
    Hydroformed Aluminum
  • Fork
    Zoom Front Suspension, 65mm Travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 46T, with Single Alloy Chainguard, Square Taper, 170mm

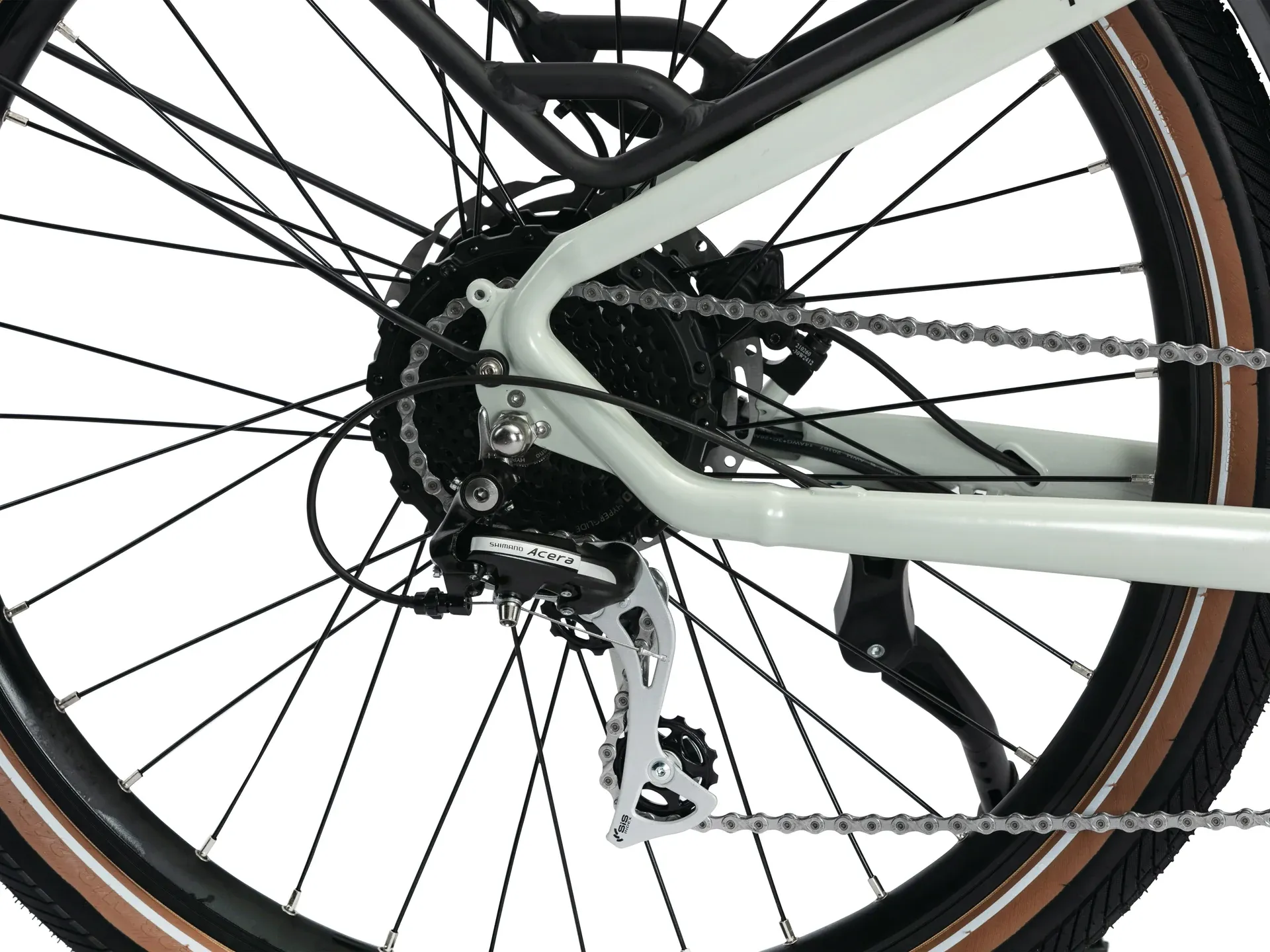

  • Rear Derailleur
    Shimano Acera, 8-Speed
  • Cassette
    Shimano 8-Speed, 12-32T
  • Shifter
    Shimano 8-Speed
  • Bottom Bracket
    Square Taper Sealed Bearings, Torque and Cadence Sensors
  • Tires
    KENDA 27.5"x2.2", Reflective Stripes, Puncture-Resistant, E-50 Rated
  • Front Hub
    Alloy, 36H, 100mm, 3/8" Axle with Nuts
  • Rims
    Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", with Eyelets
  • Spokes
    Stainless 13G Front / 12G Rear

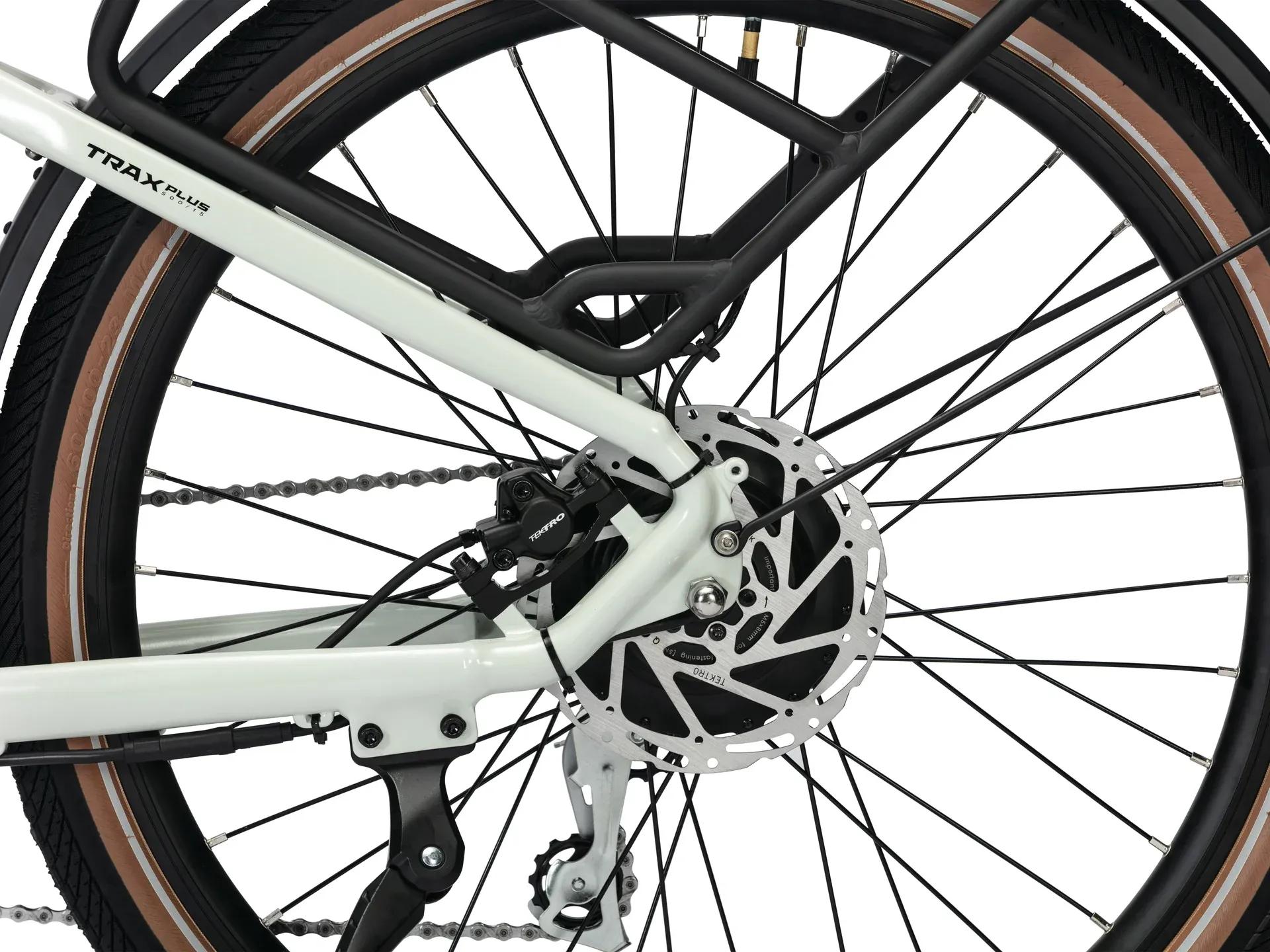

  • Brakes
    Tektro Hydraulic with Brake Sensors
  • Rotors
    180mm Front / 180mm Rear

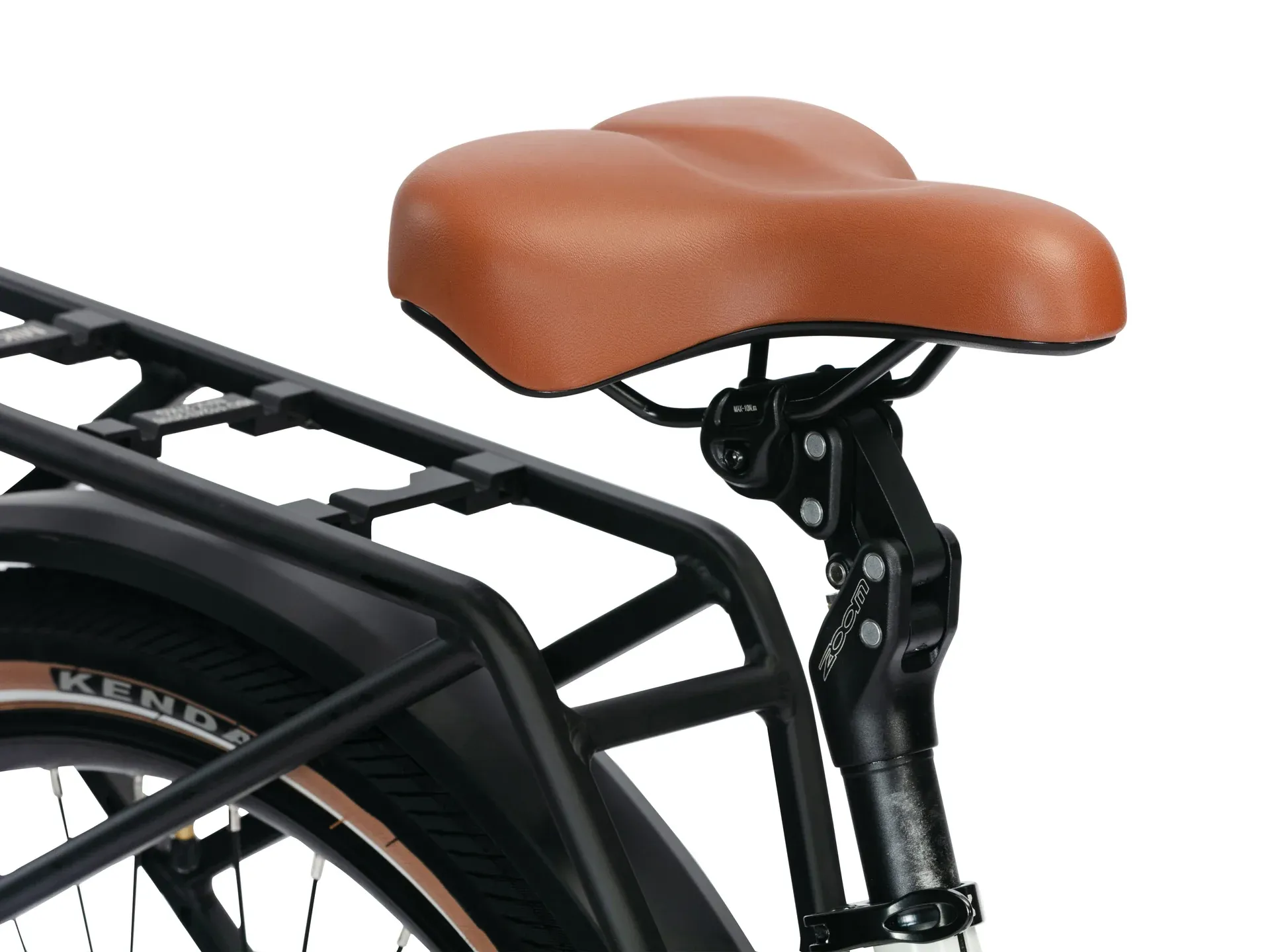

  • Saddle
    DDK Comfort, 200mm Wide
  • Seat Post
    Alloy with Suspension, 30.9x400mm, Adjustable
  • Seat-Post Clamp
    Alloy, 35mm with Quick Release
  • Stem
    Zoom Alloy, Forged, Adjustable, 90mm Extension, Internal Cable Routing
  • Handlebar
    Zoom Alloy, 31.8mmx620mm, 35-degree Backsweep
  • Grips
    Ergonomic Comfort
  • Pedals
    Alloy, 9/16" Axles with Reflectors
  • Headset
    Gyneyea, Threadless 57/56mm, Internal Cable Routing
  • Max Speed
    20 MPH (Throttle) / 28 MPH (Pedal Assist)
  • Range
    Up to 70 miles per charge
  • Weight Limit
    383 lbs
  • Net Weight
    68.5 lbs

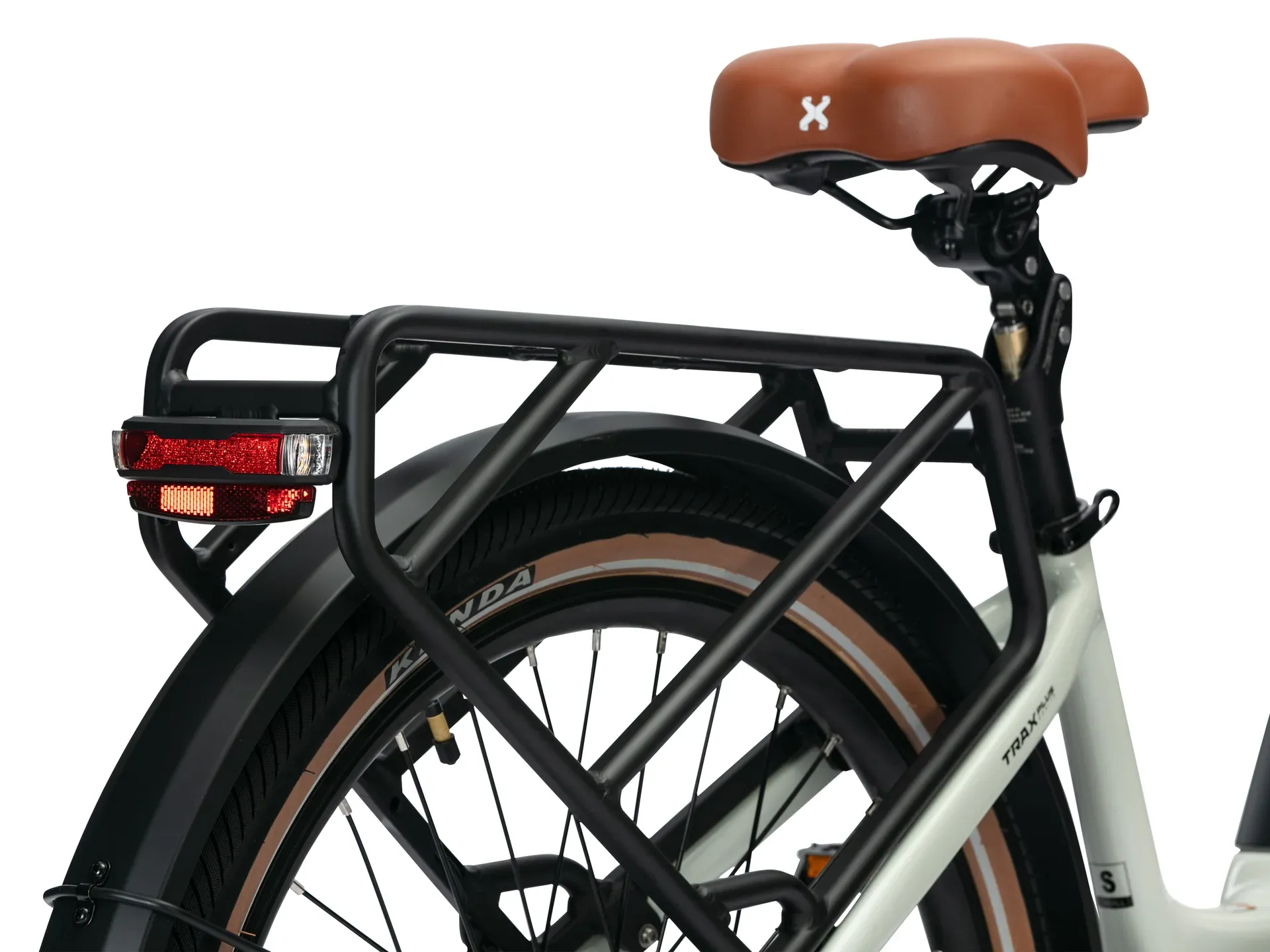

  • Rack
    Alloy Rear, MIK-Compatible
  • Fenders
    Alloy, 27.5", Full coverage
  • Kickstand
    Adjustable Side
Sizing Information
Model Recommended Height
Small Step-Thru 5'0" - 5'7" (153 - 171 cm)
Medium Step-Thru 5'6" - 6'2" (168 - 185 cm)
Large Step-Over 5'8" - 6'4" (173 - 193 cm)
