The Xlab ST5+ is a versatile electric bike designed for commuting and everyday riding, featuring a mid-drive motor and integrated electric system.
The Xlab ST5+ is a versatile electric bike designed for commuting and everyday riding, featuring a mid-drive motor and integrated electric system.
Xlab

Xlab ST5+ MD in Nightfall Black

$1,999.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

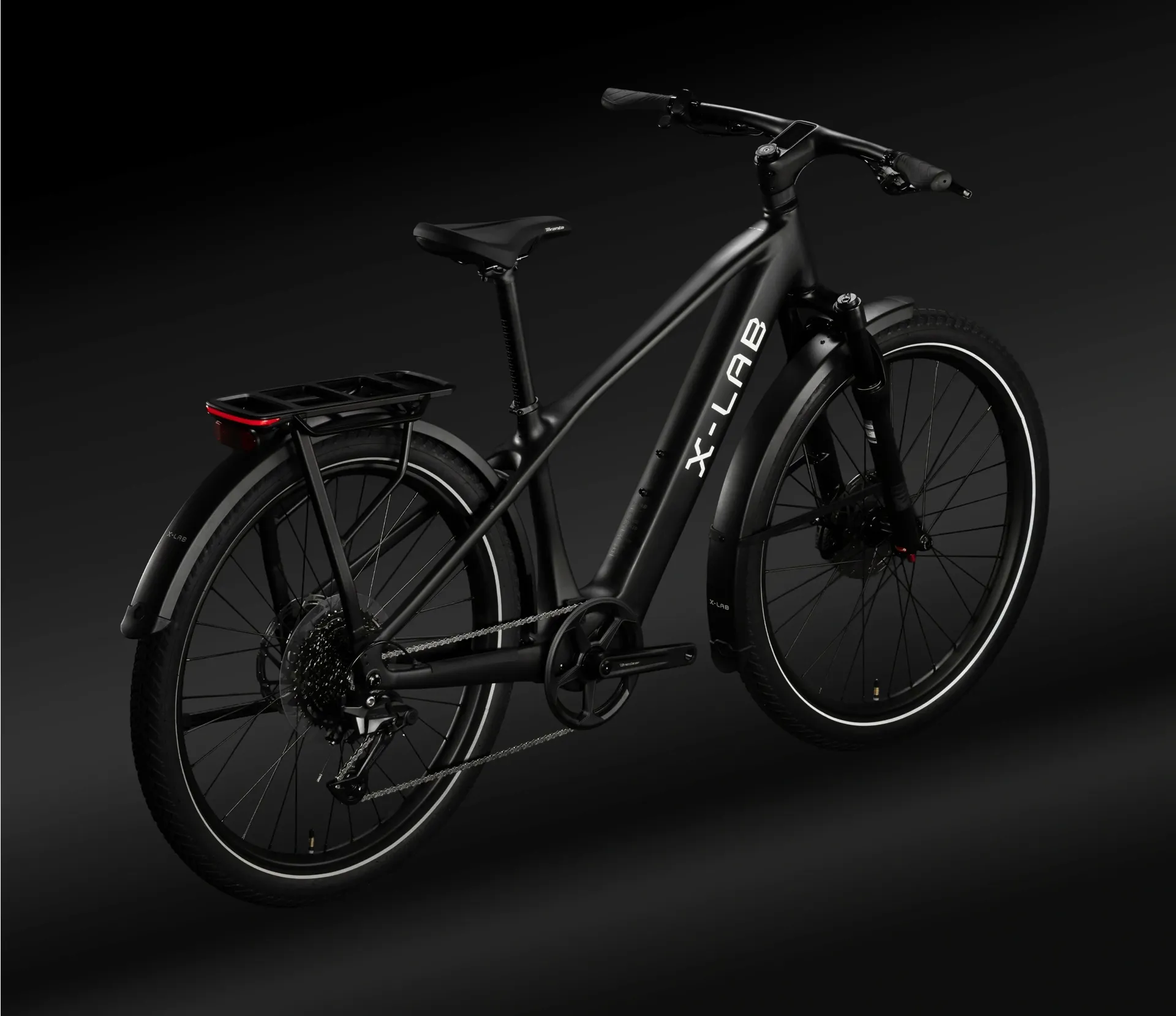

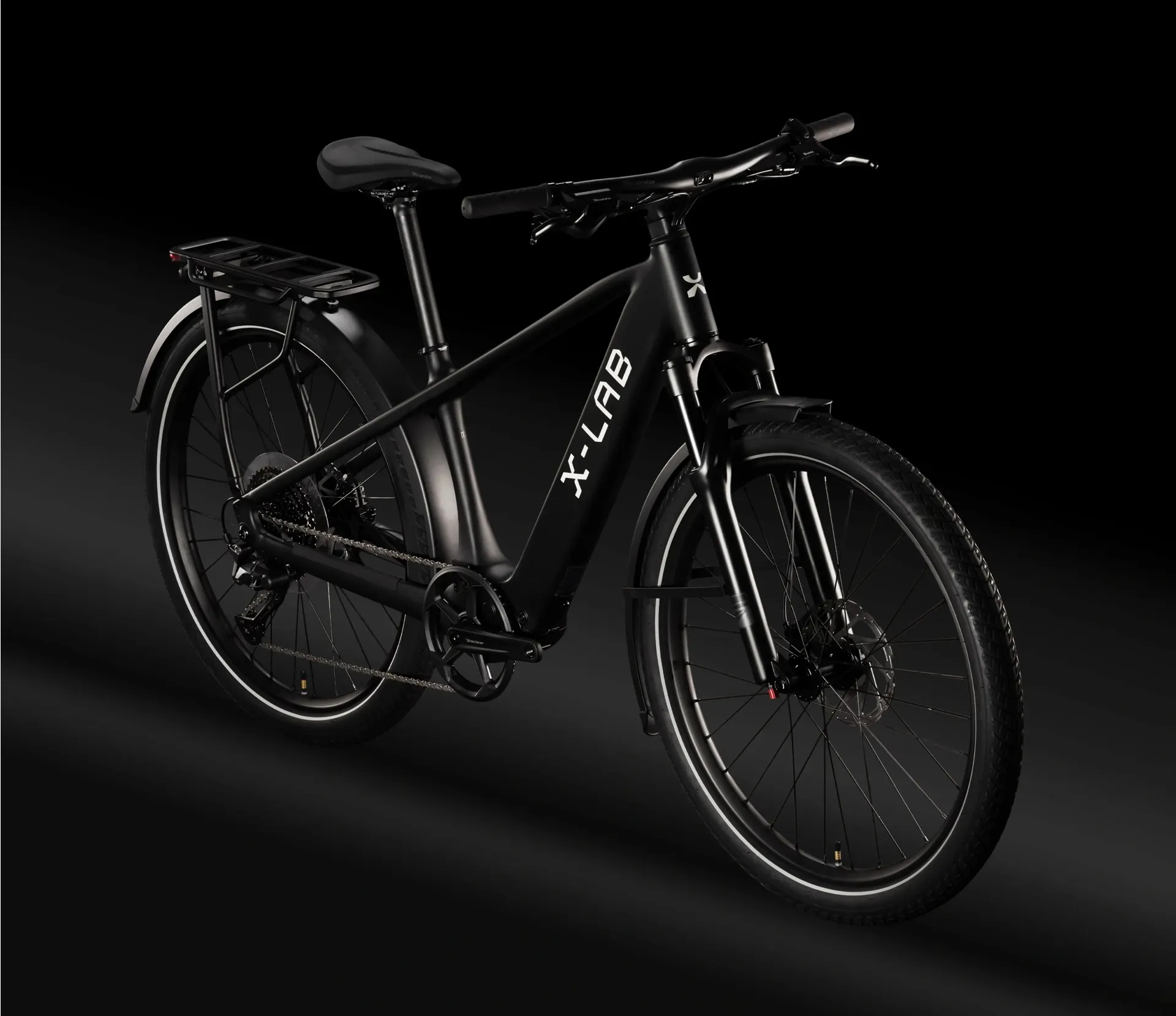

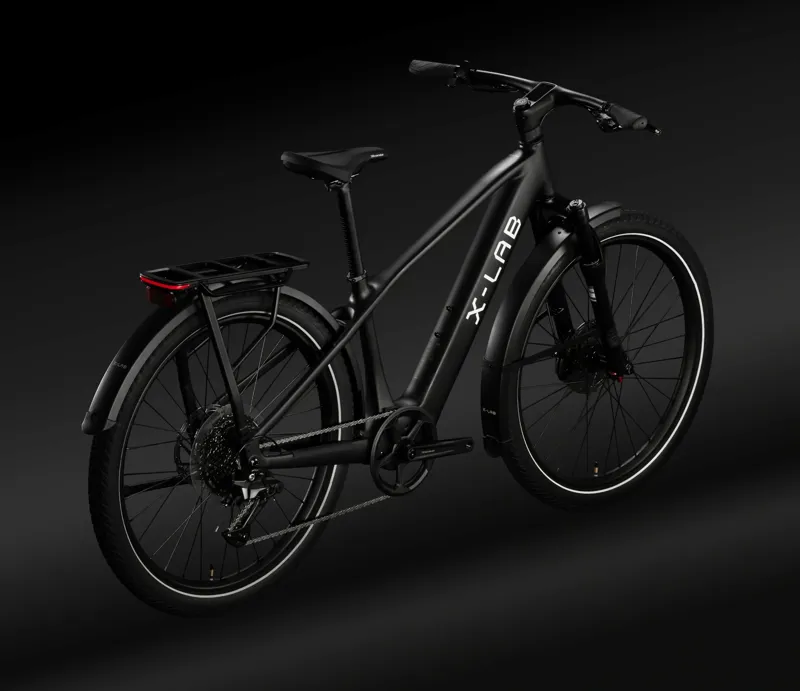

Xlab ST5+ MD in Nightfall Black

Season:2026

Brand:Xlab

Code:6939886205220

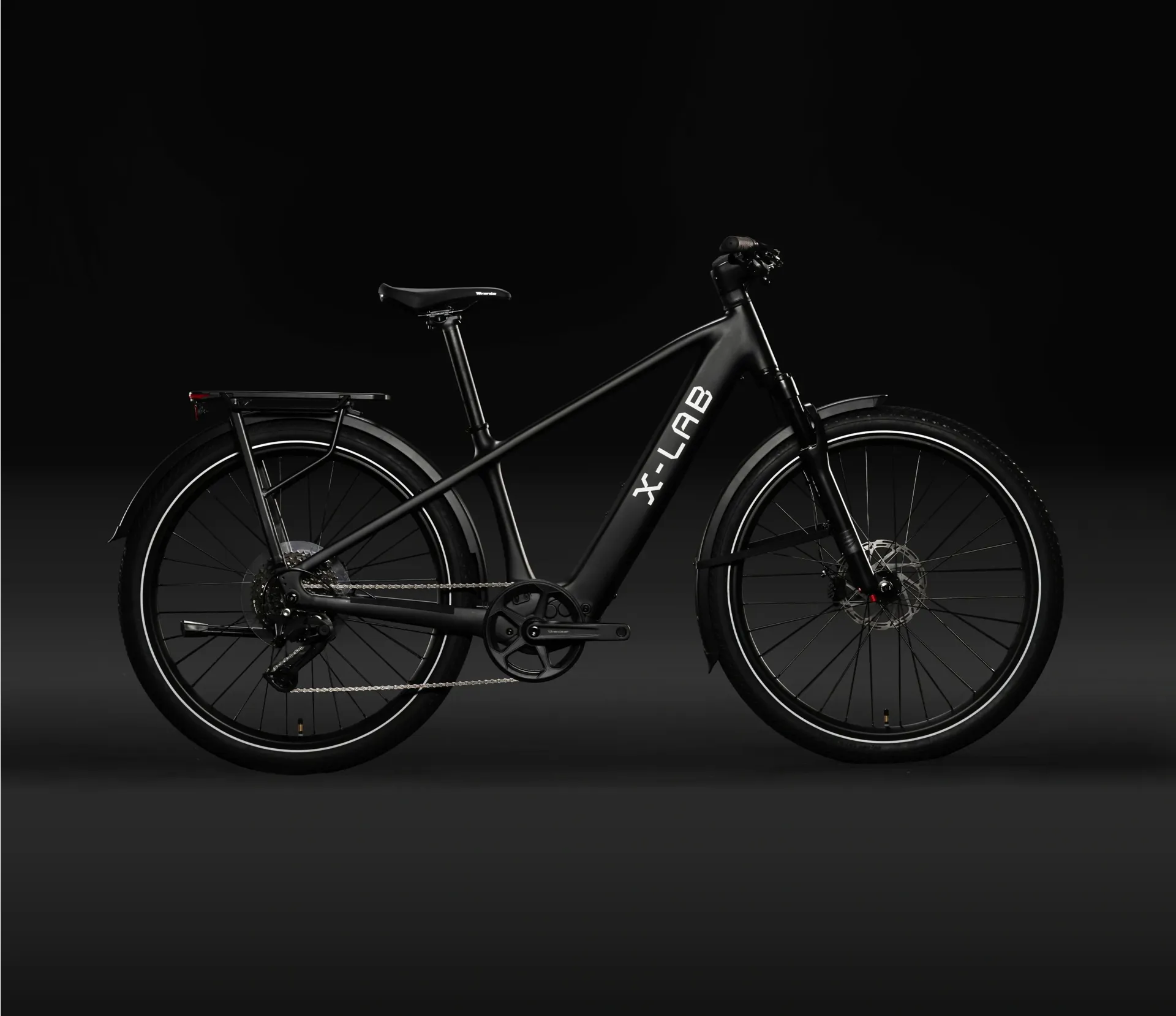

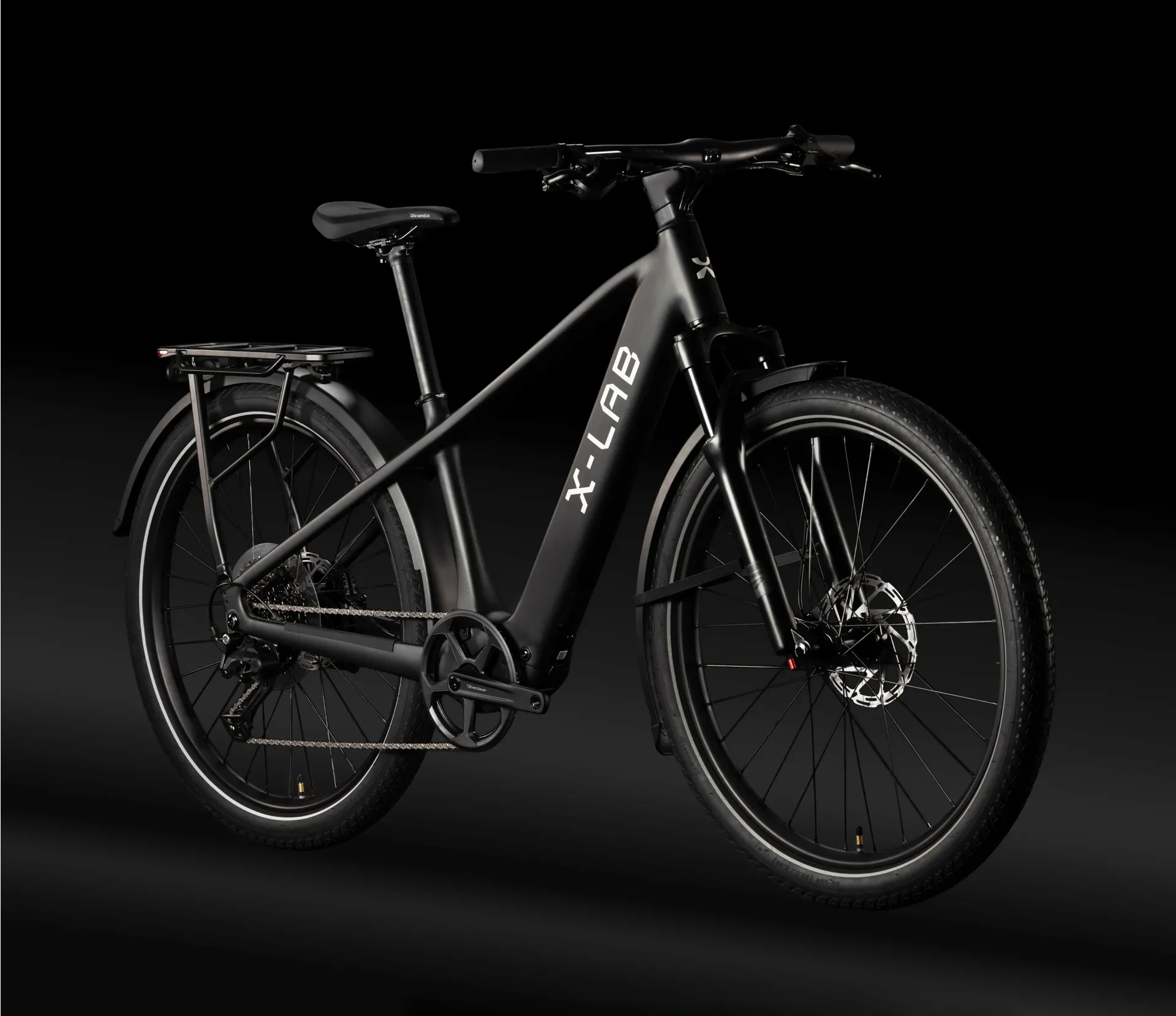

The Xlab ST5+ brings Xlab engineering to modern urban mobility. It is a versatile electric bike designed for commuting, convenience, and everyday riding.

Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ delivers smooth acceleration, confident handling, and the comfort needed for everyday riding. Designed for riders who want more from their city bike, the ST5+ makes commuting faster, cleaner, and more enjoyable.

A durable alloy frame and a complete build around 24.5 kg (54 lbs) delivers stability and confidence for commutes, errands, and long rides. The mid-drive system is tuned as a complete platform with torque where it counts, smarter control, and an integrated ecosystem designed for better ride feel and easier long-term performance. With Apple Find My and the Xlab Bikes app, the bike offers security, ride customization, diagnostics, and over-the-air updates.

Features:

  • Class 2 throttle and Apple Find My anti-theft technology
  • MIK-HD rear rack and alloy fenders
  • Shimano CUES 9-speed drivetrain

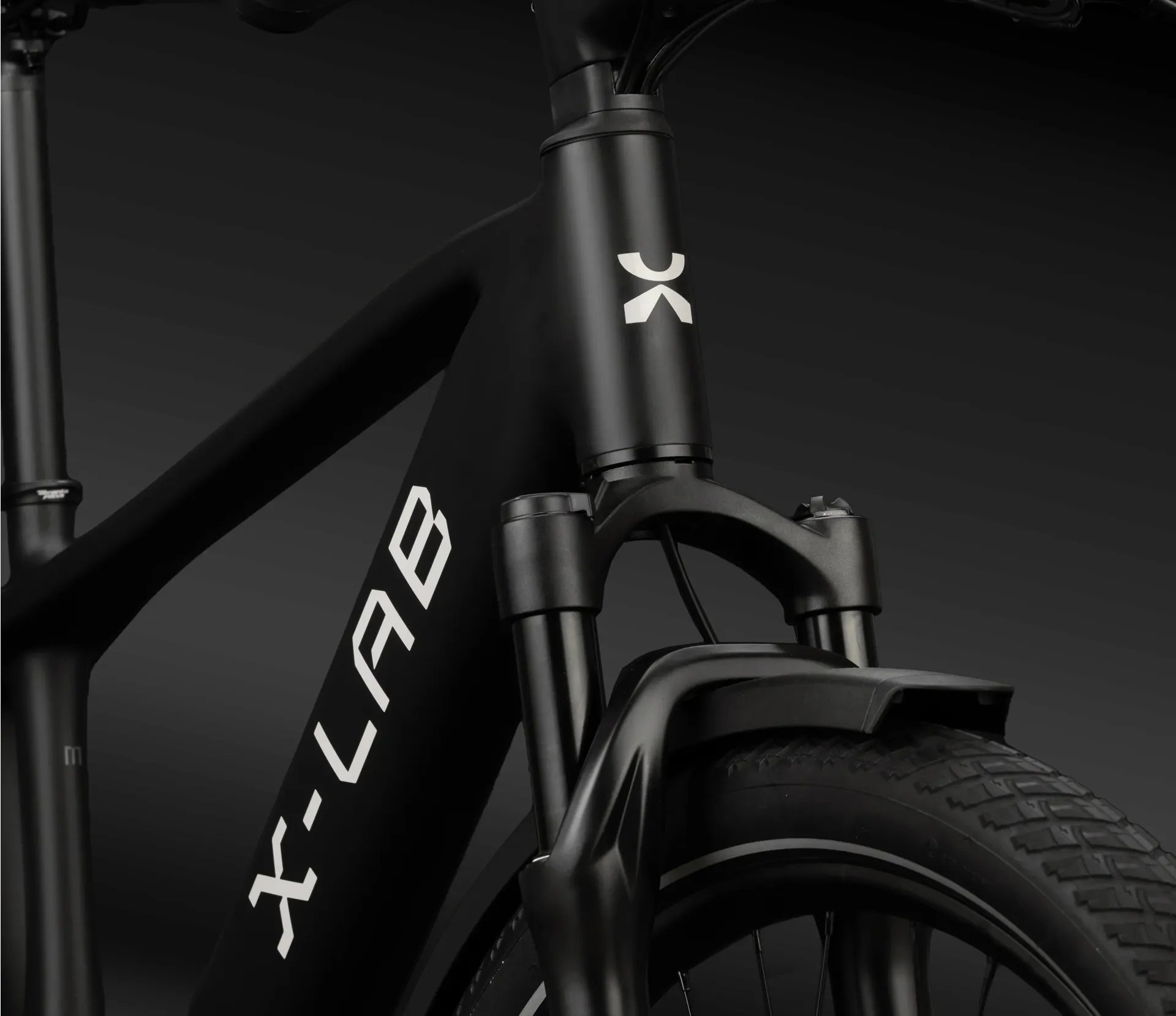

  • 2.4” (6.1 cm) tires and 80 mm suspension fork
  • Integrated front and rear lights with brake lights
  • 619Wh battery with up to 75 mile range
Sizing Information

Rider Height

Frame Size Rider Height (cm) Rider Height (ft/in)
M 157 cm – 173 cm 5' 2" - 5' 8"
L 173 cm – 188 cm 5' 8" - 6' 2"

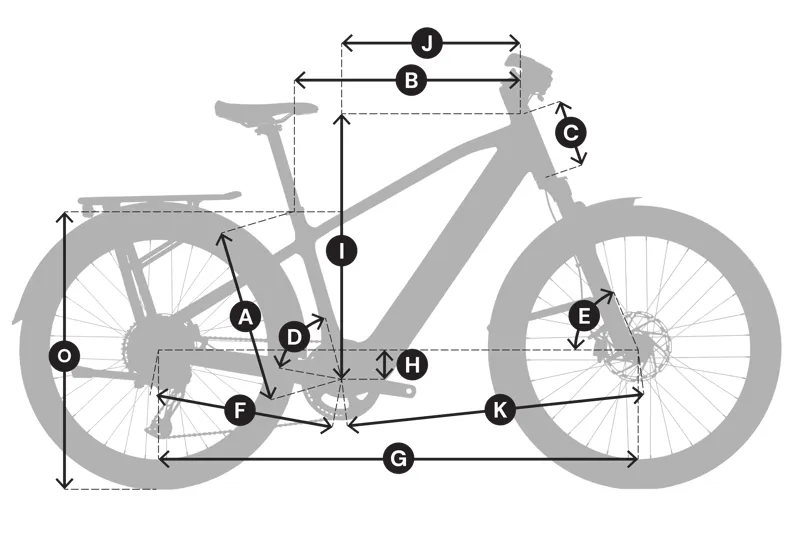

Basic Geometry

Measurement M L
A — Seat Tube Length 420mm 440mm
B — Top Tube Length 581mm 638mm
C — Head Tube Length 134mm 159mm
D — Seat Tube Angle 75° 74°
E — Head Tube Angle 69° 69°
F — Chainstay 475mm 475mm
G — Wheelbase 1152mm 1201mm
H — Bottom Bracket Drop 70mm 70mm
I — Stack 635mm 659mm
J — Reach 410mm 451mm
K — Front Center 686mm 735mm
O — Stand Over 734mm 744mm

Component Geometry

Component M L
Fork Rake/Offset 51mm 51mm
Trail 85mm 85mm
Stem 90mm 90mm
