The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets, featuring a lightweight frame, rigid fork, and refined electronics.
The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets, featuring a lightweight frame, rigid fork, and refined electronics.
Troxus

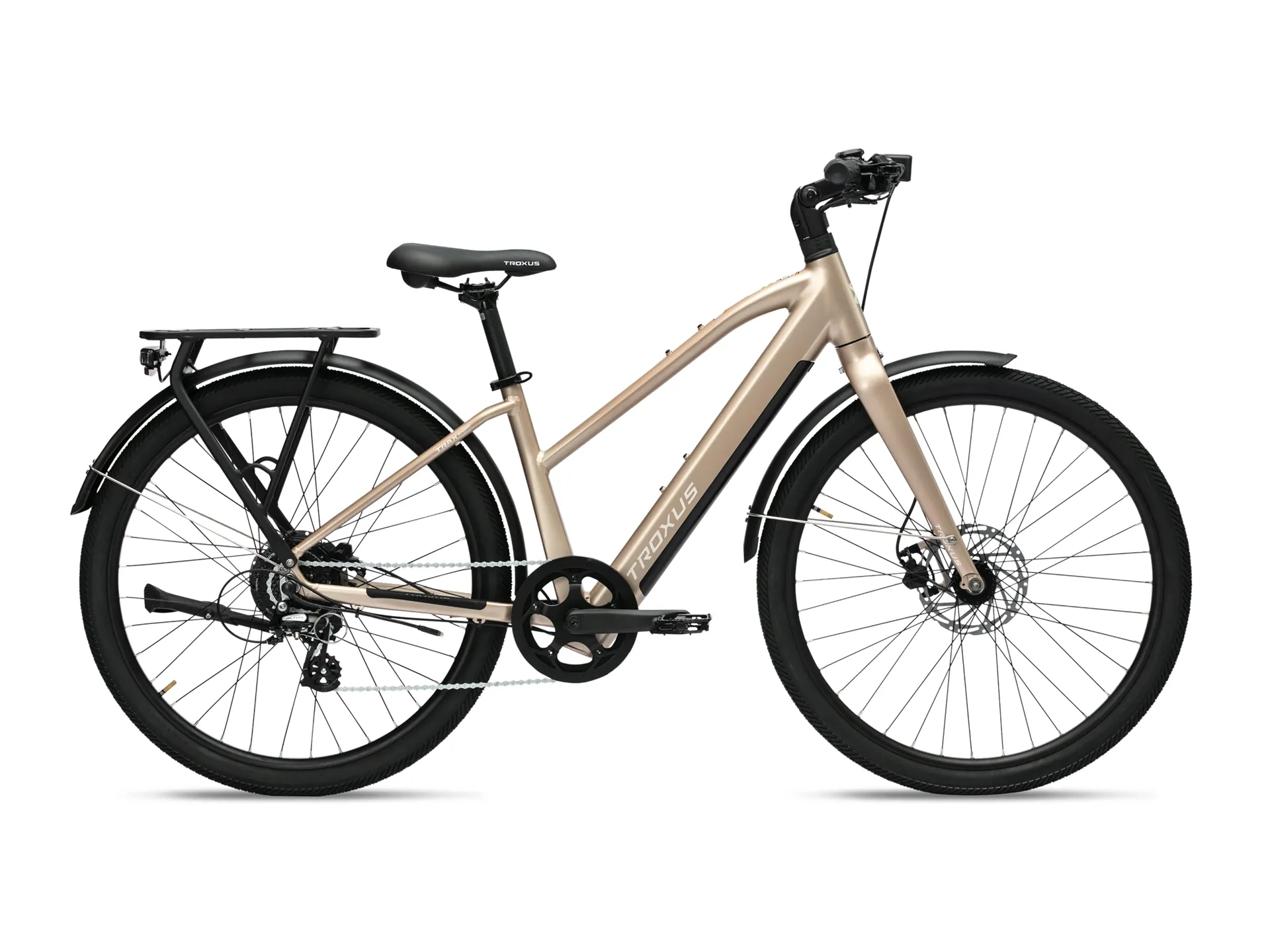

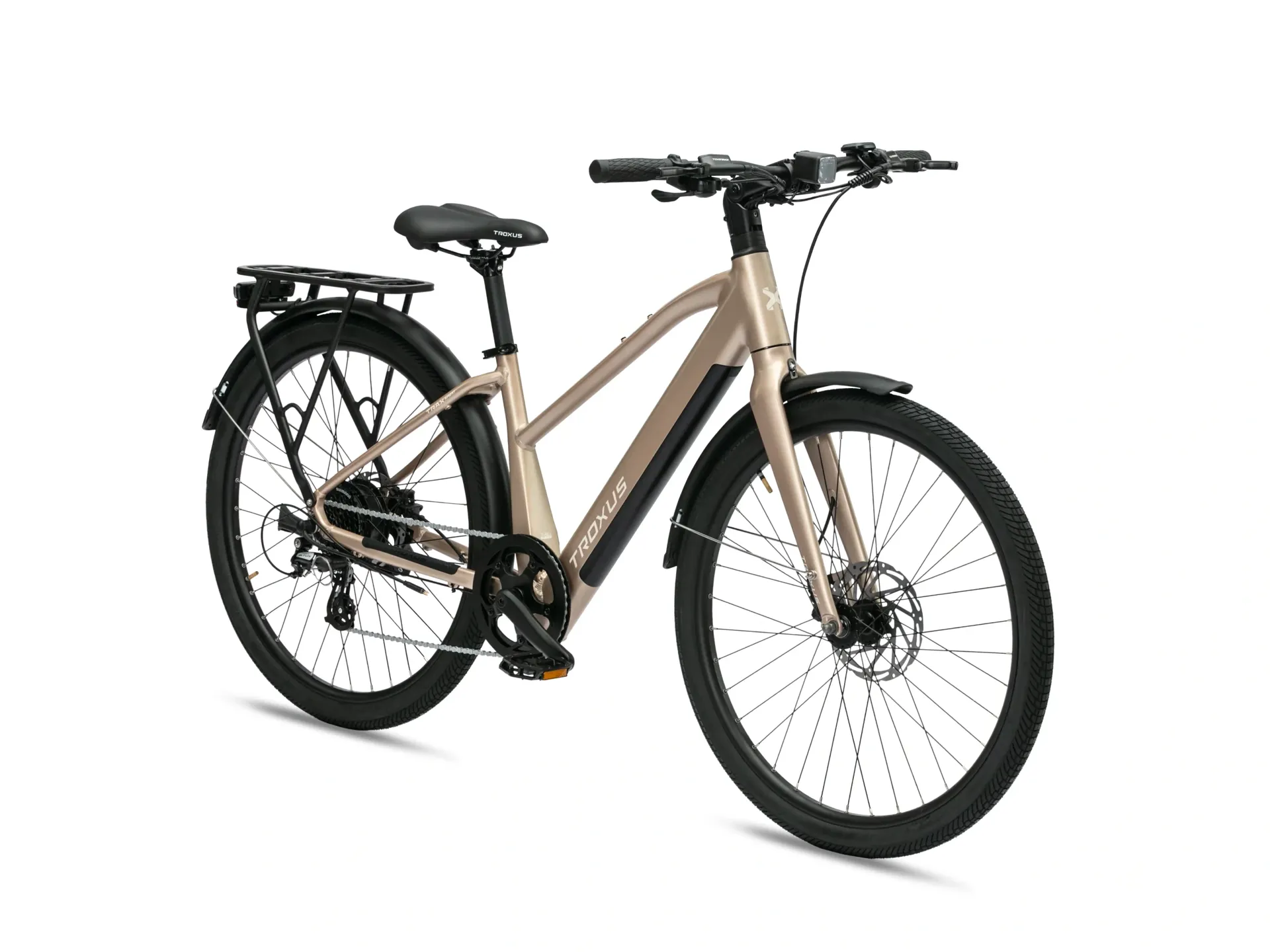

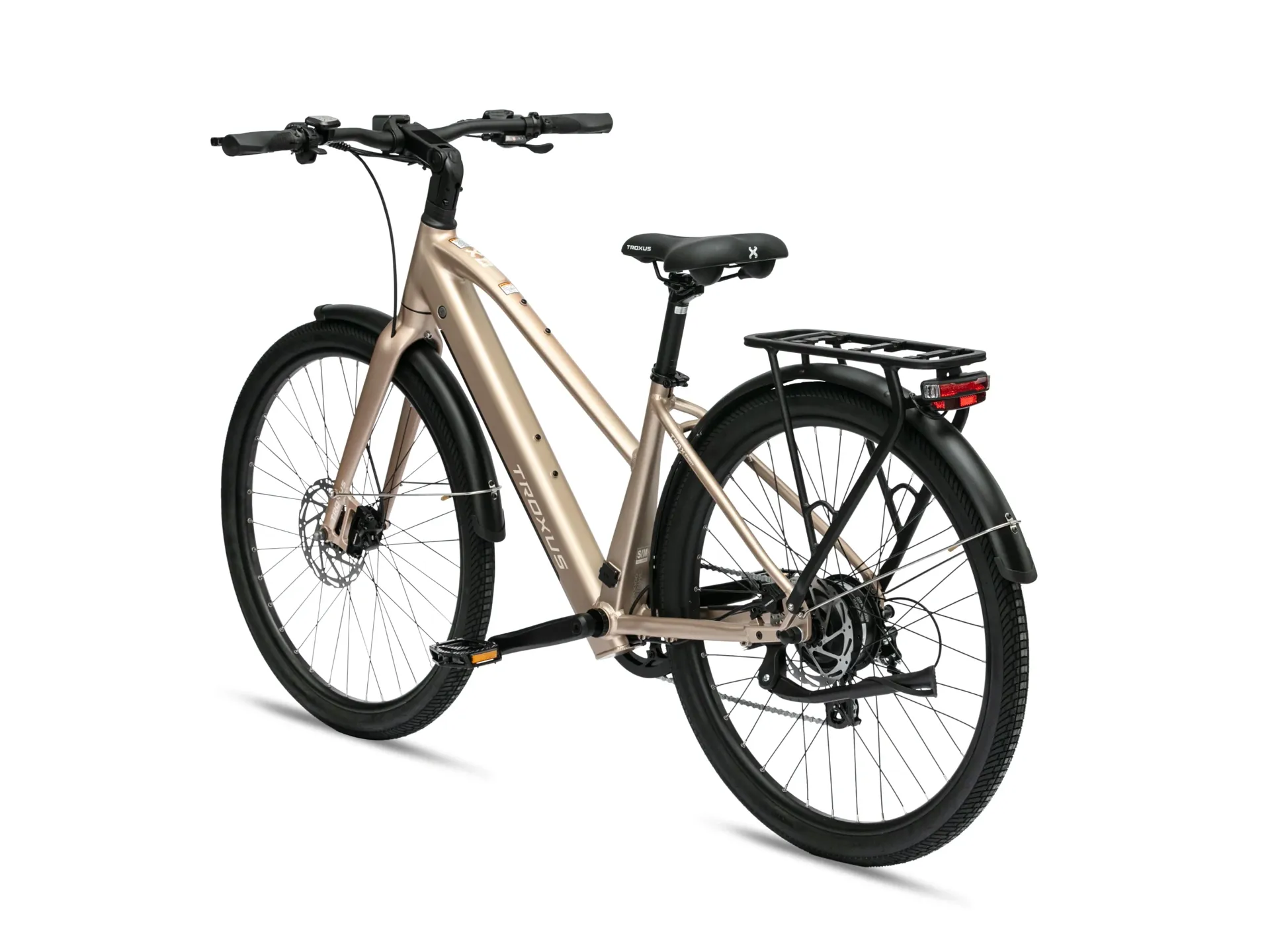

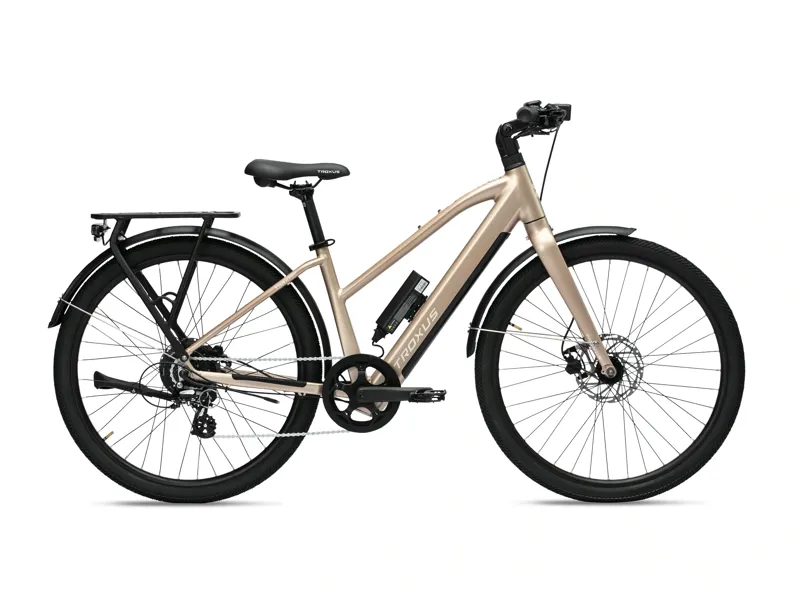

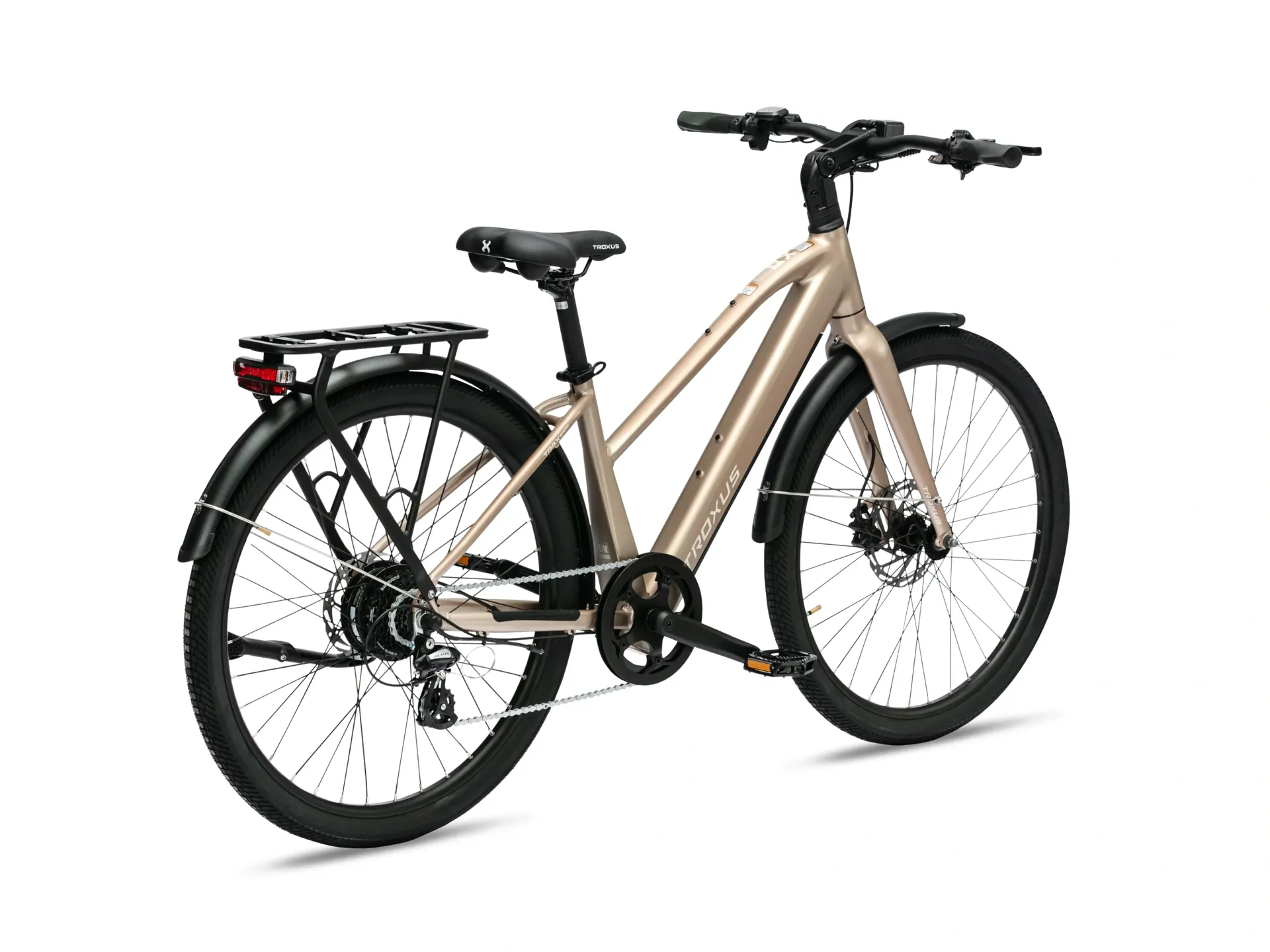

Troxus Trax Sport Mid Step Small in Bronze

$1,699.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax Sport Mid Step Small in Bronze

Brand:Troxus

Code:10870100296

The Trax Sport is made for those who live fast and ride light.

Designed for city streets and upstairs walk-ups, it is a sleek, fitness-focused commuter e-bike built with style and agility in mind. This ride is perfect for urban explorers who want speed, simplicity, and zero compromises.

Features:

  • Lightweight frame
  • Rigid fork
  • Refined electronics
Technical Information
  • Max speed
    Up to 20 MPH on throttle / Up to 25 MPH on pedal assist
  • Range
    Up to 45 miles per charge / Up to 65 miles w/ range extender
  • Weight limit
    Maximum load: 300 lbs. / Rider: 245 lbs. / Rear rack: 55 lbs.
  • Net weight
    47 lbs
  • Motor
    Jiabo® Hub-Drive Motor 36V/500W+ peak power, 50Nm peak torque
  • Battery
    UL-2271 certified / Internal / Removable / Lithium Ion, 36V/10Ah (360Wh) with Samsung® cells, w/ optional 252Wh range extender battery (36V/7A)

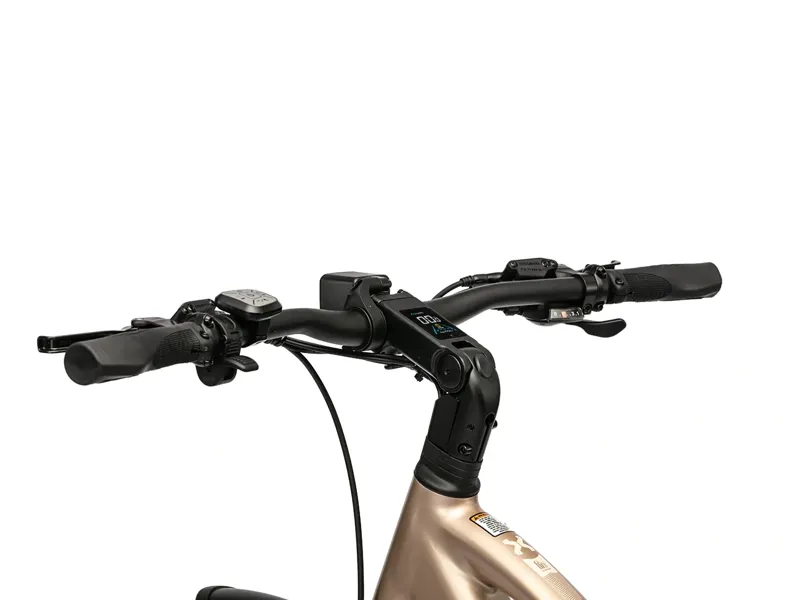

  • Display
    Stem-integrated color display, Bluetooth, w/ turn signals, w/ multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0~5 level pedal assist
  • Charger
    2A / 100-240V input / 42V output
  • Lights
    Front light & rear light
  • Controller
    36Vx15A/12V

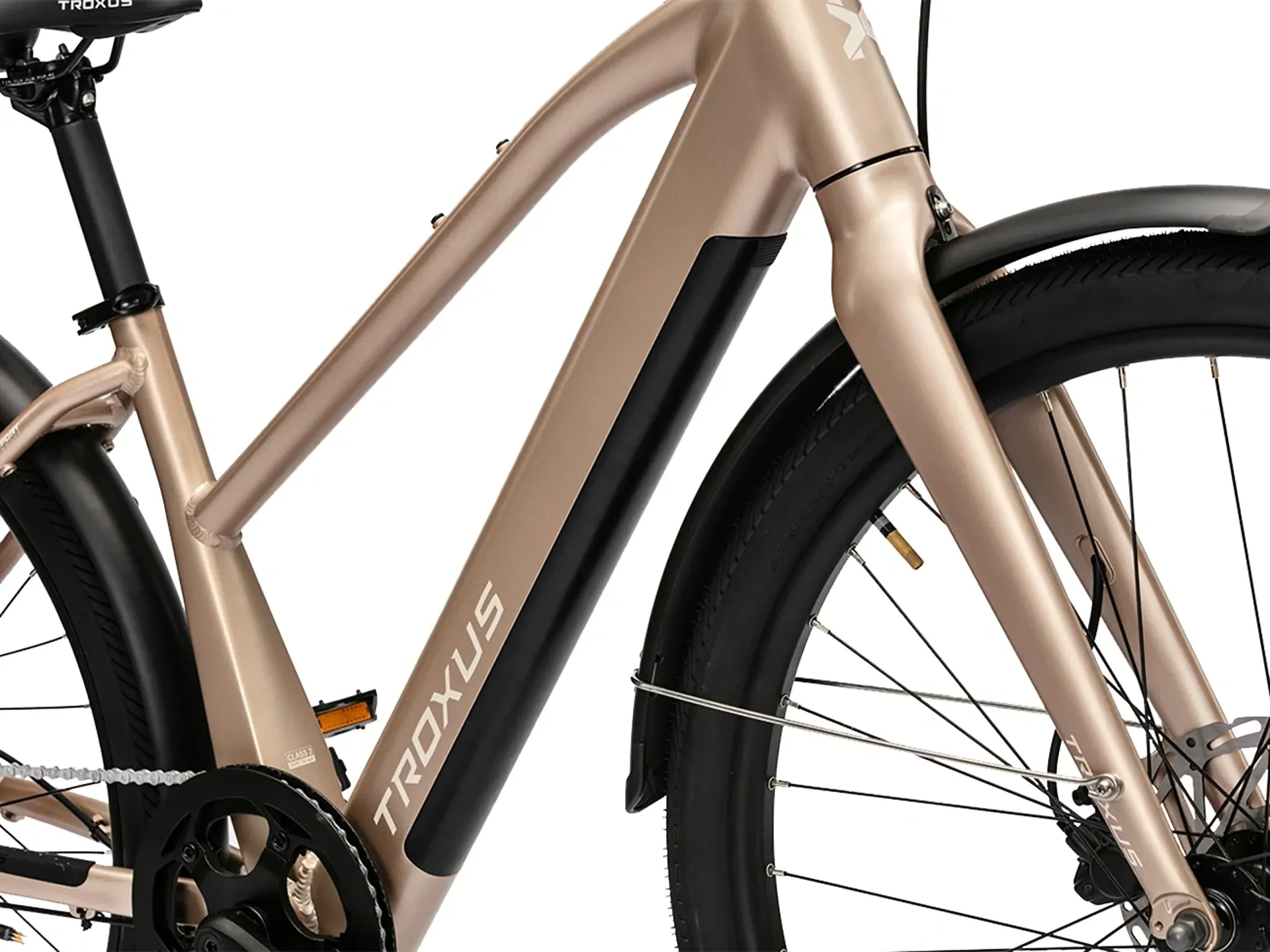

  • Frame
    6061-T6 aluminum frame, lightweight, mid-step & step-over
  • Fork
    Rigid aluminum, 700c, tapered 1.5", internal front brake routing
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 46T, w/ alloy chainring & single chainguard, square taper, 170mm

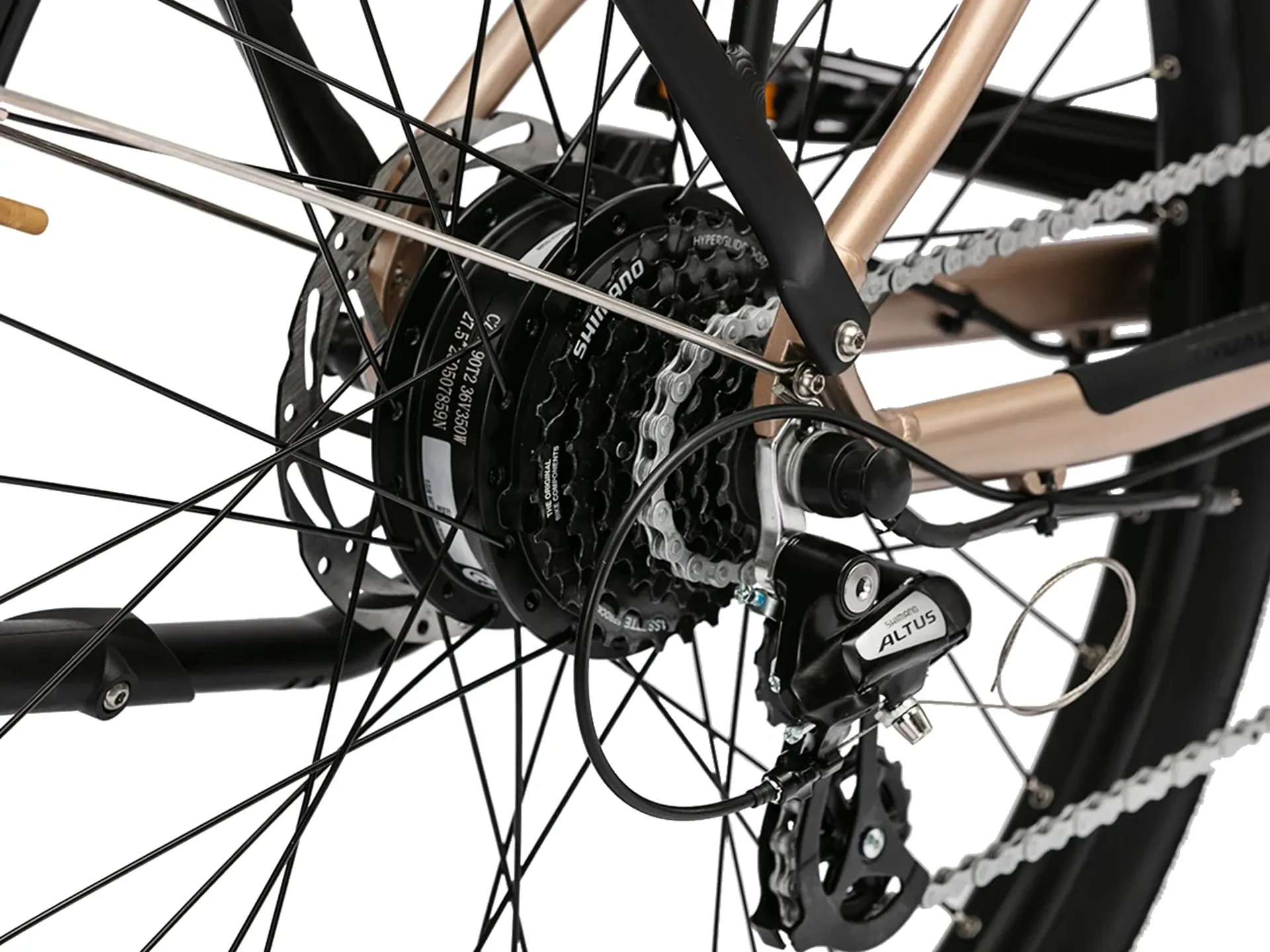

  • Rear derailleur
    Shimano® RD-M310-L, Altus, 8-speed
  • Cassette
    Shimano® 8-speed, 12-32T
  • Shifter
    Shimano® 8-speed
  • Bottom bracket
    Square taper sealed bearings, torque & cadence sensors included
  • Tires
    KENDA® K-1266 Urban 27.5"x1.75"
  • Front hub
    Alloy, 14Gx36H, O.L.D. 100mm, 3/8" axle, w/ nuts

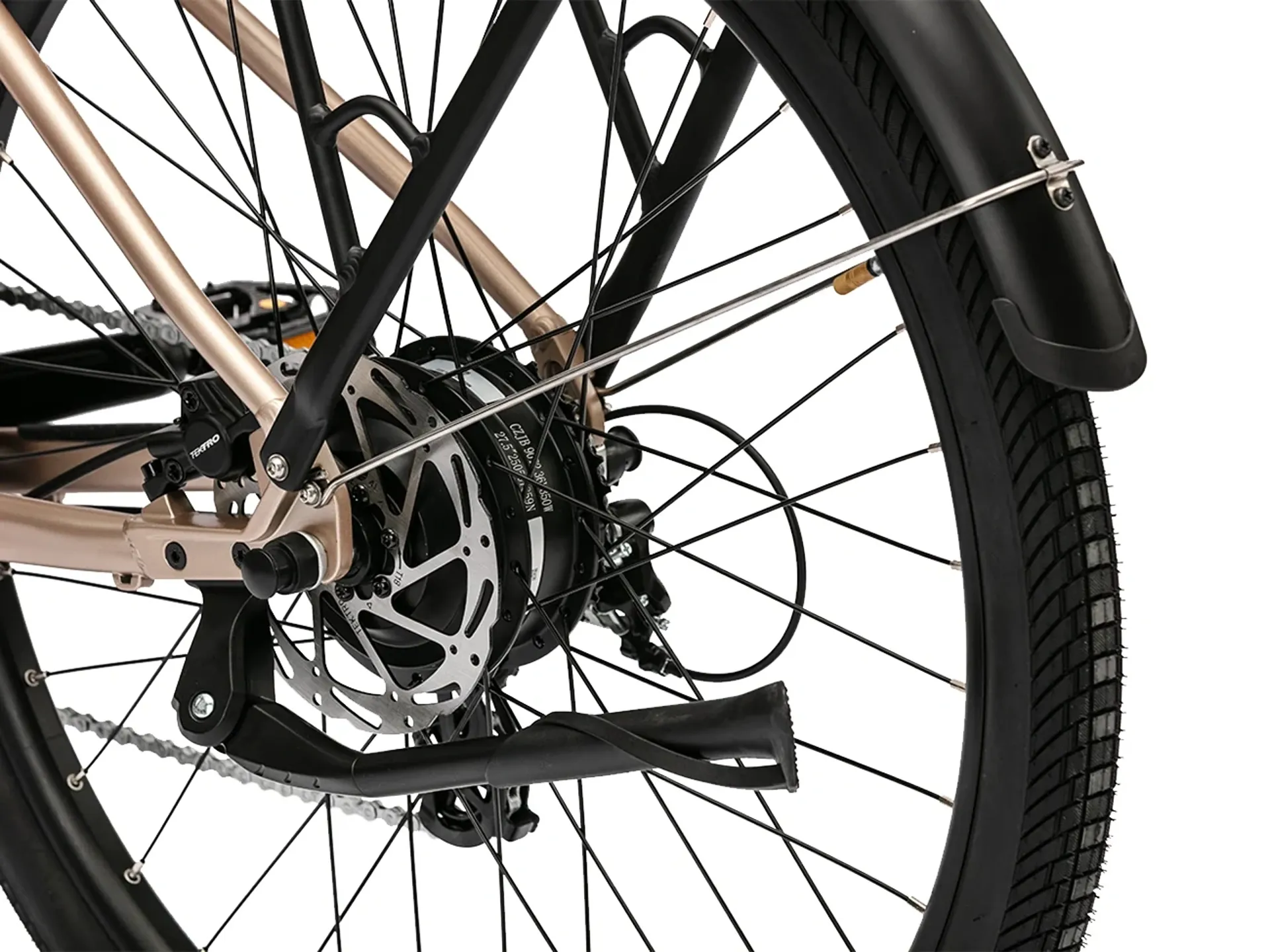

  • Rear hub
    Jiabo® 36V 350W+/ 25 MPH. 50Nm
  • Rims
    Alloy double wall, 27.5"x2.0" w/ eyelets
  • Spokes
    Stainless 14G. front / 13G. rear

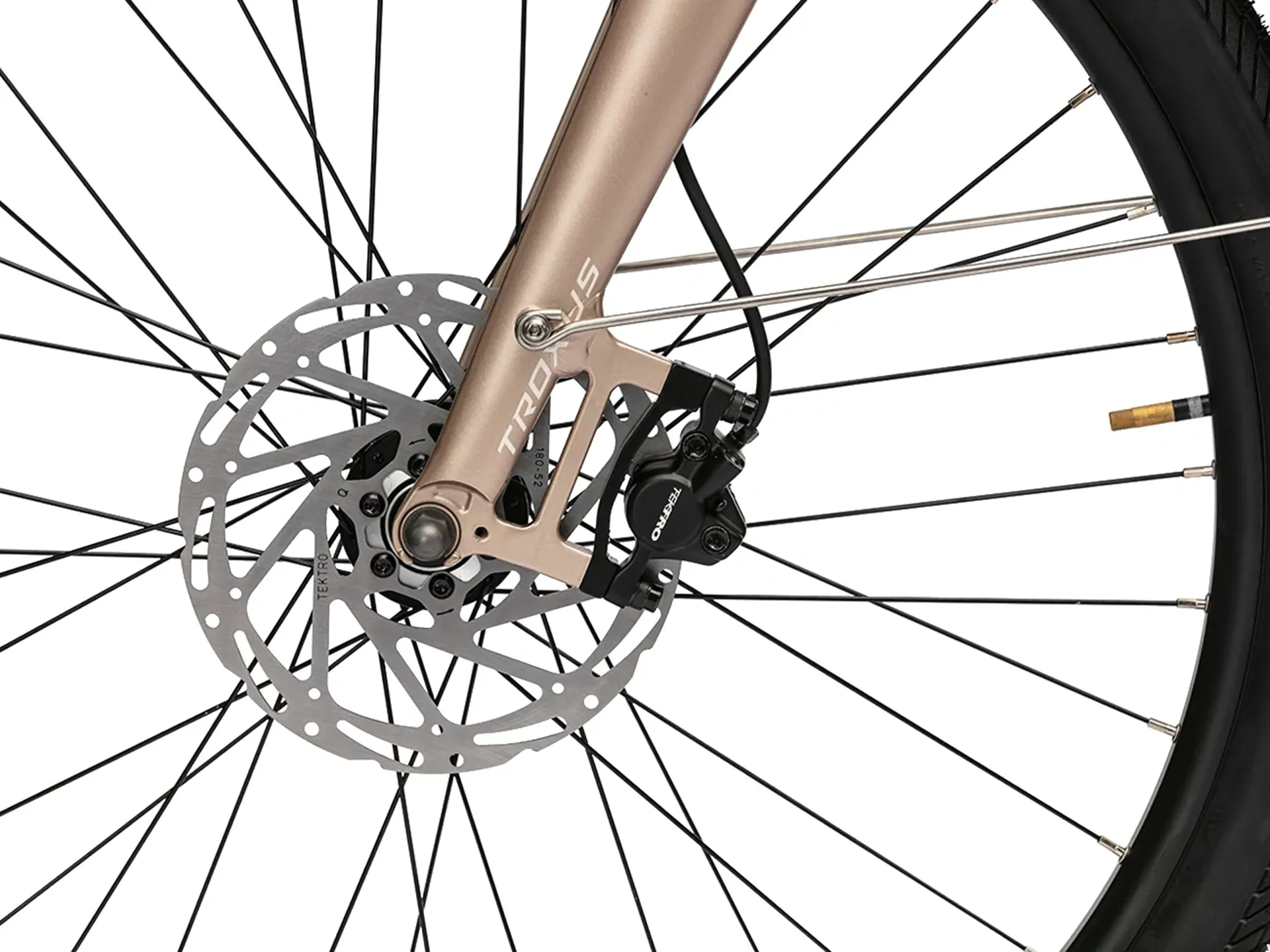

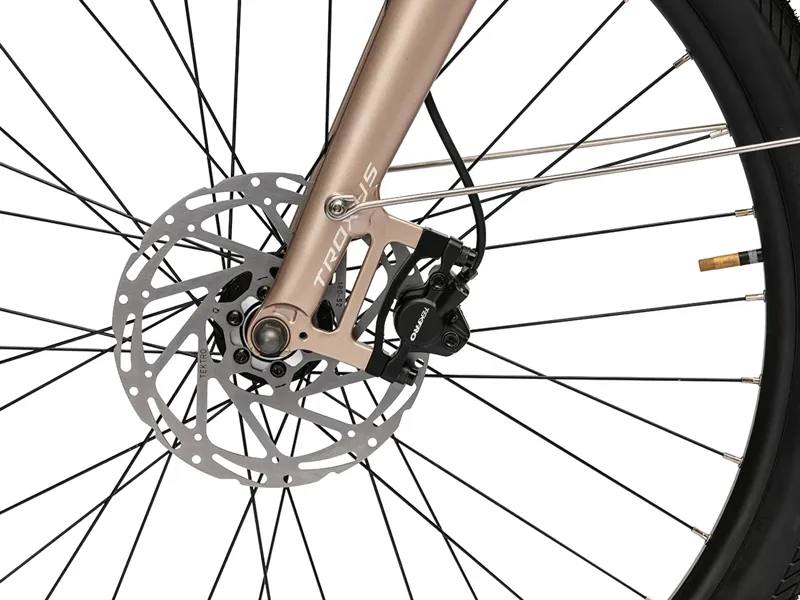

  • Brakes
    Tektro® hydraulic, w/ brake sensors
  • Rotors
    180mm / 160mm

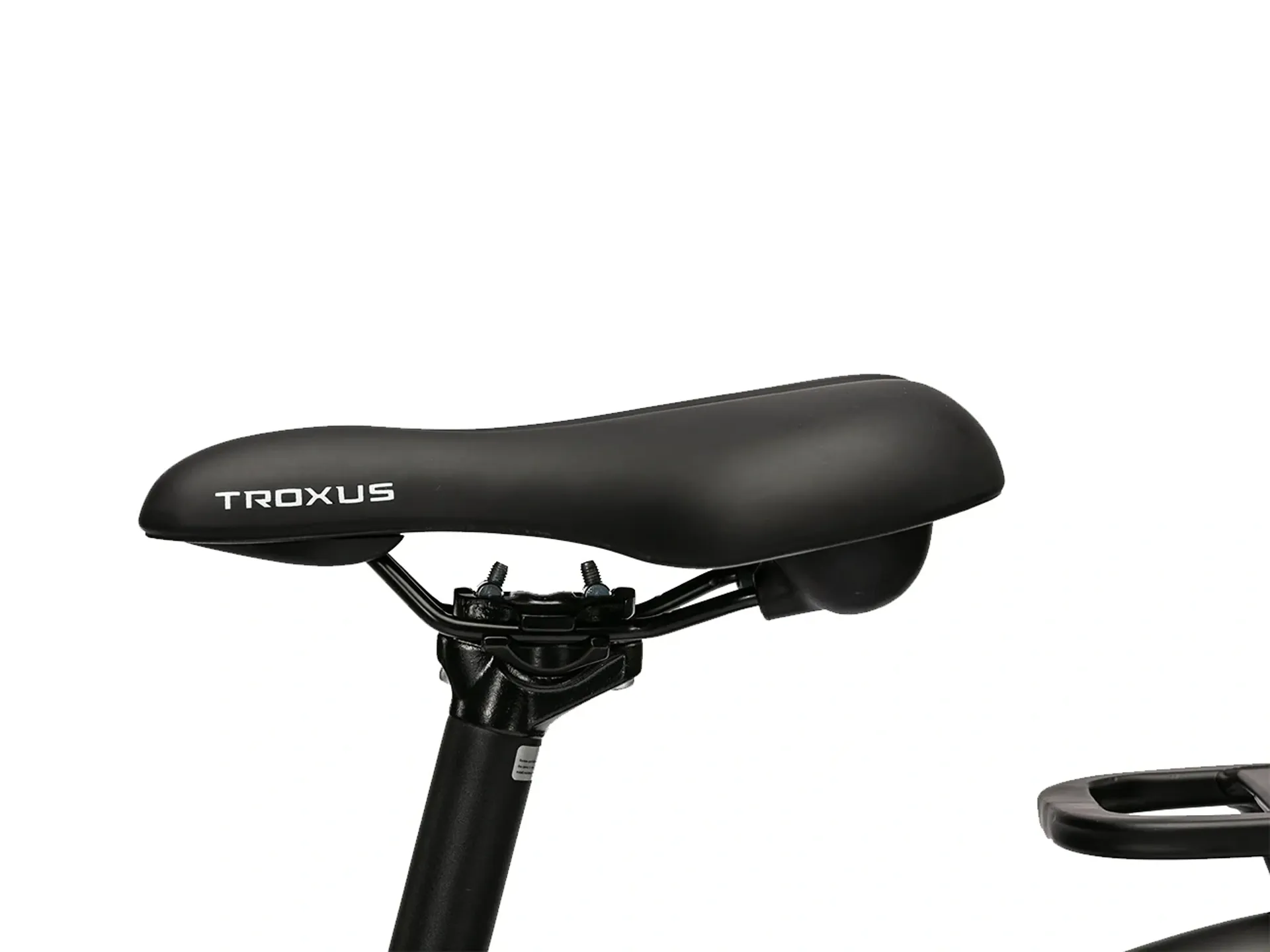

  • Saddle
    Troxus comfort / 195mm wide
  • Seat post
    Alloy, 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm w/ quick release
  • Stem
    Alloy, forged, adjustable, w/ integrated display / ext. 110mm, w/ internal cable routing
  • Handlebar
    Zoom® alloy, 31.8mmx700mm wide, 20mm rise, 9 deg. backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    9/16" alloy platform with reflectors
  • Headset
    ICR type, threadless, internal 57/62mm, w/ internal cable routing

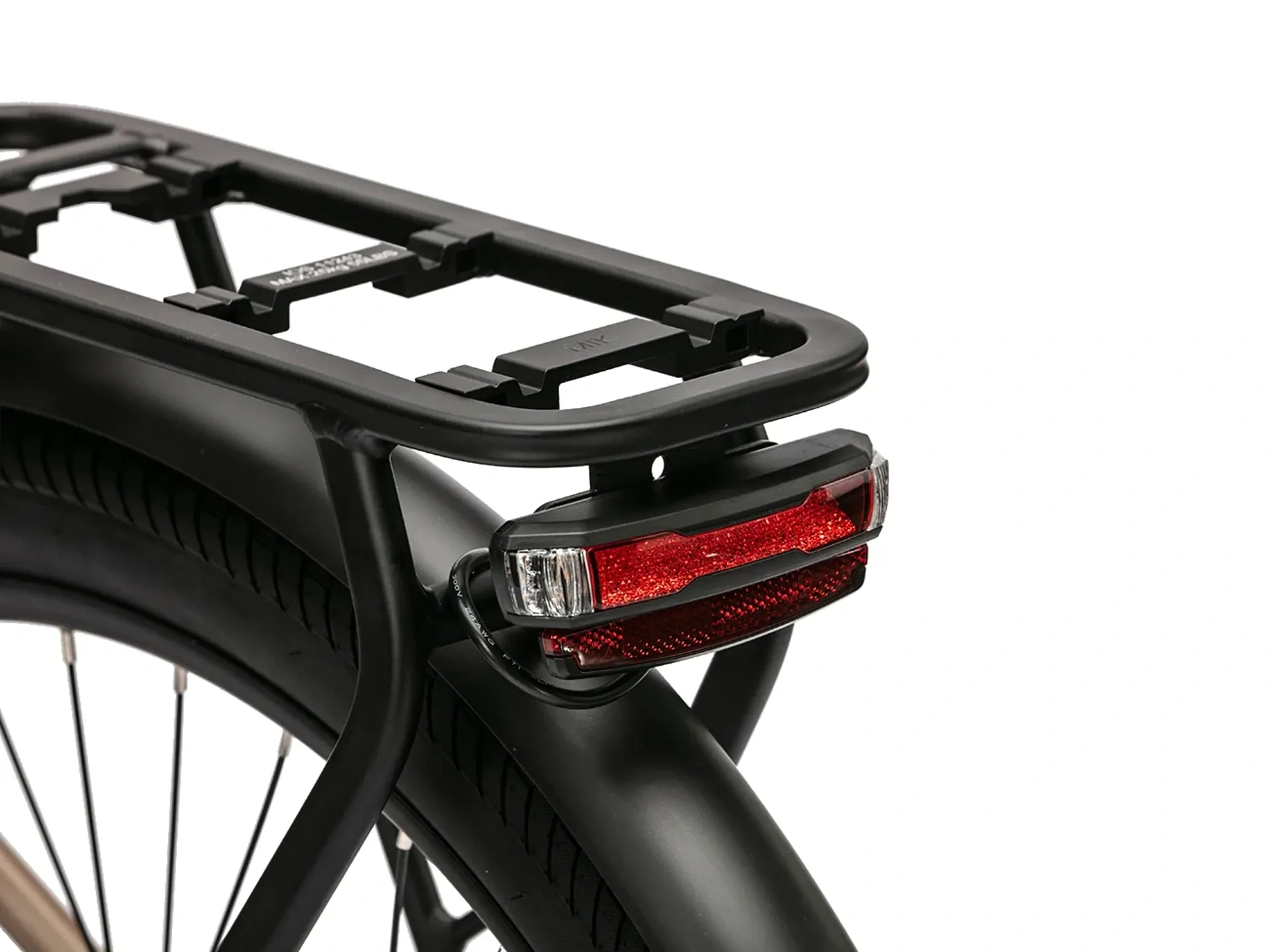

  • Rack
    Lightweight alloy rear model / MIK-compatible rear rack
  • Fender
    Plastic 27.5"
  • Kickstand
    Adjustable side kickstand
Sizing Information


Size Frame Size Wheel Size A - Seat Tube Length B - Seat Tube Angle C - Head Tube Length D - Head Tube Angle E - Effective Top Tube Length F - Bottom Bracket Height G - Bottom Bracket Drop H - Chainstay Length I - Fork Offset J - Wheelbase K - Frame Reach L - Frame Stack
Small 5'0" - 5'5" (153 - 166 cm) 27.5" x 1.75" 394 mm 74˚ 140 mm 69˚ 552 mm 285 mm 62 mm 455 mm 45 mm 1082 mm 388 mm 571 mm
Medium 5'5" - 5'10" (166 - 178 cm) 27.5" x 1.75" 445 mm 74˚ 145 mm 69˚ 590 mm 285 mm 62 mm 455 mm 45 mm 1121 mm 425 mm 576 mm
Large 5'9" - 6'4" (176 - 193 cm) 27.5" x 1.75" 495 mm 74˚ 155 mm 69˚ 609 mm 285 mm 62 mm 455 mm 45 mm 1141 mm 441 mm 585 mm

Performance Specifications

Feature Specification
Max Speed Up to 20 MPH (Throttle) / Up to 25 MPH (Pedal Assist)
Range Up to 45 miles per charge / Up to 65 miles with range extender
Weight Limit Maximum Load: 300 lbs / Rider: 245 lbs / Rear Rack: 55 lbs
Net Weight 47 lbs

E-Systems

Component Details
Motor Jiabo Hub-Drive Motor 36V/500W+ Peak Power, 50Nm Peak Torque
Battery UL-2271 Certified, Internal, Removable, Lithium Ion, 36V/10Ah (360Wh) with Samsung Cells
Display Stem-Integrated Color Display, Bluetooth, with Turn Signals and Multi-Function Remote
Sensor Switchable Torque and Cadence Sensor Modes
Pedal Assist 0-5 Level Pedal Assist
Charger 2A / 100-240V Input / 42V Output
Lights Front and Rear Light
Controller 36Vx15A/12V

Components

Part Specification
Frame 6061-T6 Aluminum, Lightweight, Mid-Step & Step-Over
Fork Rigid Aluminum, 700c, Tapered 1.5", Internal Front Brake Routing
Crankset Aluminum, 46T, Alloy Chainring, Single Chainguard, Square Taper, 170mm
Rear Derailleur Shimano RD-M310-L, Altus, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Tires KENDA K-1266 Urban 27.5" x 1.75"
Brakes Tektro Hydraulic, with Brake Sensors
Saddle Troxus Comfort, 195mm Wide
Seat Post Alloy, 30.9 x 400mm, Adjustable
Handlebar Zoom Alloy, 31.8mm x 700mm Wide, 20mm Rise, 9 Deg. Backsweep
