The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease. It features a 500W motor, 720Wh battery, and a suspension seat post for added comfort.
The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease. It features a 500W motor, 720Wh battery, and a suspension seat post for added comfort.
Troxus

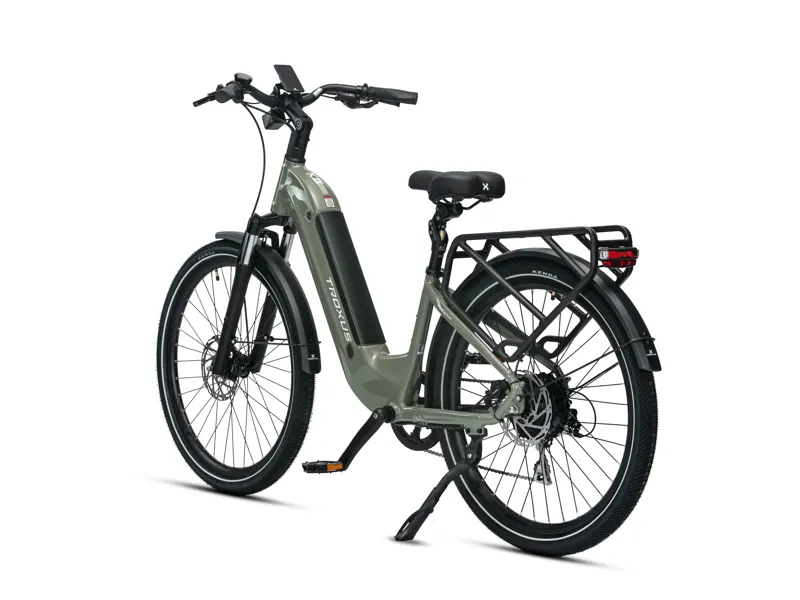

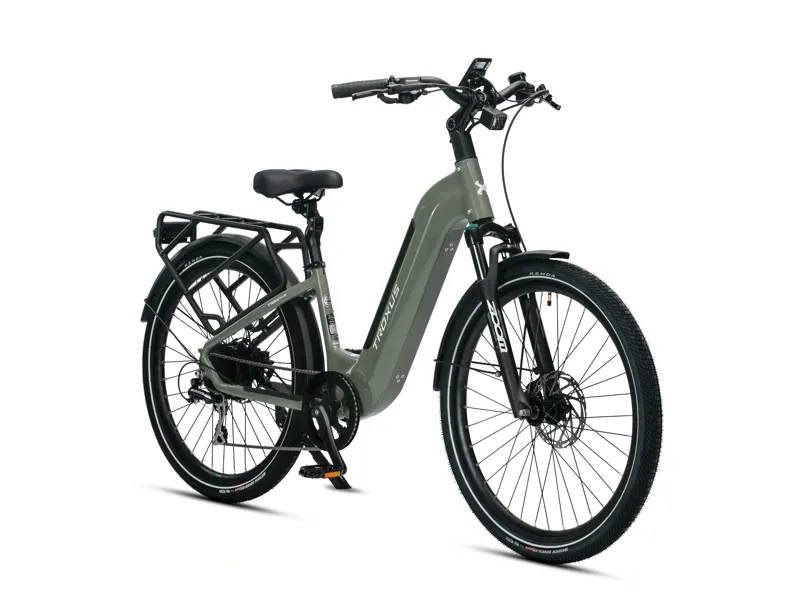

Troxus Trax Plus Step-Thru 500/15 eHybrid Bike Small in Deep Moss

$1,599.00 $2,199.00 27% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

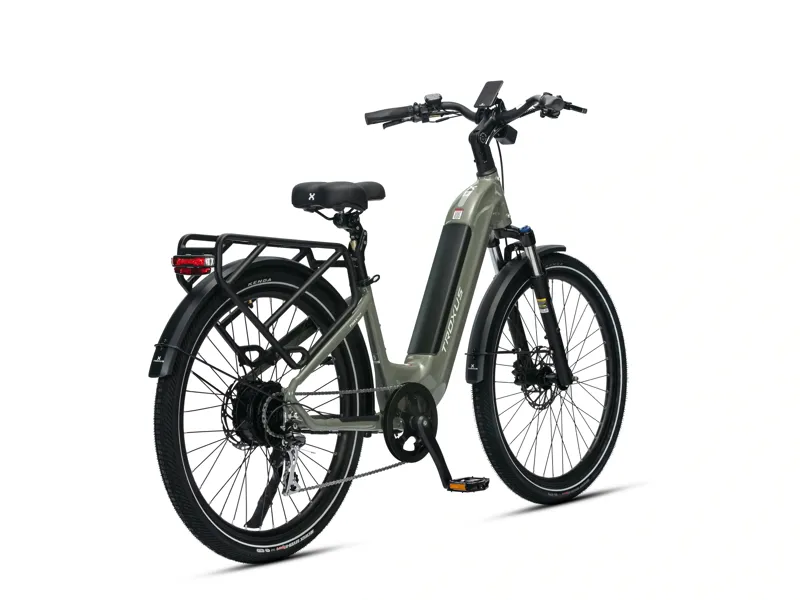

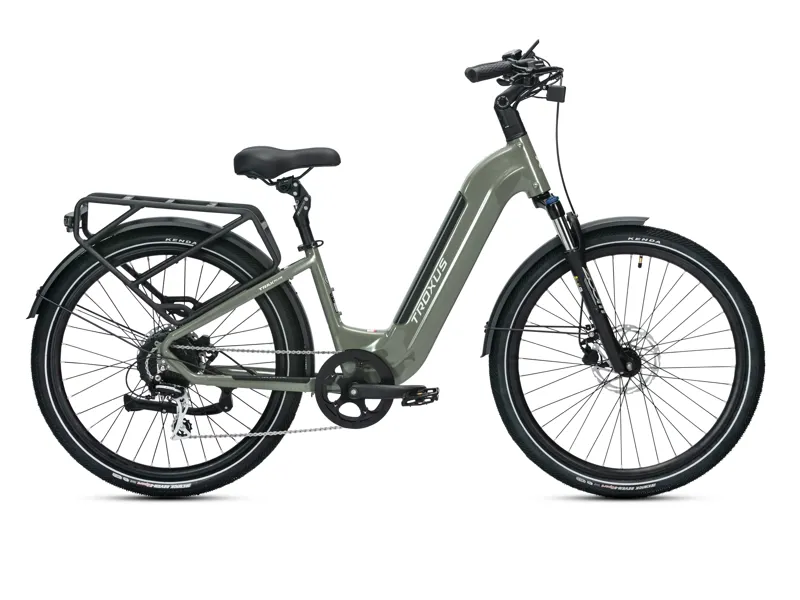

Troxus Trax Plus Step-Thru 500/15 eHybrid Bike Small in Deep Moss

Brand:Troxus

Code:10870100305

The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease.

Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers the power needed for any ride. The smooth suspension seat post adds a layer of comfort. Whether climbing steep hills or cruising through the city, the Trax Plus 500W/15Ah makes every journey effortless.

Features:

  • 500W motor
  • 720Wh battery
  • Suspension seat post
  • Step-thru frame design
Technical Information
  • Frame size
    Small (15"), Medium (17"), Large (20")
  • Wheel size
    27.5" x 2.2"
  • Seat tube length
    381mm, 432mm, 500mm
  • Seat tube angle
    72˚
  • Head tube length
    150mm
  • Head tube angle
    68˚, 69˚
  • Effective top tube length
    613.5mm, 639mm, 645mm
  • Bottom bracket height
    296mm
  • Bottom bracket drop
    55mm
  • Chainstay length
    480mm
  • Fork offset
    42mm
  • Wheelbase
    1163mm, 1168mm, 1183mm
  • Frame reach
    410mm, 425mm, 440mm
  • Frame stack
    626mm, 631mm
  • Fork travel
    65mm
  • Fork height
    480mm
  • Max speed
    Up to 20 MPH (throttle), 28 MPH (pedal assist)
  • Range
    Up to 70 miles per charge
  • Weight limit
    383 lbs
  • Net weight
    68.5 lbs
  • Motor
    Ananda® 48V/500W hub-drive, 65Nm max torque
  • Battery
    48V/15Ah (720Wh) lithium ion with Samsung® cells, UL-2271 certified

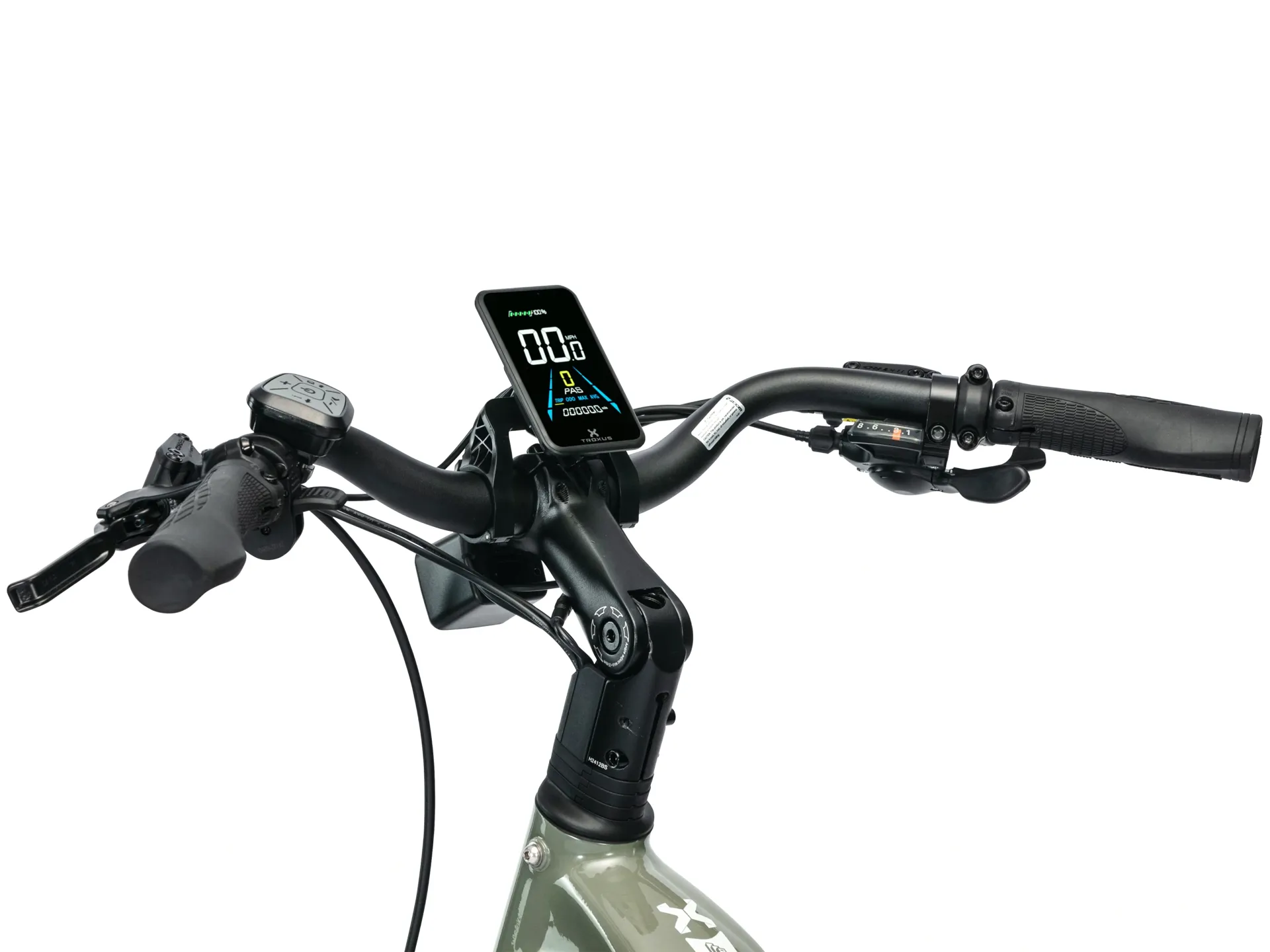

  • Display
    Color, Bluetooth, turn light signals, multi-function remote
  • Sensor
    Switchable torque and cadence modes
  • Pedal assist
    0-5 levels
  • Charger
    2A, 100-240V input, 54.6V output

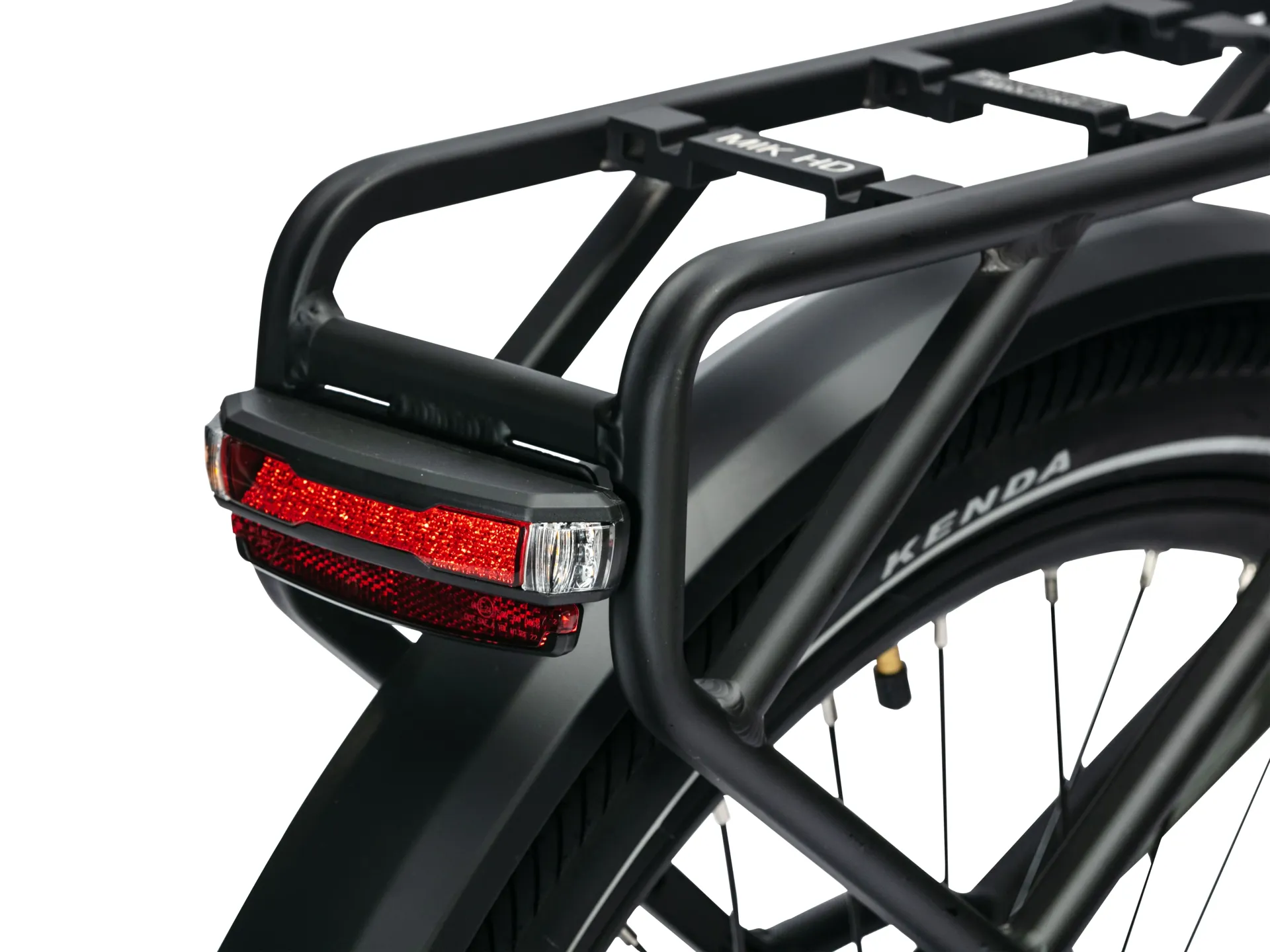

  • Lights
    Front and rear
  • Controller
    48Vx18A/12V
  • Frame
    Hydroformed aluminum
  • Fork
    Zoom® front suspension, 65mm travel
  • Chain
    KMC® 1/2" x 3/32"
  • Crankset
    Aluminum, 46T, single alloy chainguard, square taper, 170mm

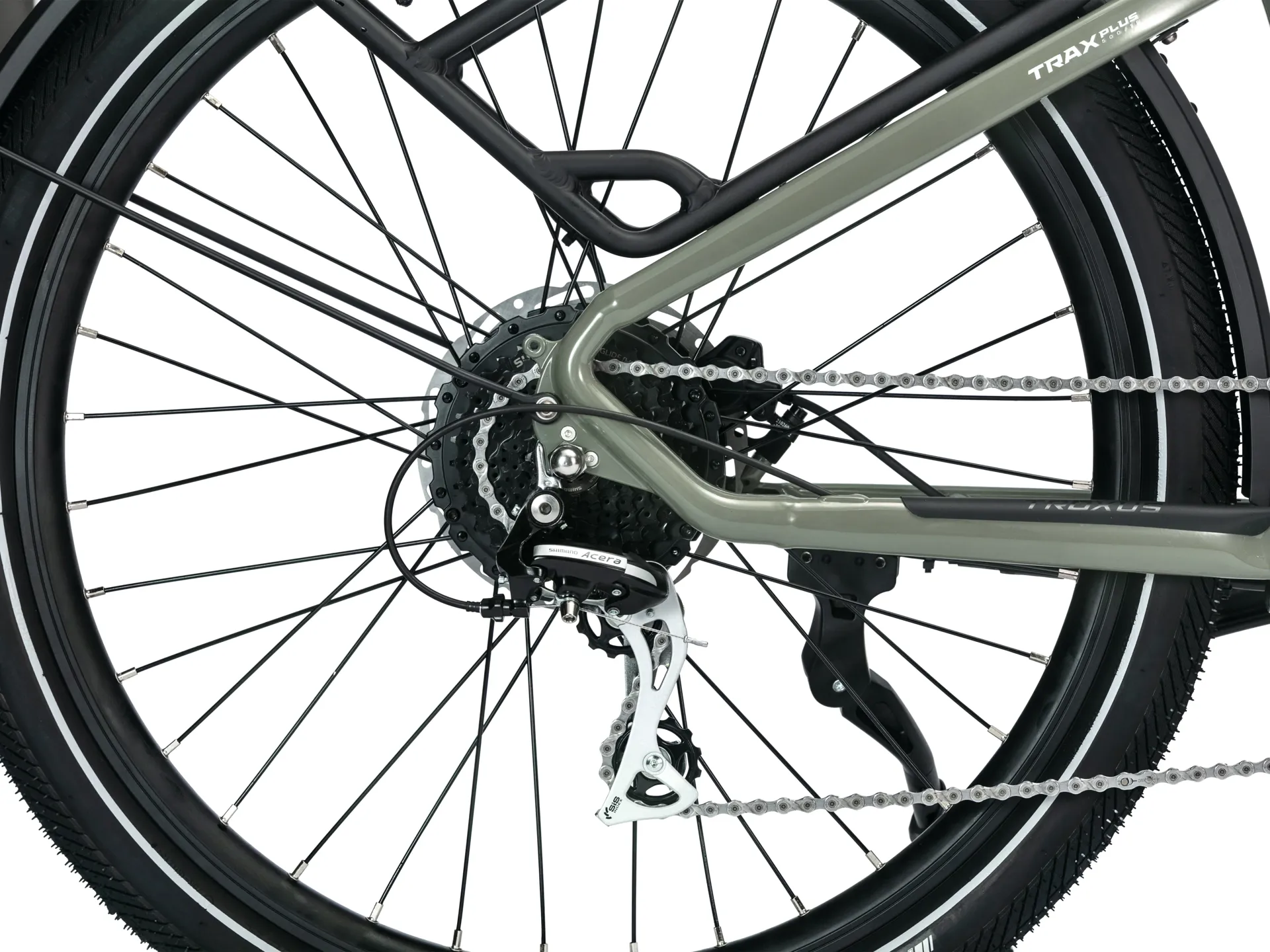

  • Rear derailleur
    Shimano® RD-M3020-8, Acera, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano® 8-speed
  • Bottom bracket
    Square taper sealed bearings
  • Tires
    KENDA® 27.5" x 2.2", reflective, puncture-resistant, E-50 rated
  • Front hub
    Alloy, 36H, 100mm, 3/8" axle

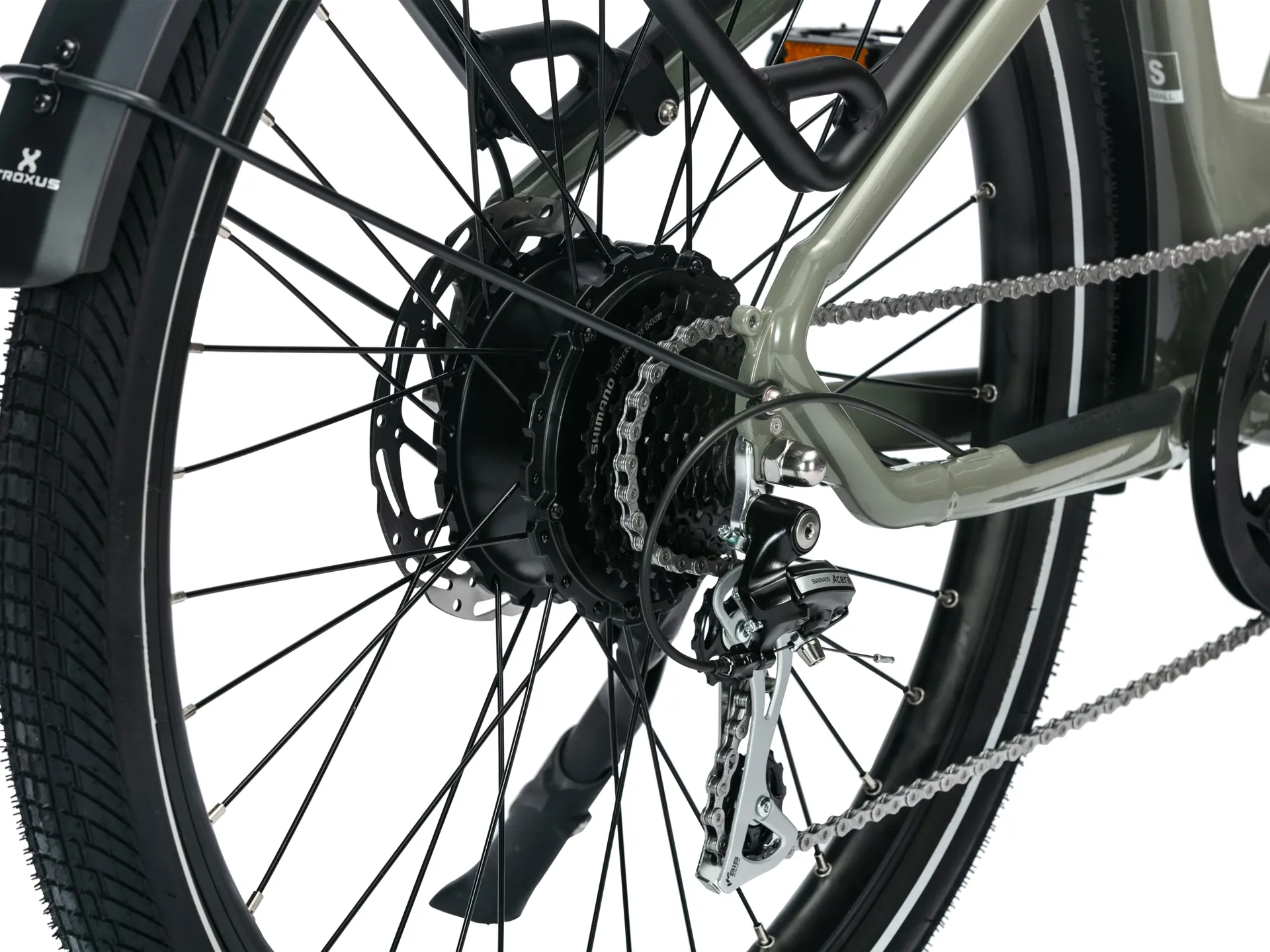

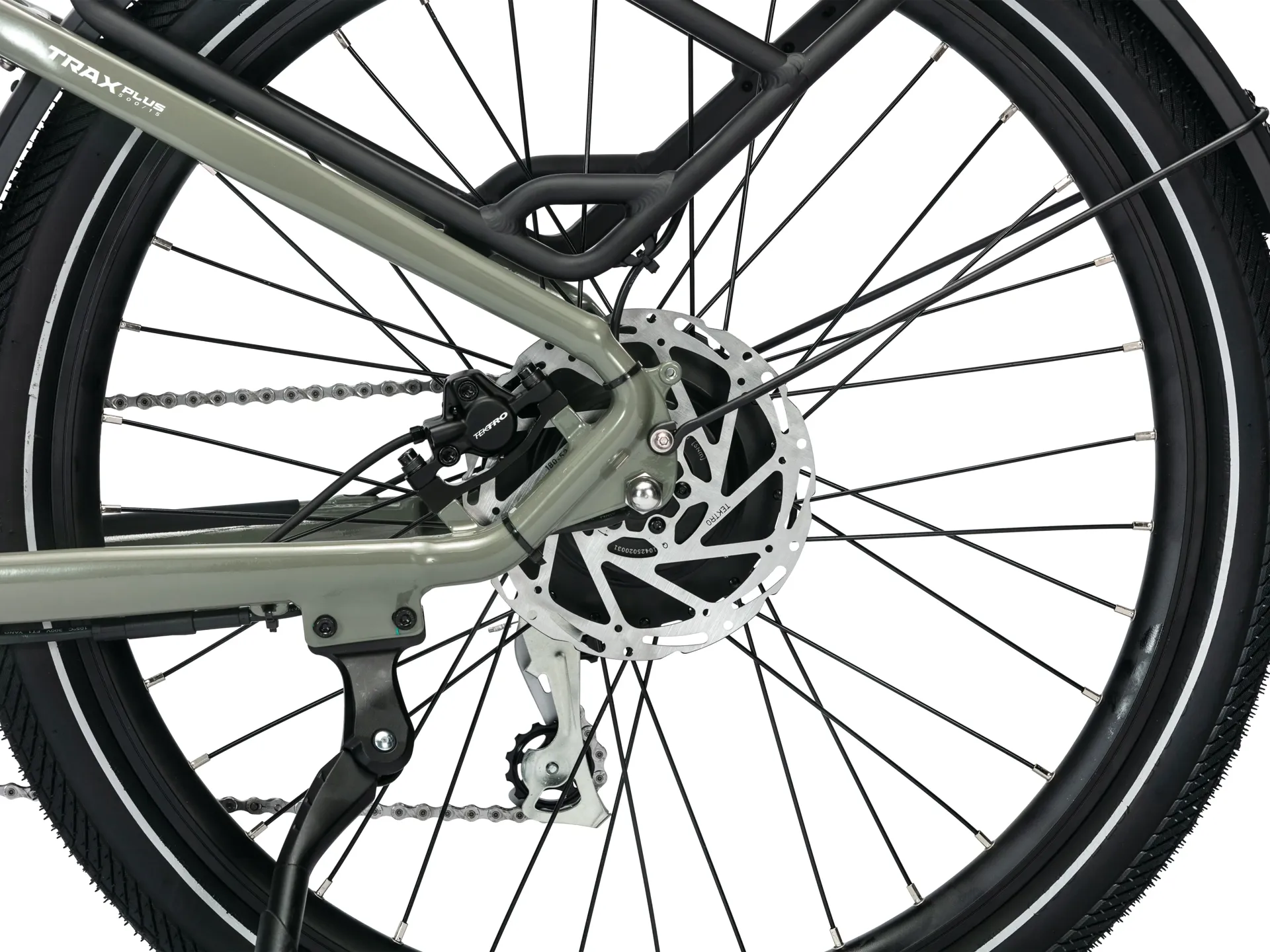

  • Rear hub
    48V 500W, 65Nm
  • Rims
    Alloy, single wall front/double wall rear, 36H, 27.5" x 2.2", eyelets
  • Spokes
    Stainless, 13G front/12G rear
  • Brakes
    Tektro® hydraulic with brake sensors
  • Rotors
    180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide
  • Seat post
    Troxus suspension, alloy 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm with quick release

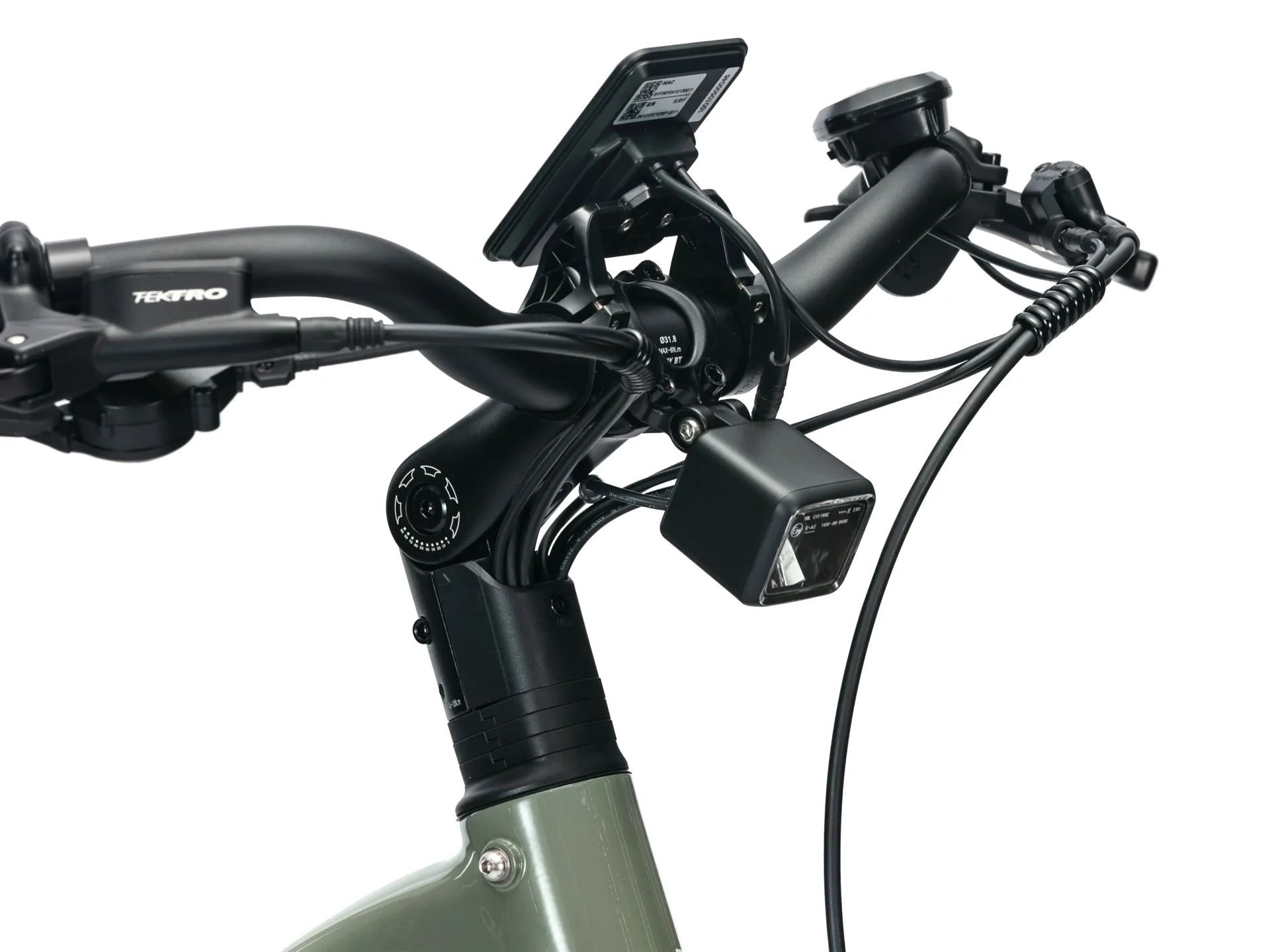

  • Stem
    Zoom® alloy, forged, adjustable, 90mm, internal cable routing
  • Handlebar
    Zoom® alloy, 31.8mm x 620mm, 35˚ backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    Alloy, 9/16" axles, with reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm, internal cable routing

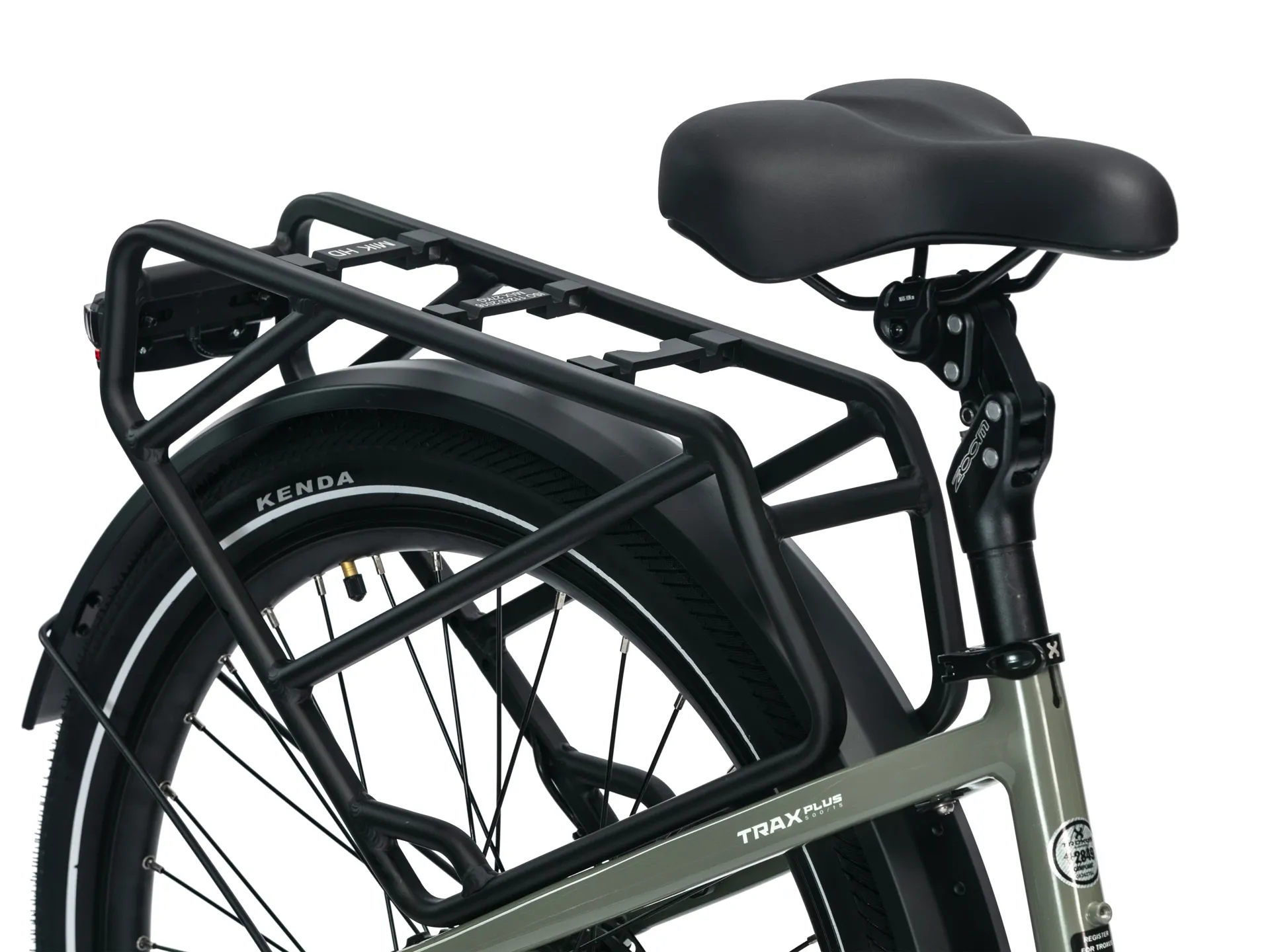

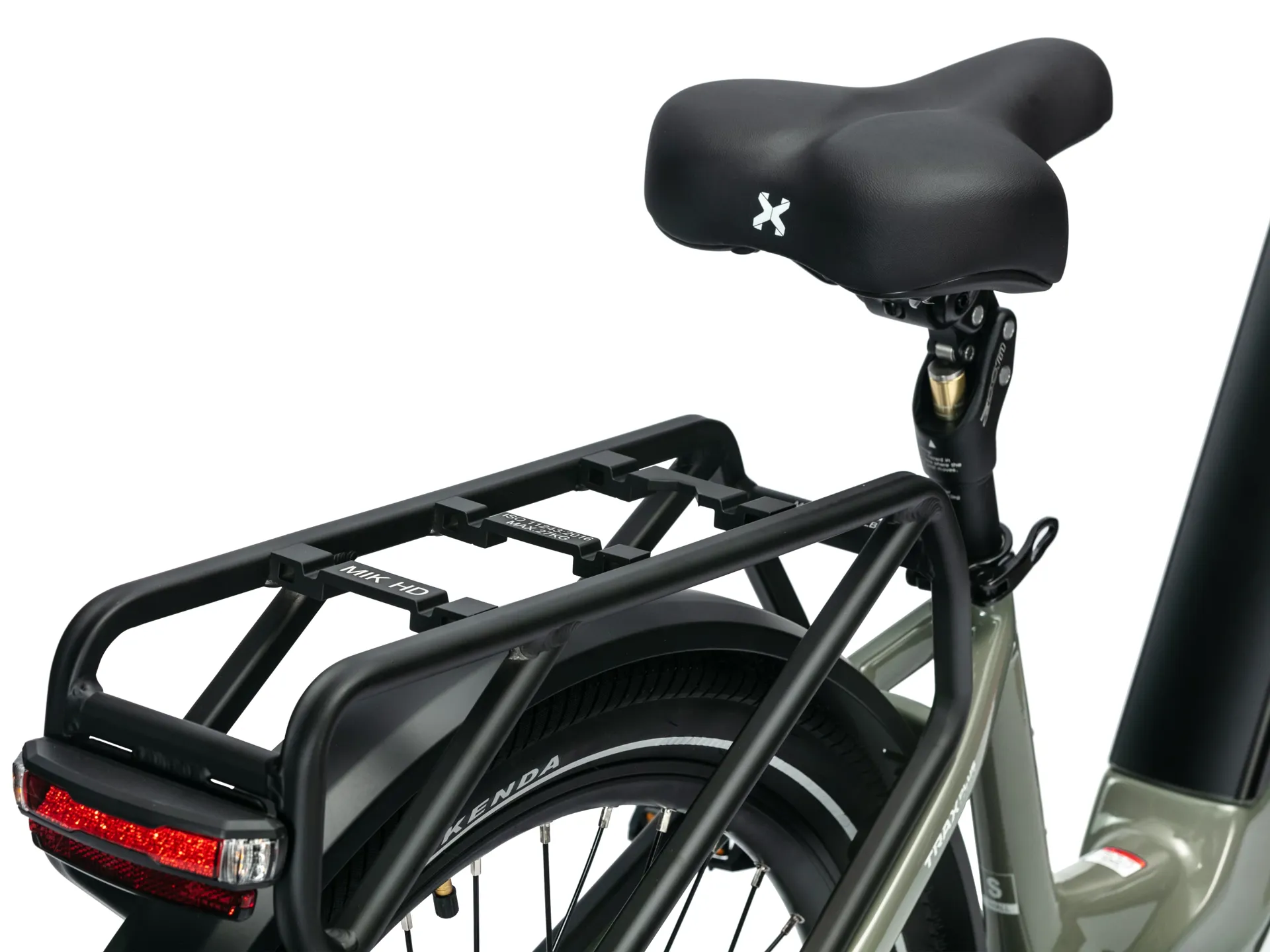

  • Rack
    Alloy rear, MIK-compatible
  • Fender
    Alloy, 27.5", full coverage
  • Kickstand
    Adjustable side kickstand
