Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset makes it more capable.
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset makes it more capable.
Giant

Giant Revolt Advanced 3 in Aquarium

$2,350.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

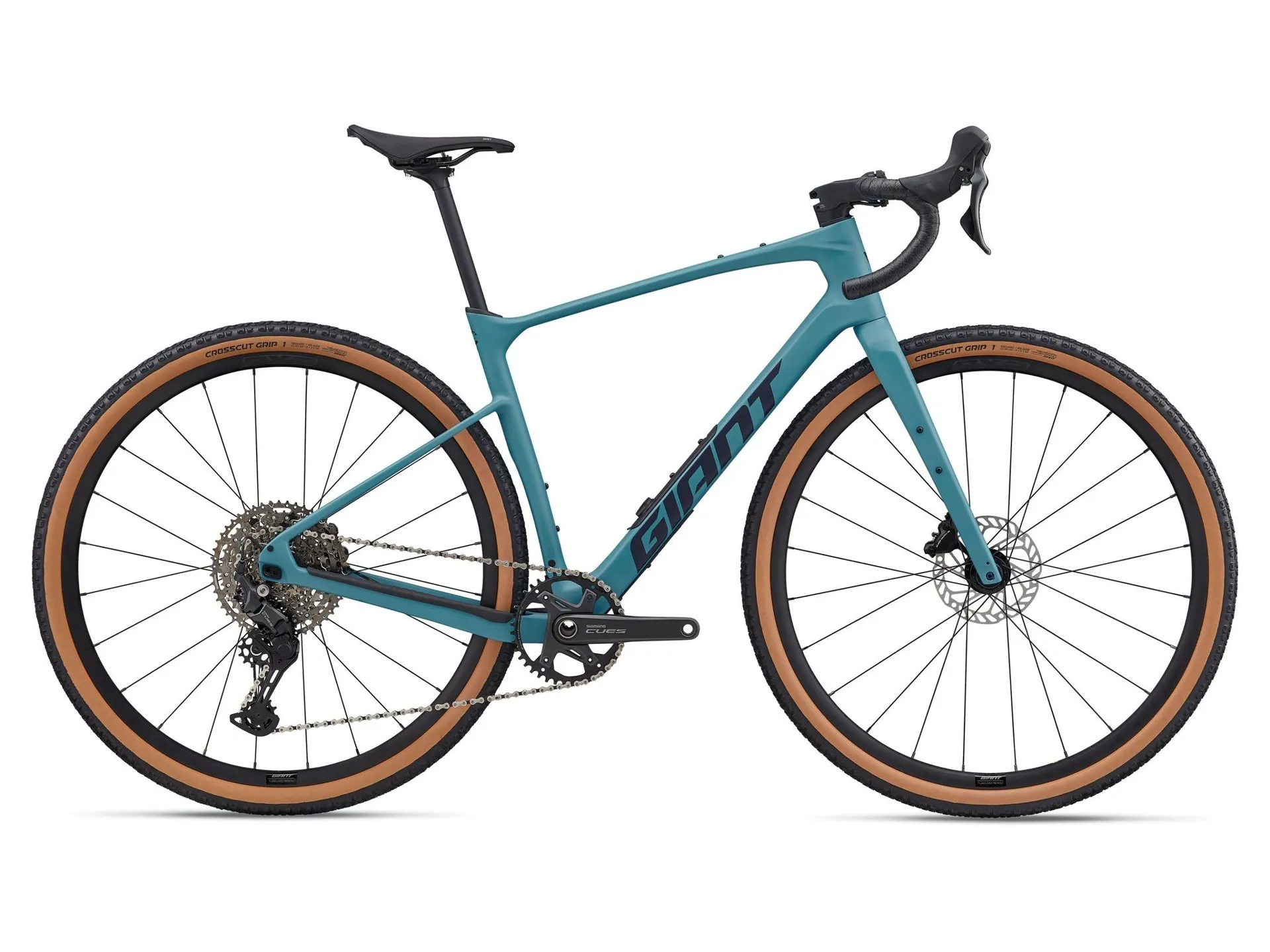

Giant Revolt Advanced 3 in Aquarium

Season:2026

Brand:Giant

Code:1080022AQUrium

Rough roads, gravel or dirt. However you choose to roll, this bike does it all.

The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever. Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Features:

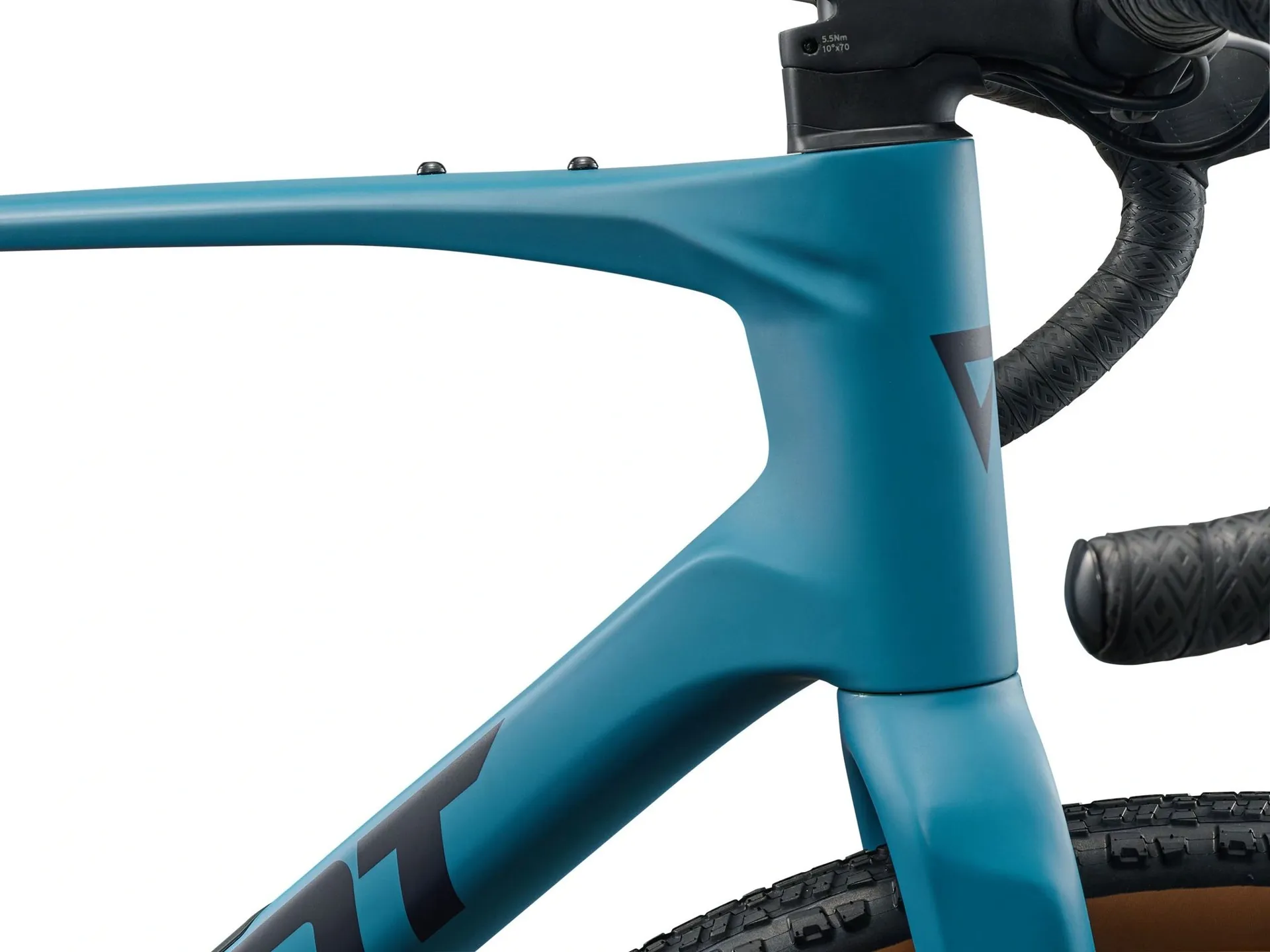

  • Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
  • OverDrive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (3.18cm (1 1/4”) lower and 2.86cm (1 1/8”) upper for road, 3.81cm (1 1/2”) lower and 2.86cm (1 1/8”) upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
  • D-Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Technical Information
  • Sizes
    XS, S, M, M/L, L, XL
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

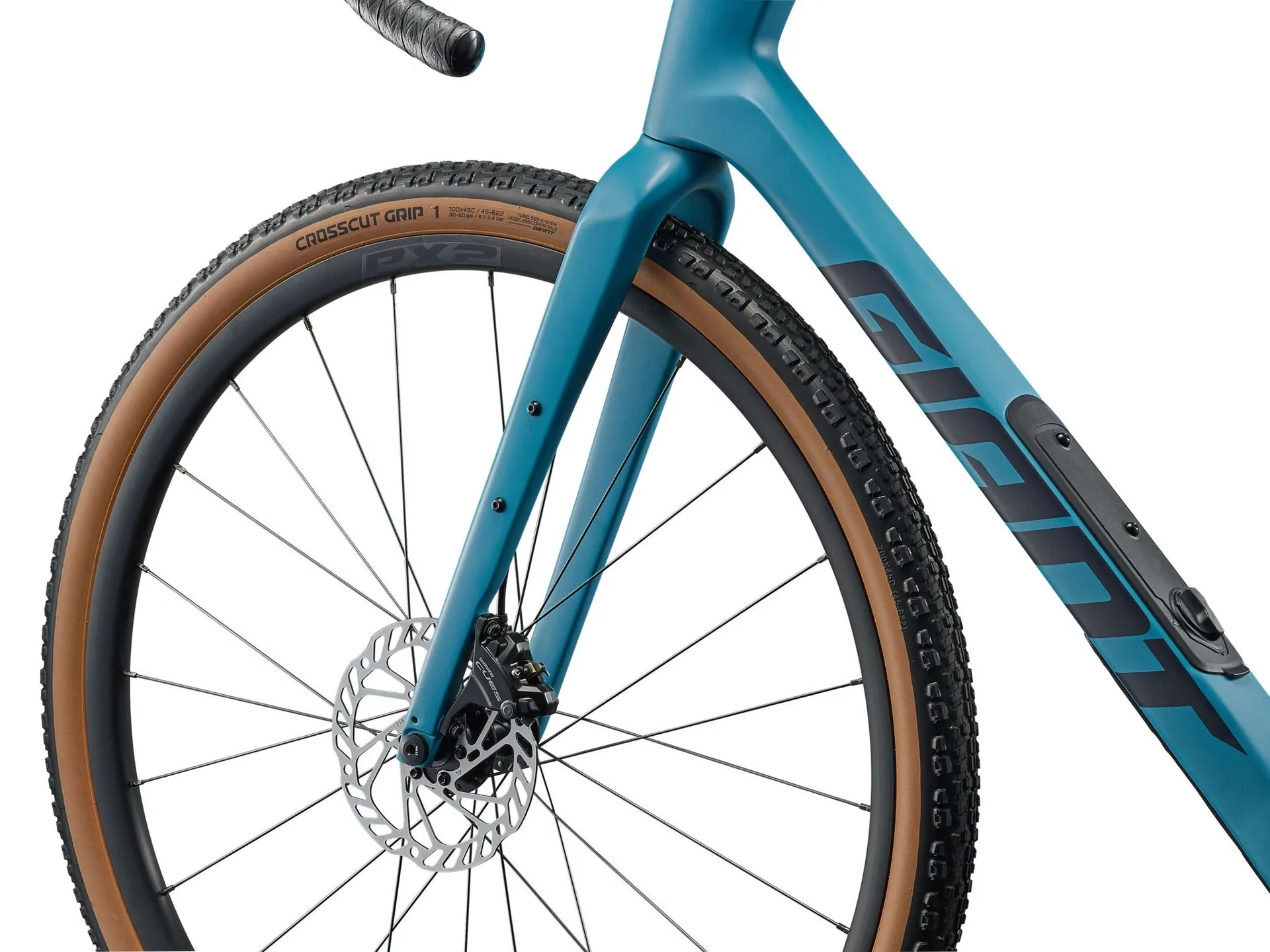

  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

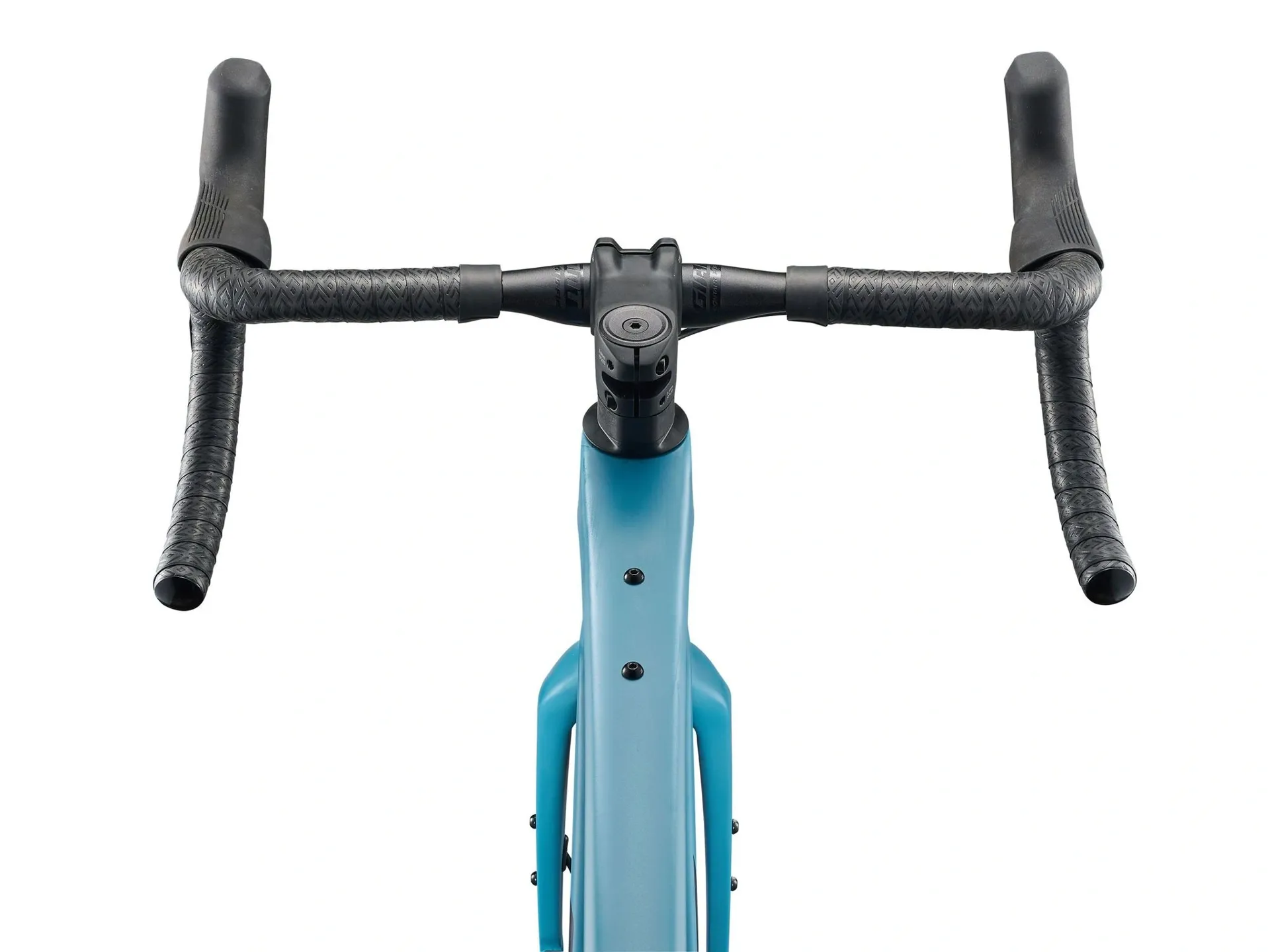

  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm (XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm)
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight, -10 degree (XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm)
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit

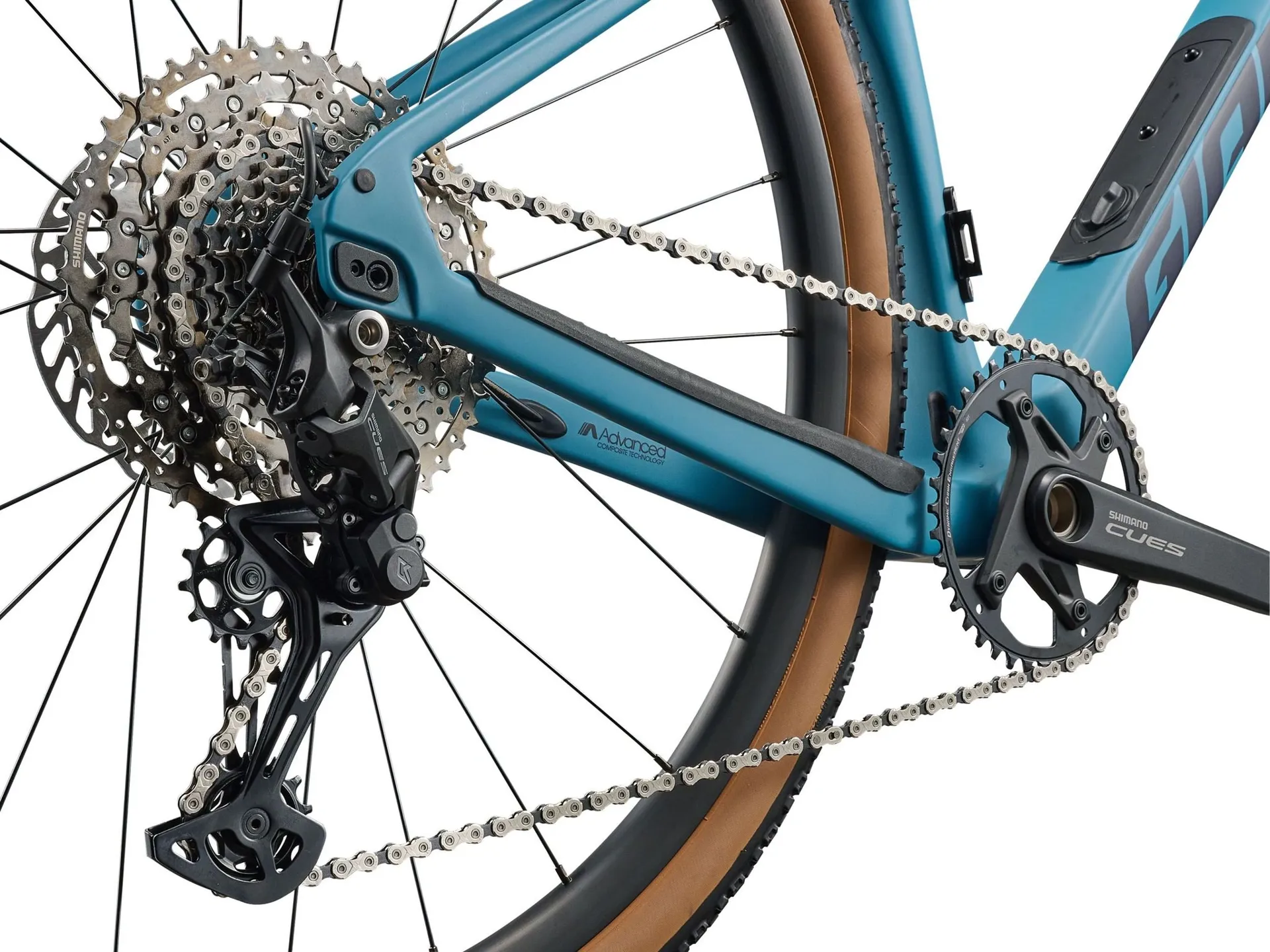

  • Shifters
    Shimano CUES U6030, 1x11
  • Rear Derailleur
    Shimano CUES U6000
  • Brakes
    Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano CUES U6030 hydraulic
  • Cassette
    Shimano CS-LG400, 11x50
  • Chain
    KMC X11
  • Crankset
    Shimano FC-U6030-1, 42t (XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm)
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Crosscut Grip, 700x45c, tubeless
  • Extras
    Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
  • Max Tire Clearance
    53mm
Sizing Information

Body Sizing Guide

Size Height (cm) Height (ft/in)
XS 155 - 166 cm 5'1" - 5'5"
S 159 - 171 cm 5'3" - 5'7"
M 169 - 181 cm 5'7" - 5'11"
ML 174 - 186 cm 5'9" - 6'1"
L 179 - 191 cm 5'10" - 6'3"
XL 189 - 200 cm 6'2" - 6'7"

Geometry Specifications

Size Seat Tube (mm) Seat Tube Angle Top Tube (mm) Head Tube (mm) Head Tube Angle Fork Rake (mm) Trail (mm) Wheelbase (mm) Chain Stay (mm) BB Drop (mm) Stack (mm) Reach (mm) Stand Over (mm) Handlebar Width (mm) Stem Length (mm) Crank Length (mm)
XS 430 74.0° 540 125 70.0° 50 78 - 82 1024 - 1034 425 - 435 80 - 81 556 381 724 - 731 420 50 170
S 450 73.5° 550 135 71.0° 50 72 - 75 1020 - 1030 425 - 435 80 - 81 570 381 740 - 747 420 60 170
M 470 73.5° 560 150 71.5° 50 68 - 72 1026 - 1036 425 - 435 80 - 81 586 387 757 - 764 440 70 172.5
ML 490 73.0° 575 165 72.0° 50 65 - 68 1031 - 1041 425 - 435 80 - 81 602 391 774 - 780 440 80 172.5
L 510 73.0° 585 180 72.0° 50 65 - 68 1041 - 1051 425 - 435 80 - 81 616 397 791 - 797 460 80 175
XL 530 73.0° 600 195 72.0° 50 65 - 68 1056 - 1066 425 - 435 80 - 81 630 407 807 - 814 460 90 175
