The Roadmachine THREE is a do-it-all endurance road bike engineered for everyone, featuring a lightweight carbon frame and Shimano 105 groupset.
The Roadmachine THREE is a do-it-all endurance road bike engineered for everyone, featuring a lightweight carbon frame and Shimano 105 groupset.
Bmc

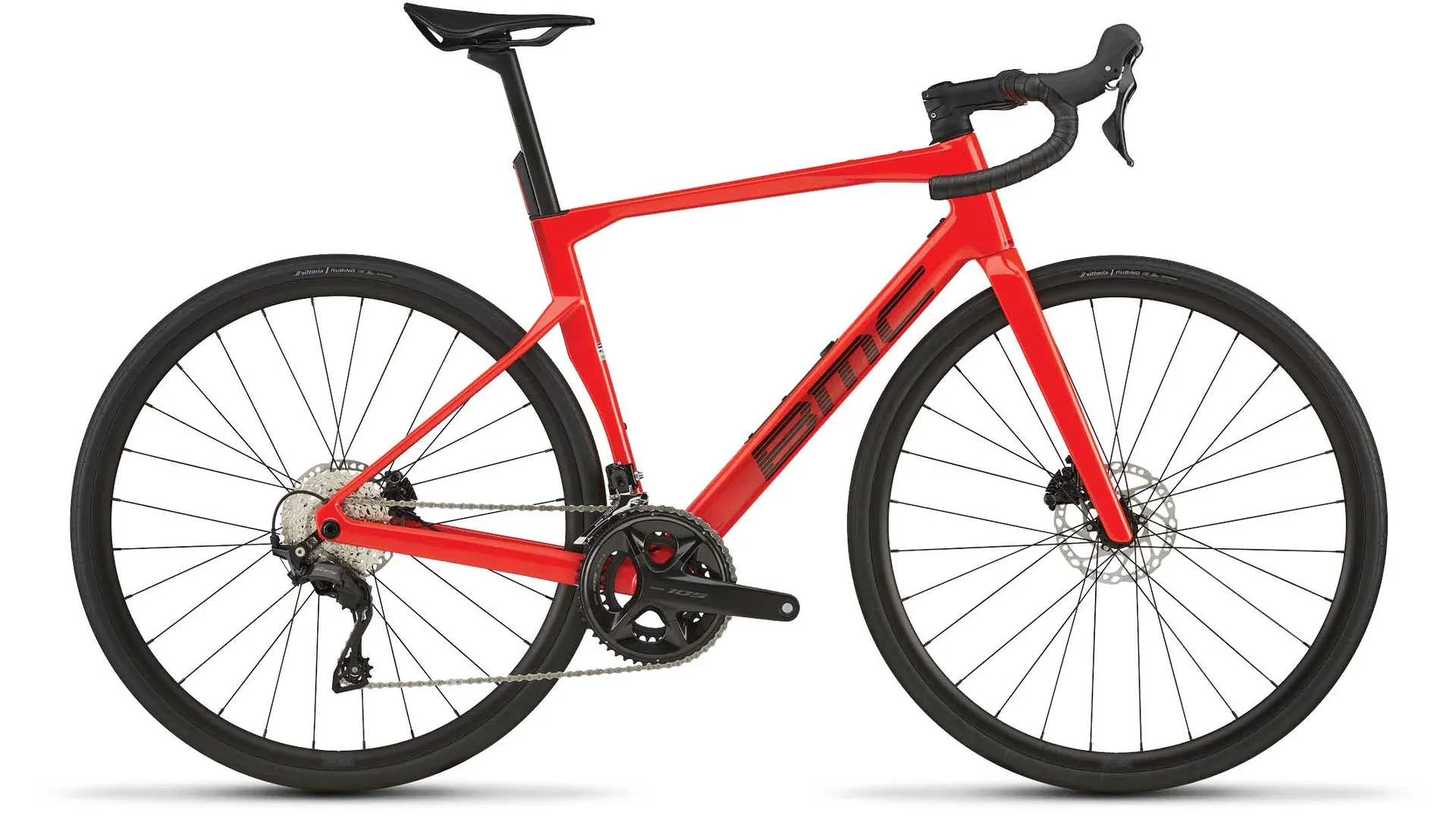

BMC Roadmachine Three Carbon Endurance Road Bike 54 in Red

$2,899.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

BMC Roadmachine Three Carbon Endurance Road Bike 54 in Red

Season:2026

Brand:Bmc

Code:30008049

All-road with race bike feeling: the Roadmachine THREE is the do-it-all bike engineered for everyone.

The Roadmachine THREE brings the essence of endurance performance to more riders. Its lightweight BMC Advanced Carbon frame is engineered to be compliant when the road is rough, responsive when precision matters, and effortlessly capable over long days. Every detail – from integrated cables to downtube storage and a rear light – ensures you and your carbon road bike are ready for unpredictable conditions. Delivering the signature Roadmachine ride quality with a more attainable specification, this model of the do-it-all road bike brings the ride quality, feel and confidence you expect from BMC in a package accessible to more riders.

A complete Shimano 105 groupset takes care of shifting and braking, keeping its performance as dependable as this bike’s handling. PRD23 wheels provide a reliable, responsive ride, while wide, fast-rolling tires smoothen out rough roads and keep momentum high on ribbon-like tarmac. Paired with BMC's integrated RSM01 stem and Endurance Alloy handlebars, you get world-class ergonomics that balance control, comfort and confidence on every ride.

BMC obsessed over every detail of the downtube to optimally integrate internal storage. Inside, there’s a purpose-designed, water-repellent pouch for on-ride carry, neatly stashed beneath a drag-reducing bottle cage. The fully integrated RSM01 stem is designed around easy stack adjustability, giving you precise control over your fit. With its low weight, high stiffness, and seamless stealth routing, it brings pro-level performance to every setup. When you encounter traffic, tunnels and changing conditions, you need a bright, ultra-compact, integrated rear light that’s USB rechargeable and easily attached/detached from the seat tube.

Take BMC's Tuned Compliance Concept vision further with wider tire clearance, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a highly responsive, comfortable and compliant ride.

Features:

  • Lightweight BMC Advanced Carbon frame
  • Integrated downtube storage with water-repellent pouch
  • RSM01 integrated stem for easy stack adjustability
  • USB rechargeable integrated rear light
  • TCC Endurance technology for responsive and compliant riding
  • Shimano 105 groupset
  • PRD23 wheels
Technical Information
  • Frame
    Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Full Mount - UDH | 12 x 142mm Thru-Axle
  • Fork
    Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
  • Stem
    BMC RSM 01 | Integrated Cockpit System Technology
  • Handlebar
    BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare
  • Grips
    BMC Tacky 3mm
  • Seatpost
    Roadmachine Carbon D-Shaped Seatpost | 0mm Offset Size 47-51 and 15mm Offset Size 54-61 | D-Fender Compatible
  • Saddle
    Selle Italia Model X Greentech | FeC Alloy Rail | 145mm
  • Crankset
    SHIMANO 105 (FC-R7100)
  • Chainrings
    50-34T
  • Cassette
    SHIMANO (CS-HG710)
  • Cassette Size
    11-36T
  • Chain
    SHIMANO CN-M6100
  • Front Derailleur
    SHIMANO 105 (FD-R7100)
  • Rear Derailleur
    SHIMANO 105 (RD-R7100)
  • Shifters
    SHIMANO 105 (ST-R7120)
  • Gears
    2 x 12
  • Bottom Bracket
    SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
  • Brake Levers / Calipers
    SHIMANO 105 (BR-R7170)
  • Rotors
    SHIMANO SM-RT64 | Centerlock
  • Rotor Size (F/R)
    160 / 160mm
  • Rims
    PRD23 | 23mm
  • Hubs (F/R)
    SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock | 28H
  • Tires
    Vittoria Rubino V | Tube type | 32mm
  • Tubeless Information
    Non-Tubeless Rims | Tubeless Clincher Tire
  • In the Box
    Integrated Rear Light 25 | Storage Pouch
  • Tire Clearance
    Up to 40mm measured (frameset clearance) but limited to 34mm measured by the front derailleur
  • Weight without Pedals
    9.2kg (Size 54)
  • ASTM Classification
    Level 2
  • System Weight Limit
    110kg
  • Rider Height
    Size 47: <160, Size 51: 158-174, Size 54: 172-180, Size 56: 178-186, Size 58: 184-192, Size 61: >190
  • Reach
    Size 47: 370, Size 51: 379, Size 54: 383, Size 56: 388, Size 58: 393, Size 61: 398
  • Stack
    Size 47: 525, Size 51: 550, Size 54: 570, Size 56: 595, Size 58: 620, Size 61: 645
  • Bar Drop
    125mm
  • Bar Reach
    70mm
  • Bar Width
    Size 47/51/54: 390/438, Size 56/58: 410/458, Size 61: 430/478
  • BB Drop
    75mm
  • Crank Length
    Size 47: 165, Size 51/54/56: 170, Size 58/61: 172.5
  • Fork Length
    379mm
  • Fork Rake
    Size 47/51: 50, Size 54/56/58/61: 45
  • Front Center
    Size 47: 579, Size 51: 596, Size 54: 594, Size 56: 607, Size 58: 620, Size 61: 633
  • Head Tube
    Size 47: 112, Size 51: 138, Size 54: 154, Size 56: 181, Size 58: 207, Size 61: 233
  • Head Tube Angle
    Size 47/51: 71.4°, Size 54/56/58/61: 72.2°
  • Rear Center
    415mm
  • Seat Angle
    74.2°
  • Seat Tube
    Size 47: 414, Size 51: 461, Size 54: 488, Size 56: 508, Size 58: 529, Size 61: 550
  • Seatpost Length
    Size 47: 310, Size 51/54/56: 360, Size 58/61: 400
  • Seatpost Offset
    Size 47/51: 0, Size 54/56/58/61: 15
  • Standover Height
    Size 47: 726, Size 51: 762, Size 54: 786, Size 56: 807, Size 58: 828, Size 61: 849
  • Stem Angle
    -8°
  • Stem Length
    Size 47: 70, Size 51: 80, Size 54: 90, Size 56/58: 100, Size 61: 110
  • Top Tube
    Size 47: 520, Size 51: 537, Size 54: 546, Size 56: 559, Size 58: 571, Size 61: 581
  • Trail
    63mm
  • Wheelbase
    Size 47: 982, Size 51: 1000, Size 54: 997, Size 56: 1010, Size 58: 1023, Size 61: 1036
Sizing Information

Geometry and Sizing

Size Rider Height (cm) Reach (mm) Stack (mm) Bar Drop (mm) Bar Reach (mm) Bar Width (mm)
47 <160 370 525 125 70 390/438
51 158-174 379 550 125 70 390/438
54 172-180 383 570 125 70 390/438
56 178-186 388 595 125 70 410/458
58 184-192 393 620 125 70 410/458
61 >190 398 645 125 70 430/478

Size BB Drop (mm) Crank Length (mm) Fork Length (mm) Fork Rake (mm) Front Center (mm) Head Tube (mm) Head Tube Angle
47 75 165 379 50 579 112 71.4°
51 75 170 379 50 596 138 71.4°
54 75 170 379 45 594 154 72.2°
56 75 170 379 45 607 181 72.2°
58 75 172.5 379 45 620 207 72.2°
61 75 172.5 379 45 633 233 72.2°

Size Rear Center (mm) Seat Angle Seat Tube (mm) Seatpost Length (mm) Seatpost Offset (mm) Standover Height (mm)
47 415 74.2° 414 310 0 726
51 415 74.2° 461 360 0 762
54 415 74.2° 488 360 15 786
56 415 74.2° 508 360 15 807
58 415 74.2° 529 400 15 828
61 415 74.2° 550 400 15 849

Size Stem Angle Stem Length (mm) Top Tube (mm) Trail (mm) Wheelbase (mm)
47 -8° 70 520 63 982
51 -8° 80 537 63 1000
54 -8° 90 546 63 997
56 -8° 100 559 63 1010
58 -8° 100 571 63 1023
61 -8° 110 581 63 1036

Additional Specifications

  • Tire Clearance: Up to 40mm (frameset clearance), limited to 34mm by the front derailleur.
  • Weight: 9.2kg (Size 54, without pedals).
  • System Weight Limit: 110kg.
  • ASTM Classification: Level 2.
